Fuel Injection System

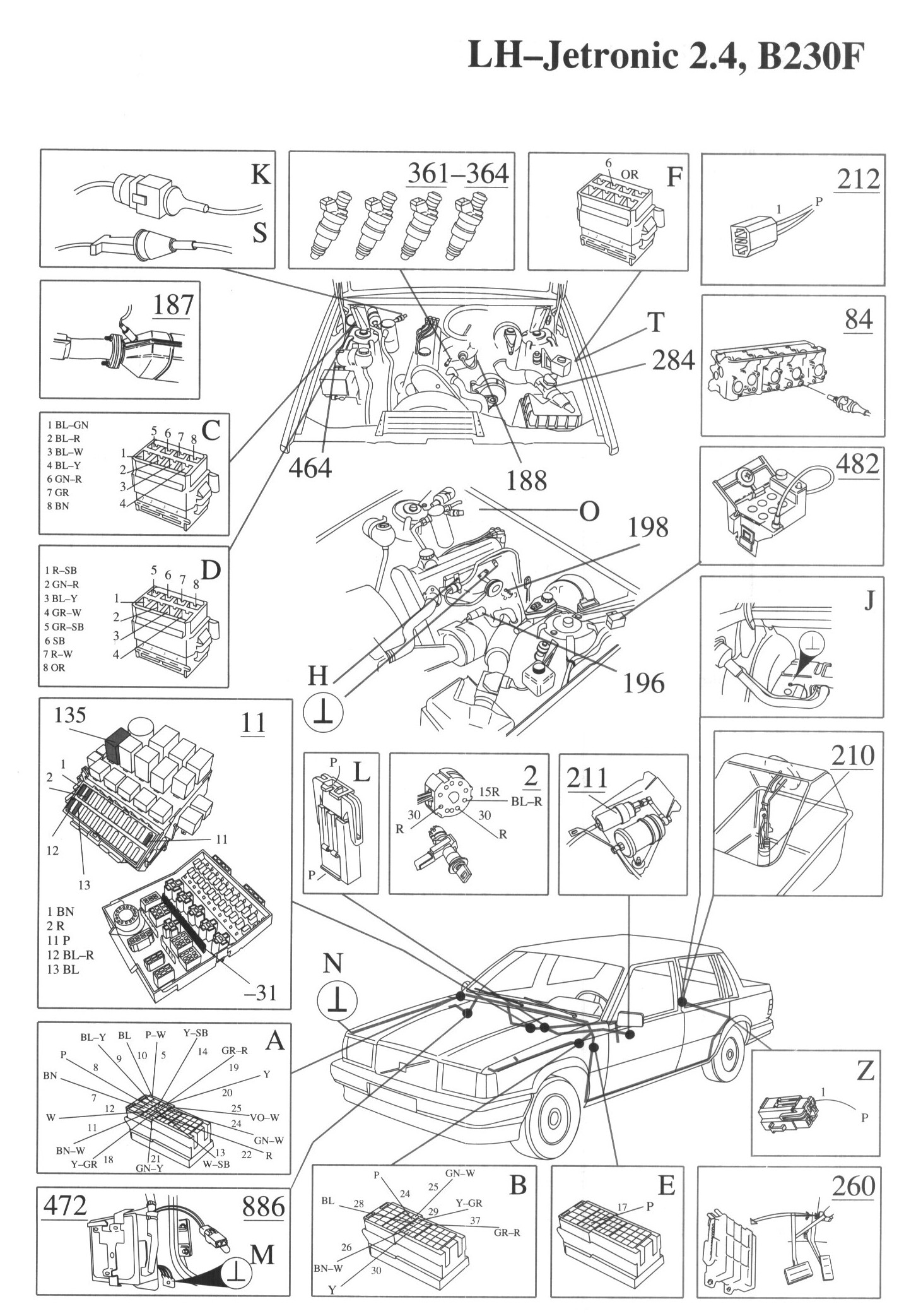

Component / Connector Views:

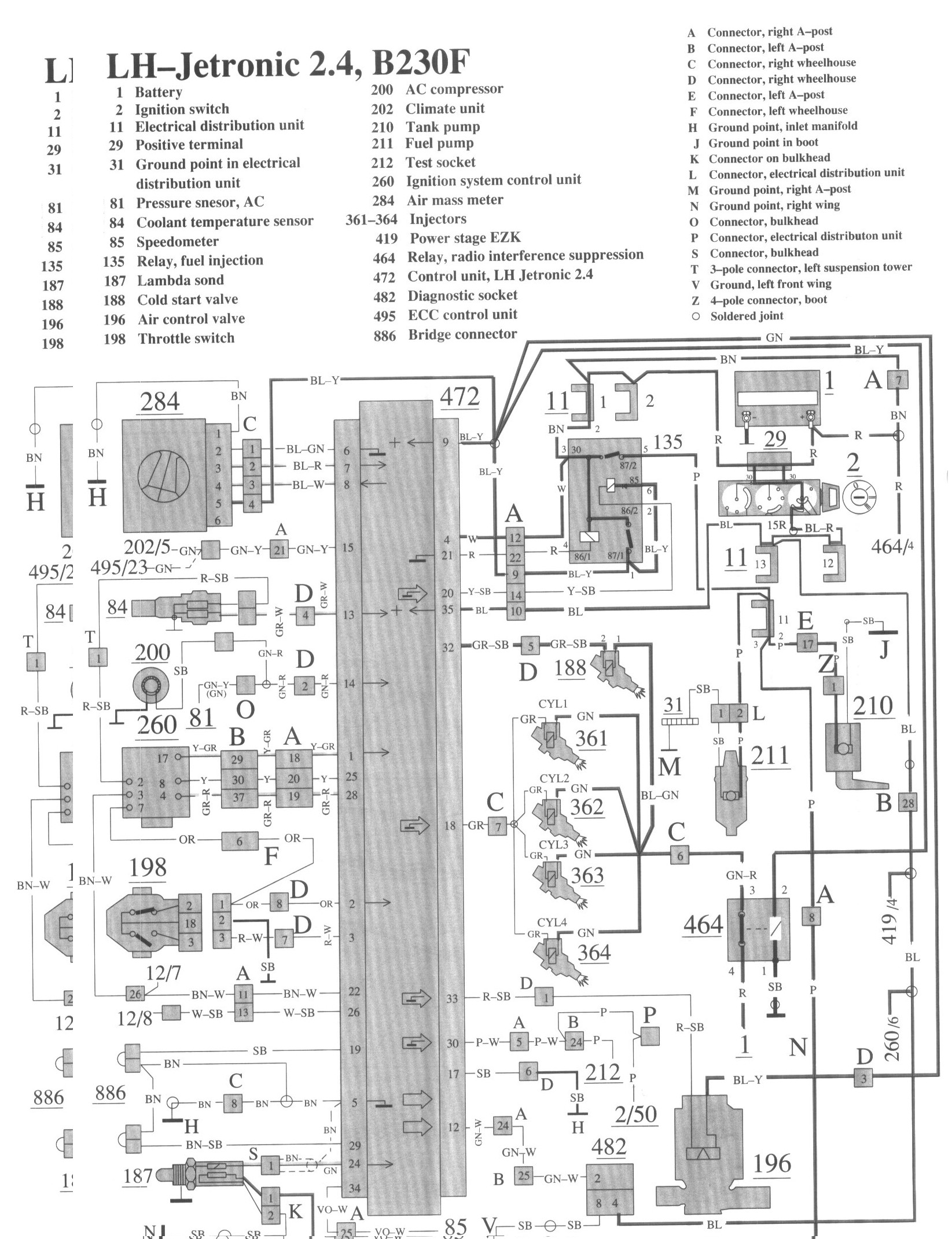

Wiring Diagrams:

LEGEND
1 Battery
2 Ignition switch

11 Electrical distribution unit
29 Positive terminal
31 Ground point in electrical distribution unit
81 Pressure sensor, AC
84 Coolant temperature sensor
85 Speedometer

135 Relay, fuel injection
187 Lambda sond
188 Cold start valve
196 Air control valve
198 Throttle switch
200 AC compressor
202 Climate unit
210 Tank pump
211 Fuel pump
212 Test socket
260 Ignition system control unit
284 Air mass meter
361-364 Injectors
419 Power stage EZK
464 Relay, radio interference suppression
472 Control unit, LH Jetronic 2.4
482 Diagnostic socket
495 ECC control unit
886 Bridge connector

A Connector, right A-post
B Connector, left A-post
C Connector, right wheelhouse
D Connector, right wheelhouse
E Connector, left A-post
F Connector, left wheelhouse
H Ground point, inlet manifold
J Ground point in boot
K Connector on bulkhead
L Connector, electrical distribution unit
M Ground point, right A-post
N Ground point, right wing
O Connector, bulkhead
P Connector, electrical distribution unit
S Connector, bulkhead
T 3-pole connector, left suspension tower
V Ground, left front wing
Z 4-pole connector, boot
