Idle Control System (Automatic Transmission)

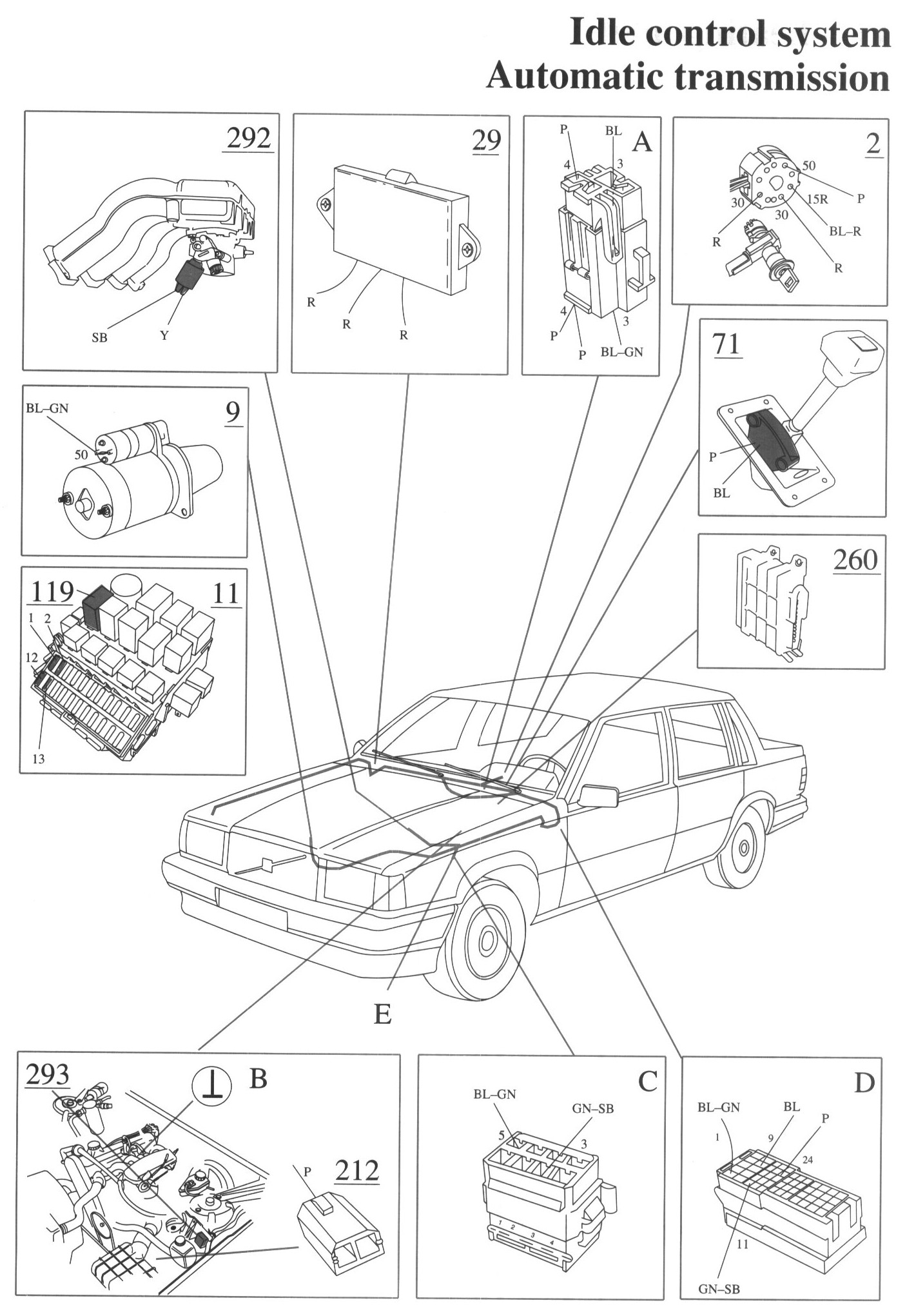

Component / Connector Views:

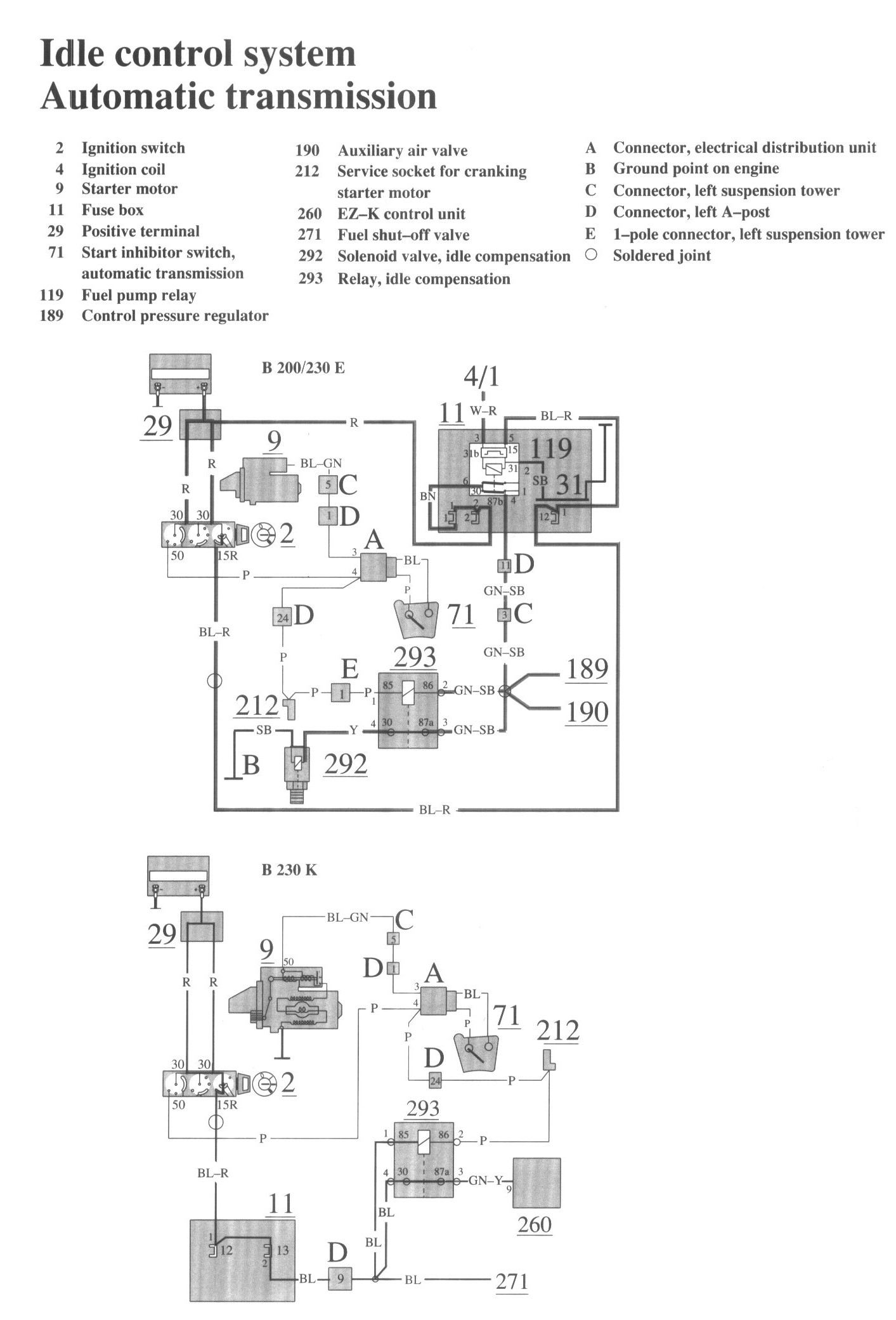

Wiring Diagrams:




LEGEND
2 Ignition switch
4 Ignition coil
9 Starter motor

11 Fusebox
29 Positive terminal
71 Start inhibitor switch, automatic transmission

119 Fuel pump relay
189 Control pressure regulator
190 Auxiliary air valve
212 Service socket for cranking starter motor
260 EZ-K control unit
271 Fuel shut-off valve
292 Solenoid valve, idle compensation
293 Relay, idle compensation

A Connector, electrical distribution unit
B Ground point on engine
C Connector, left suspension tower
D Connector, left A-post
E 1-pole connector, left suspension tower
