Ignition System

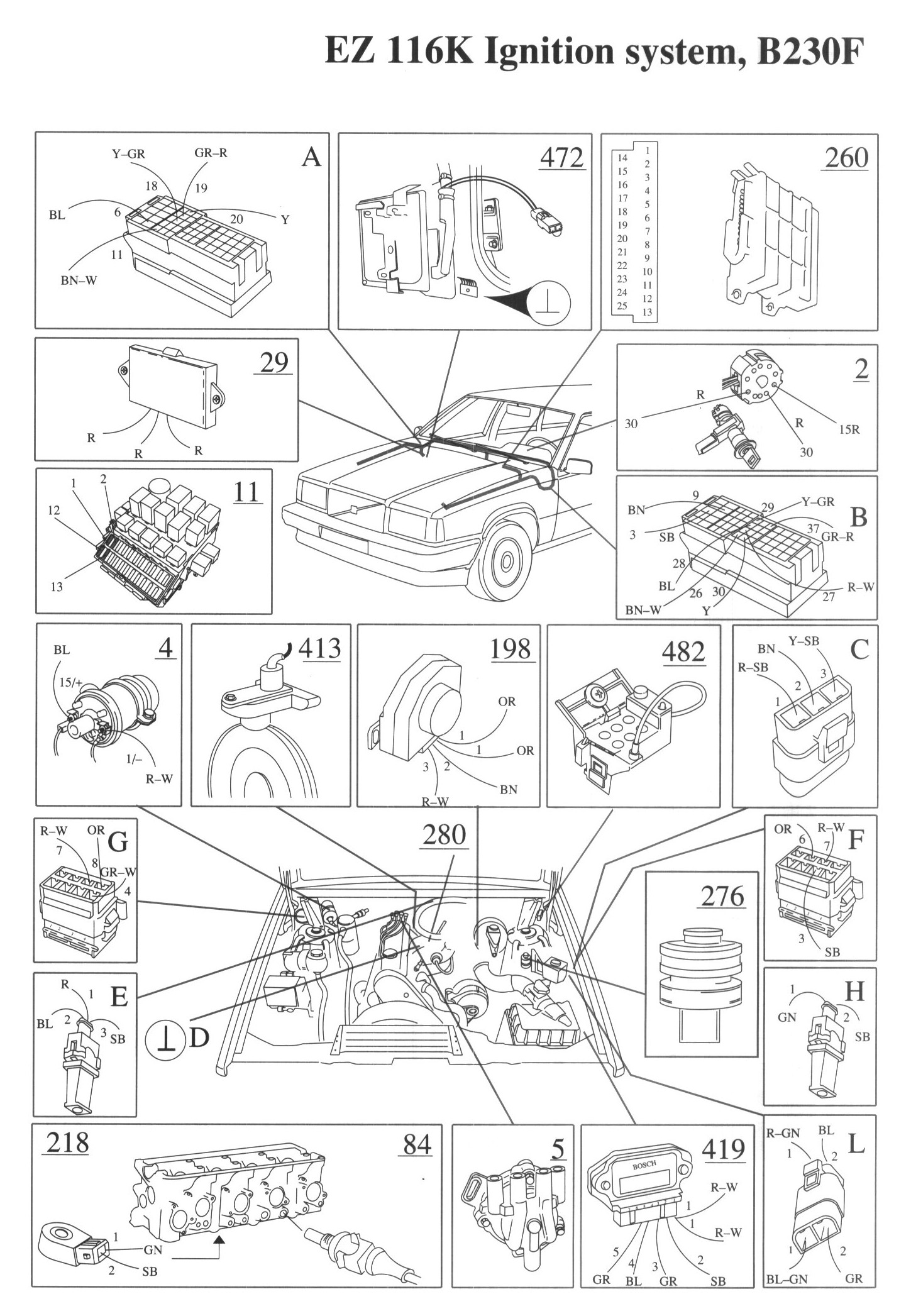

Component / Connector Views:

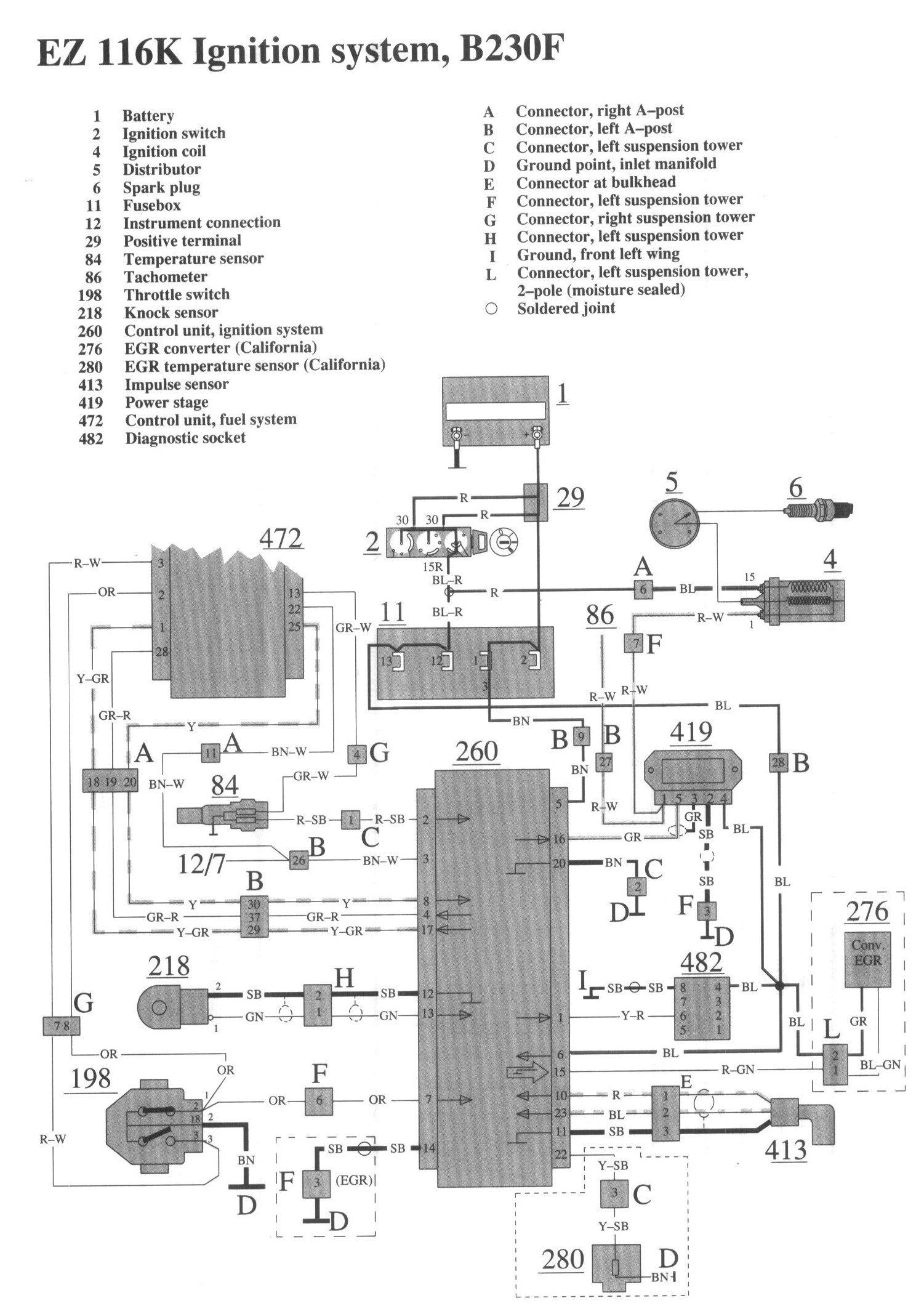

Wiring Diagrams:

LEGEND
1 Battery
2 Ignition switch
4 Ignition coil
5 Distributor
6 Spark plug

11 Fusebox
12 Instrument connection
29 Positive terminal
84 Temperature sensor
86 Tachometer

198 Throttle switch
218 Knock sensor
260 Control unit, ignition system
276 EGR converter (California)
280 EGR temperature sensor (California)
413 Impulse sensor
419 Power stage
472 Control unit, fuel system
482 Diagnostic socket

A Connector, right A-post
B Connector, left A-post
C Connector, left suspension tower
D Ground point, inlet manifold
E Connector at bulkhead
F Connector, left suspension tower
G Connector, right suspension tower
H Connector, left suspension tower
I Ground, front left wing
L Connector, left suspension tower, 2-pole (moisture sealed)
