Exhaust Gas Recirculation: Locations

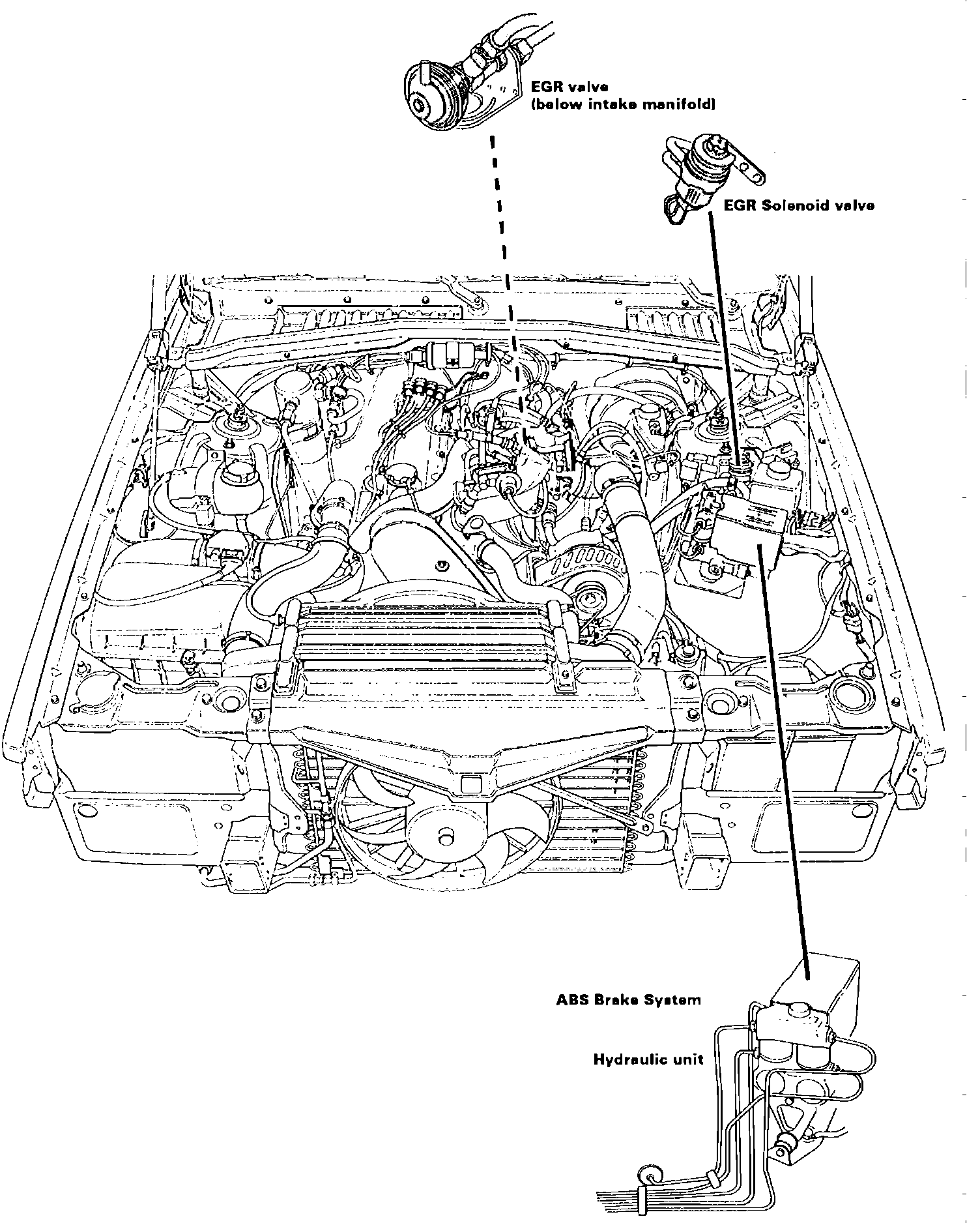

Fig. 179 E.G.R. COMPONENT LOCATION:

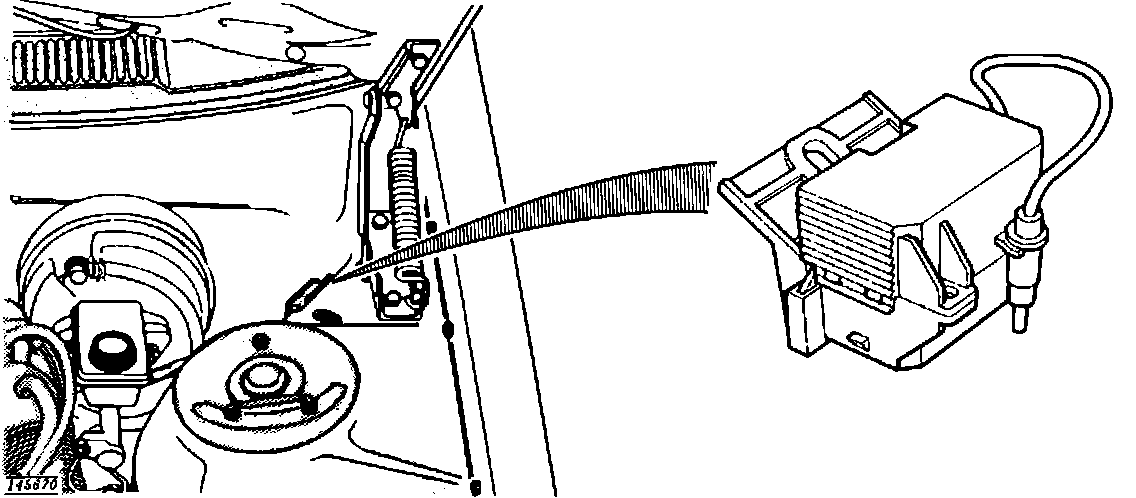

Fig. 178 SELF DIAGNOSTIC UNIT LOCATION:

E.G.R. valve and solenoid valve location see Fig. 179.
Self diagnostic unit location see Fig. 178.
The temperature sensor is mounted on the E.G.R. upper pipe, between the intake manifold and the E.G.R. valve.
The ignition system control unit is located in the passenger compartment, on the right side of the firewall.
