Running Test Fault Message Table
S. RUNNING TEST FAULT MESSAGE TABLENOTE:The wiring diagrams in sections T and U apply to the 240 Y/M 92. Unless otherwise indicated the diagram applies to all engine versions.

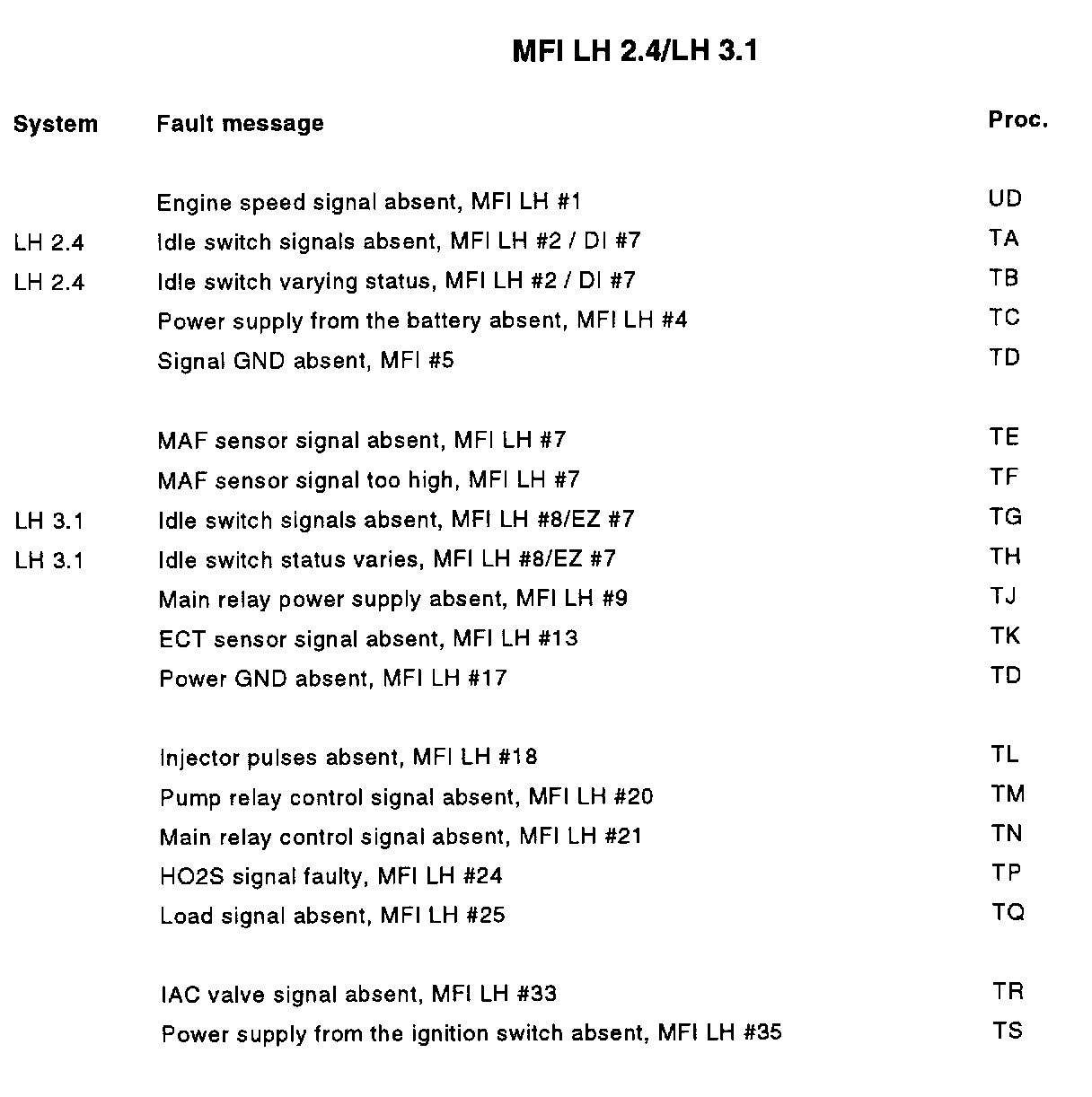

Unless otherwise indicated in the system column, fault messages apply to both LH 2.4 and LH 3.1.
Fault Messages TA To TS Plus UD:

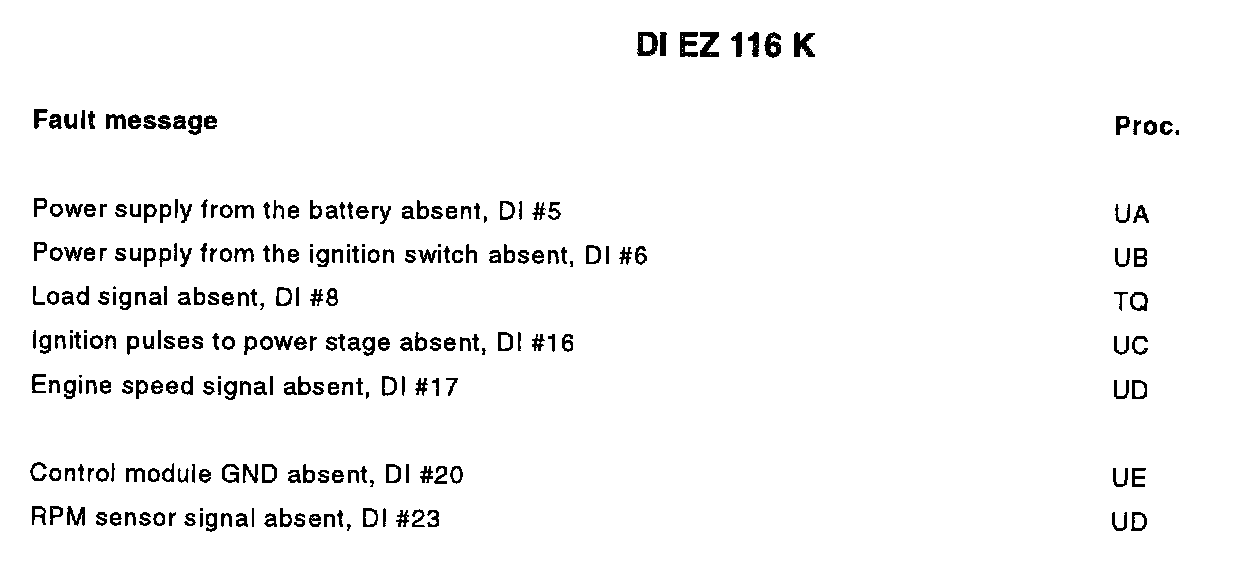

DI EZ 116 K:

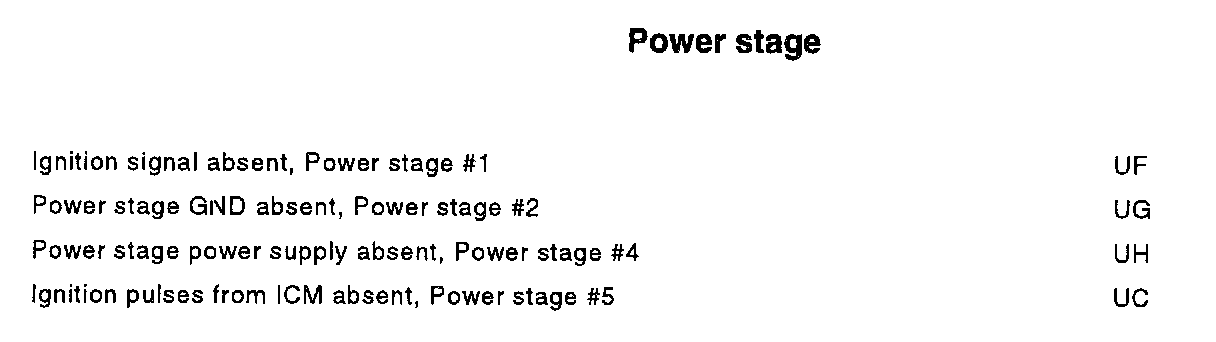

Power Stage:
