Ignition Switch: Locations

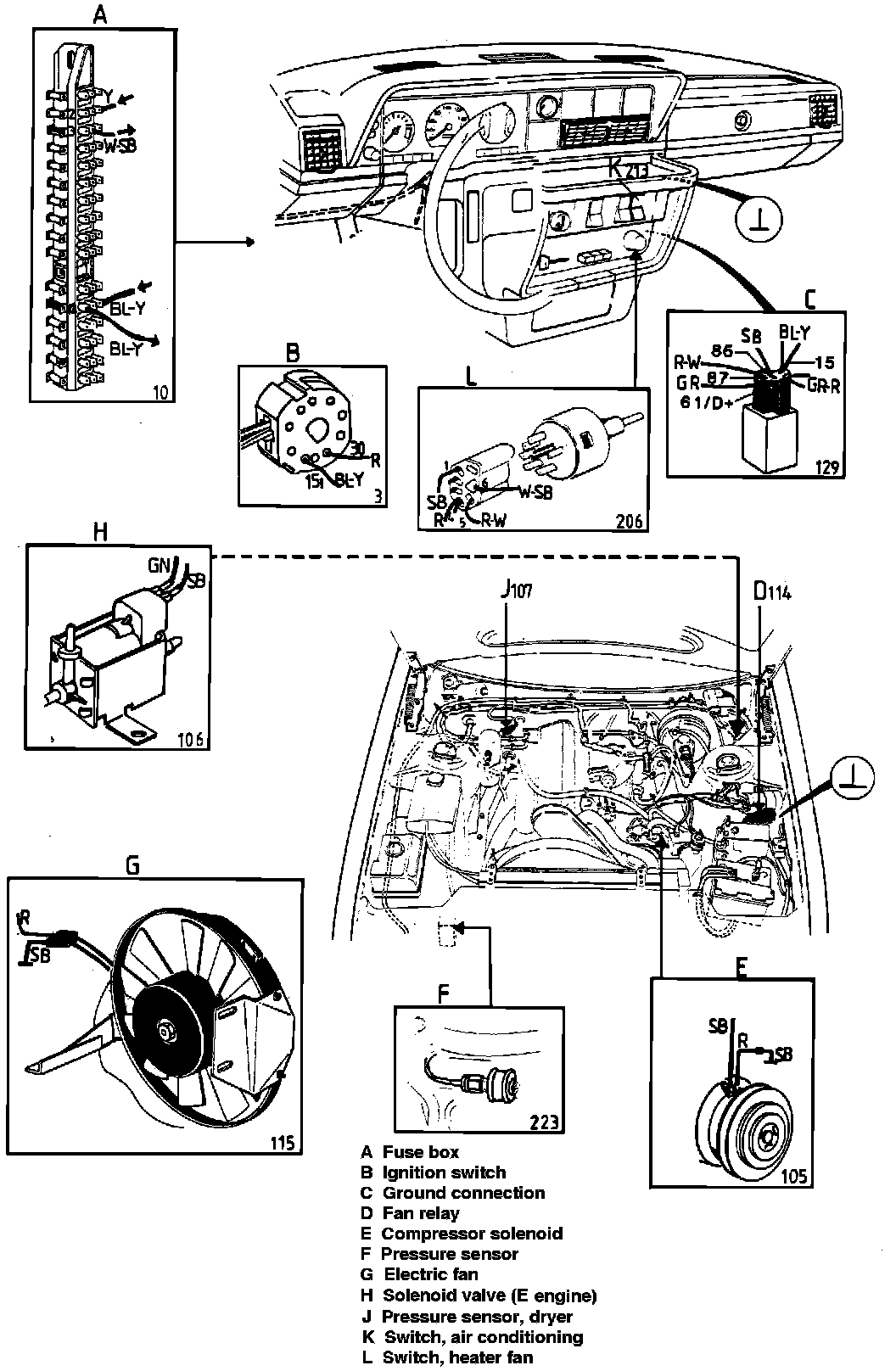

A/C System Components:

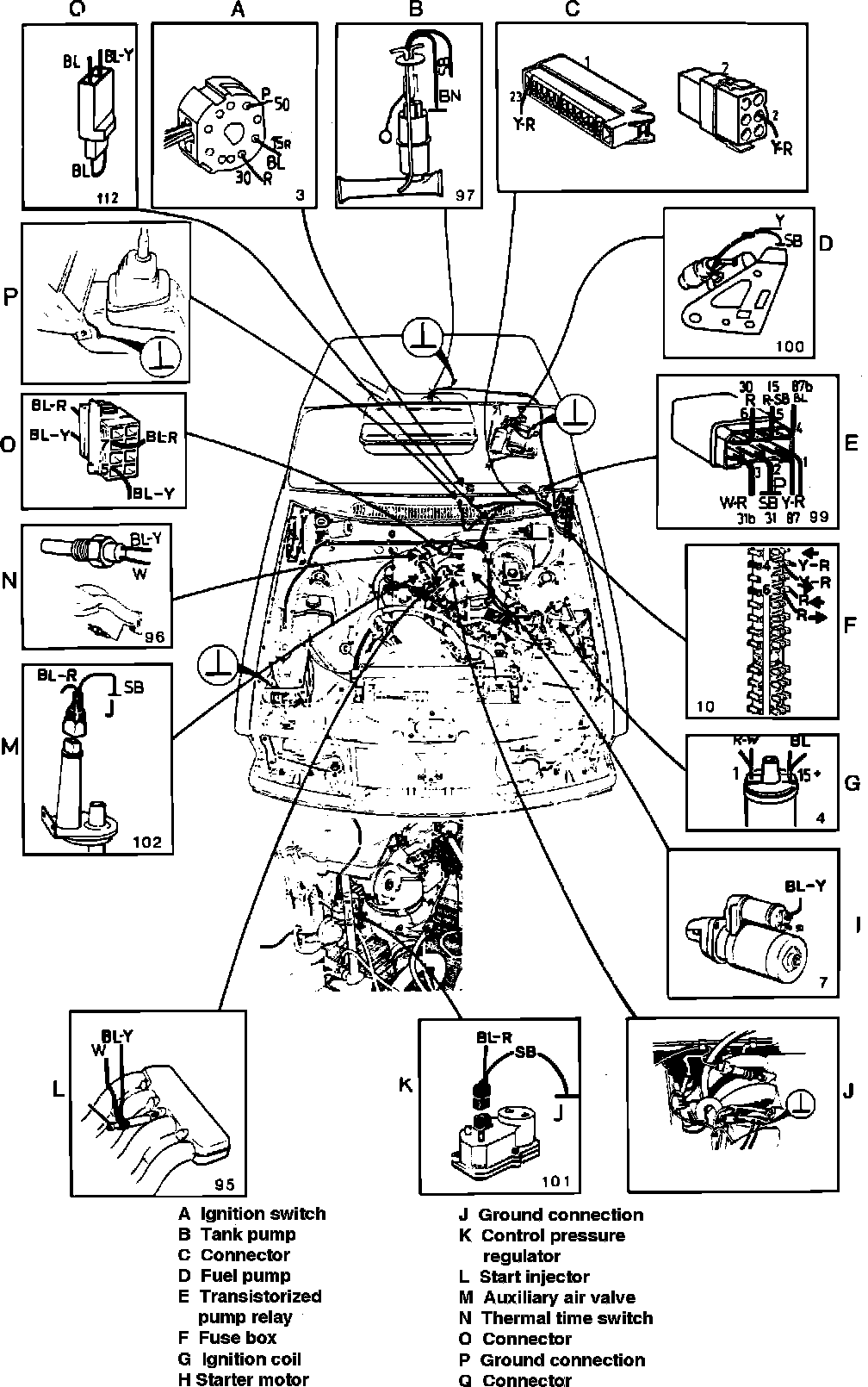

CI Fuel Injection System Components:

RH Side Of Steering Column

RH Side Of Steering Column

Applicable to: B230F Engine

RH Side Of Steering Column

Applicable to: Diesel Engine

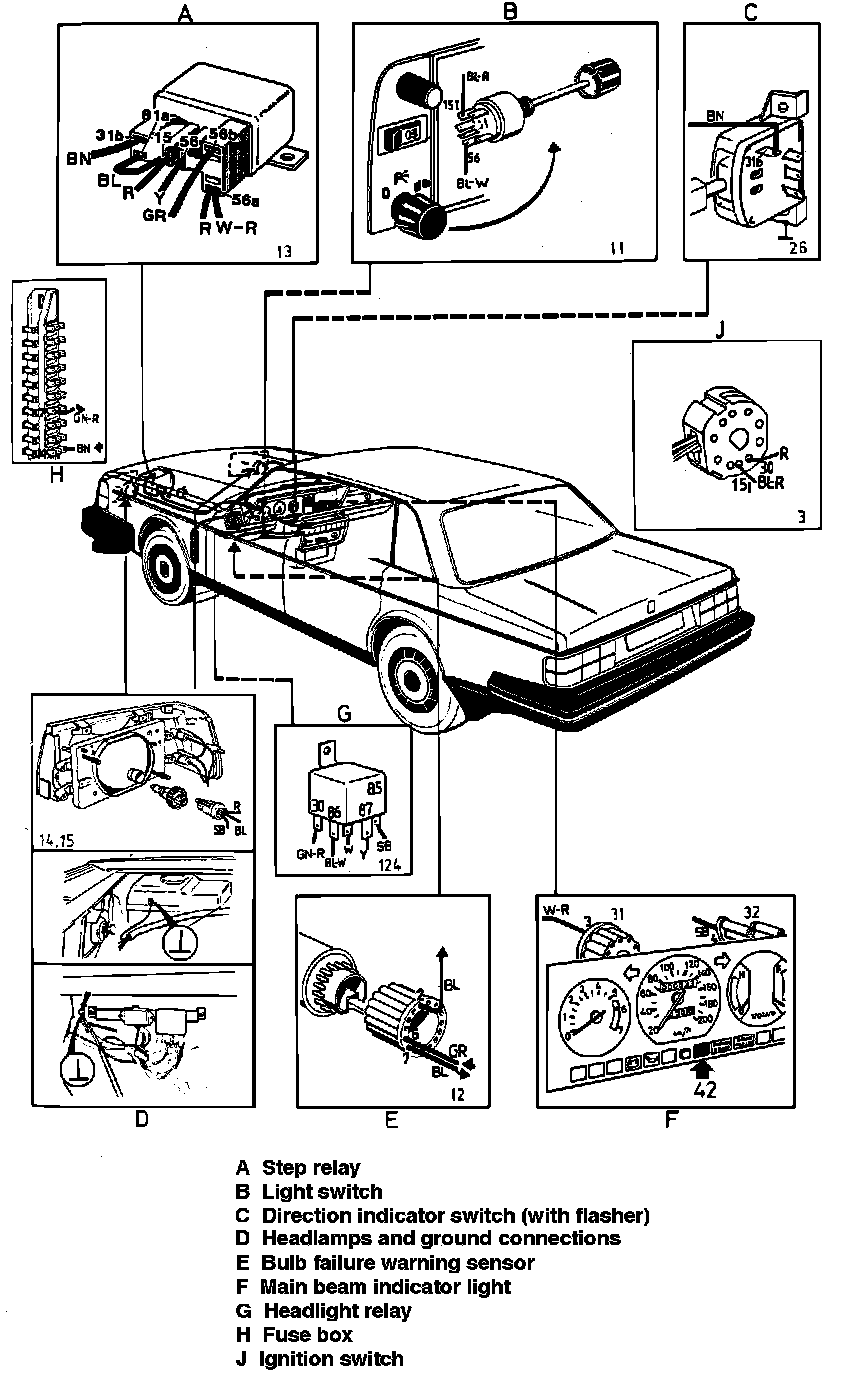

High/Low Beam System Components:

RH Side Of Steering Column

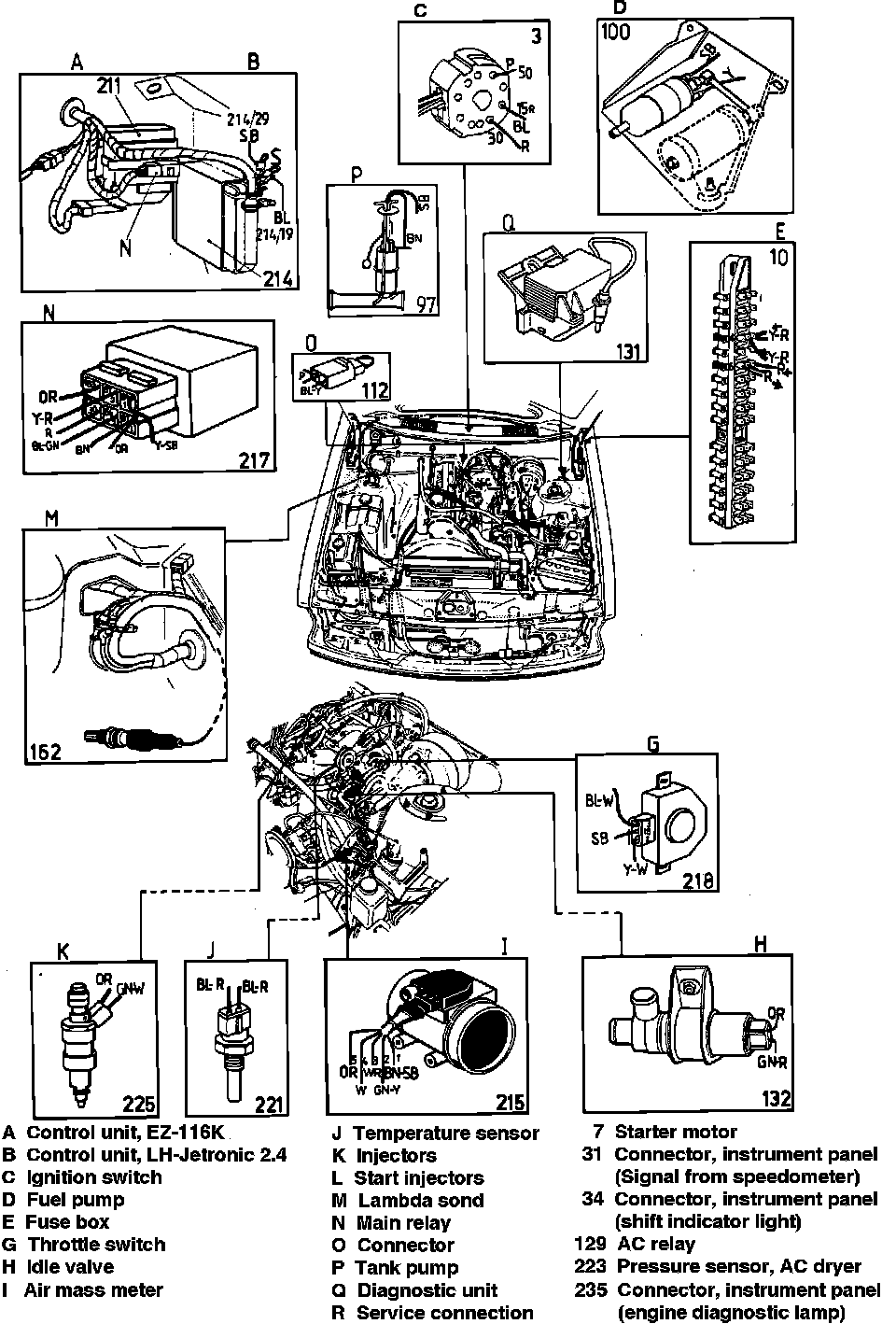

LH Jetronic 2.:

RH Side Of Steering Column

Applicable to: 4 Fuel Injection System Components. B230F Engine

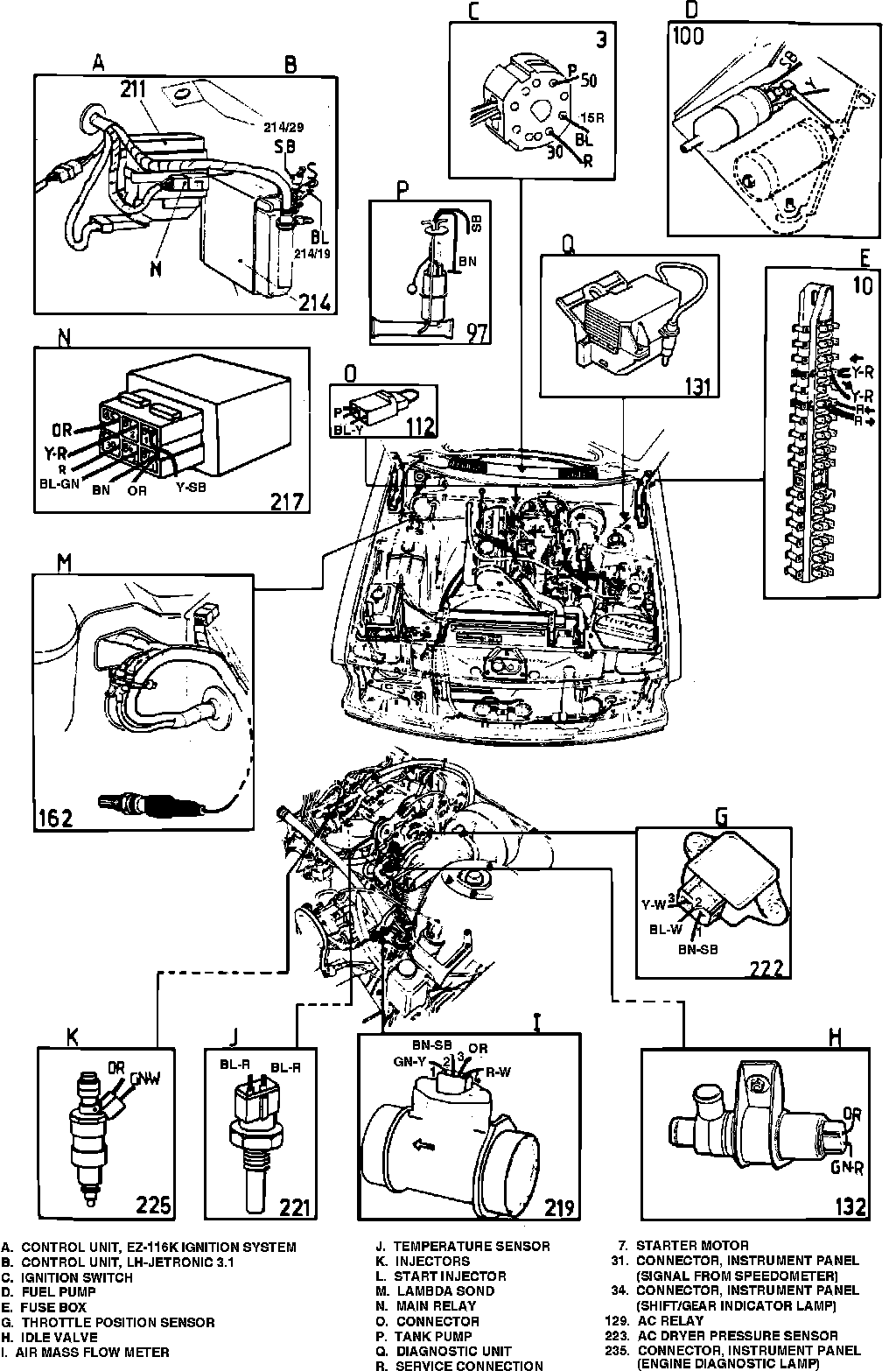

LH Jetronic 3.:

RH Side Of Steering Column

Applicable to: 1 Fuel Injection System Components. B230F Engine

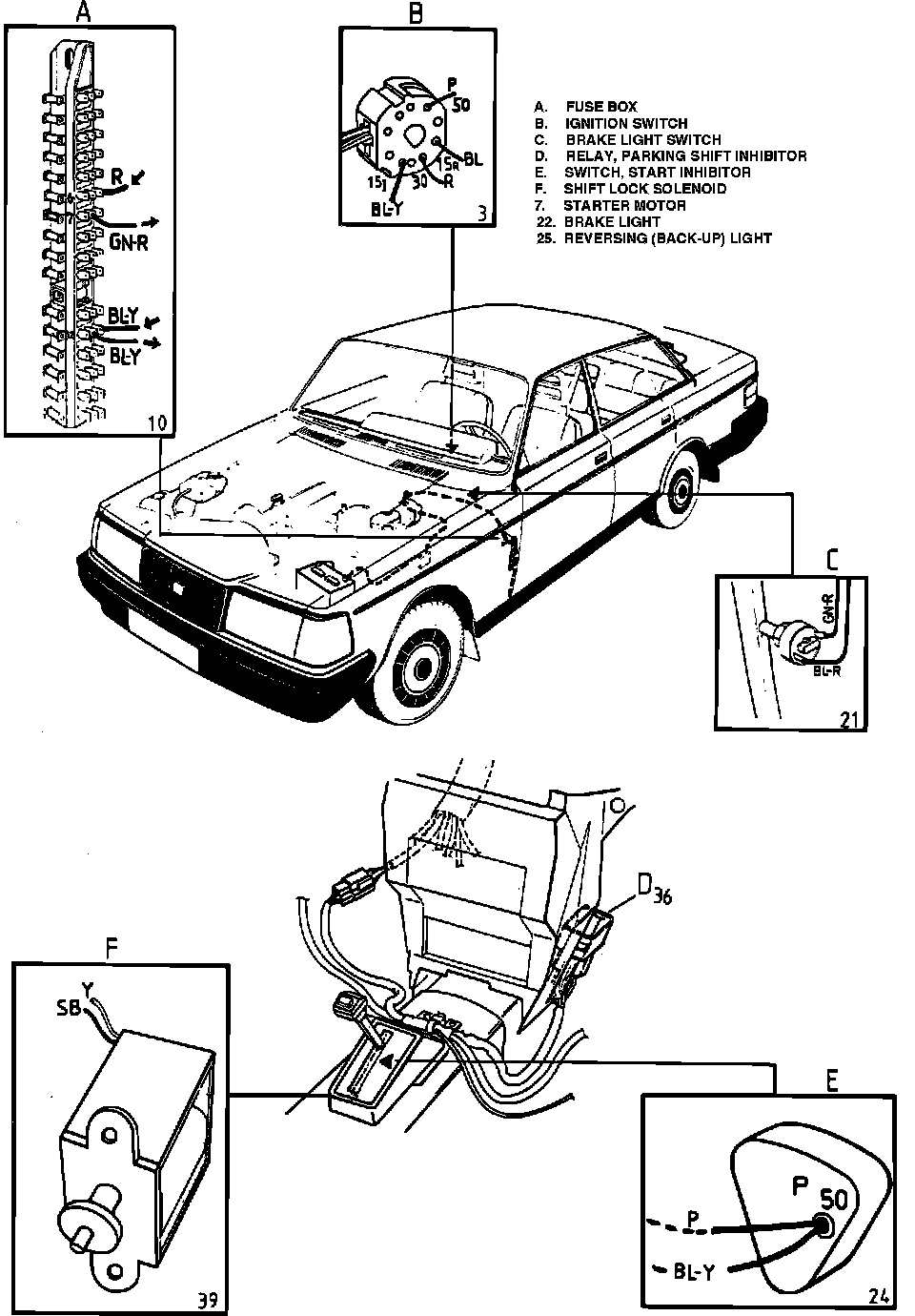

Parking Shift Lock Components:

RH Side Of Steering Column

Applicable to: B230F Engine
