Rex-I

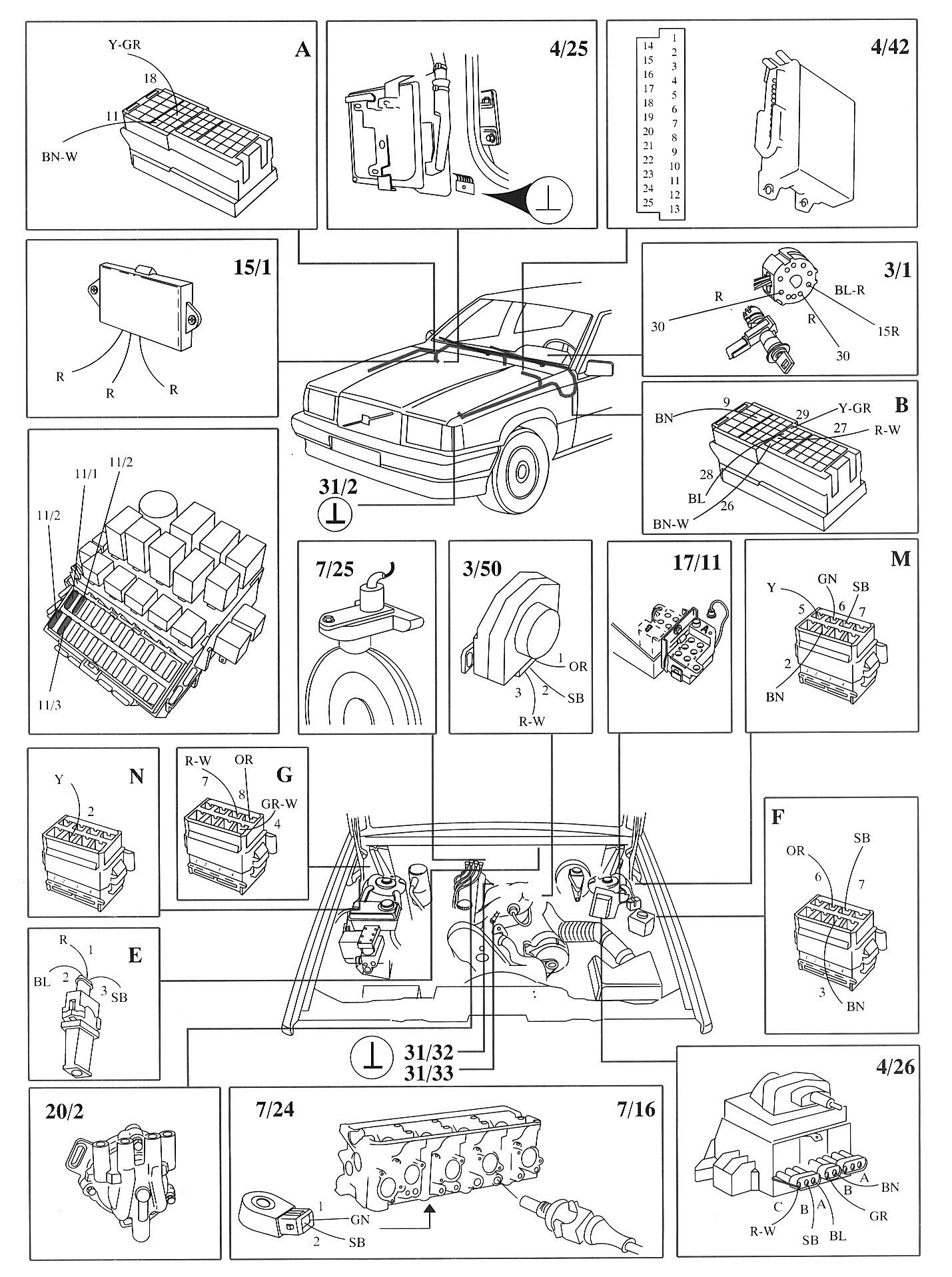

Component / Connector Locations:

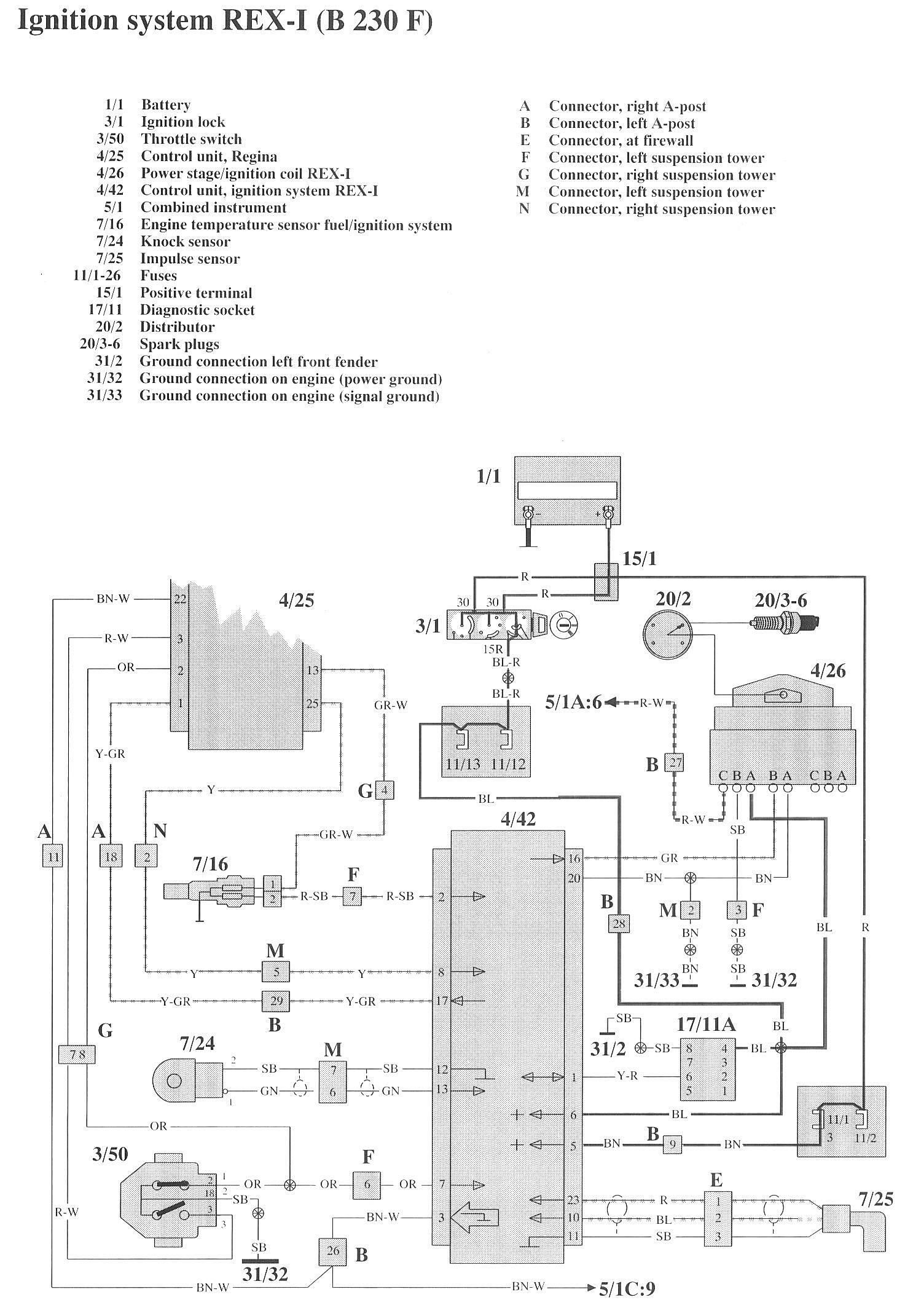

Wiring Diagrams:

LEGEND
1/1 Battery
3/1 Ignition lock
3/50 Throttle switch
4/25 Control unit, Regina
4/26 Power stage/ignition coil REX-I
4/42 Control unit, ignition system REX-I
5/1 Combined instrument
7/16 Engine temperature sensor fuel/ignition system
7/24 Knock sensor
7/25 Impulse sensor

11/1-26 Fuses
15/1 Positive terminal
17/11 Diagnostic socket
20/2 Distributor
20/3-6 Spark plugs
31/2 Ground connection left front fender
31/32 Ground connection on engine (power ground)
31/33 Ground connection on engine (signal ground)
