Coolant Temperature Switch/Sensor, A/C

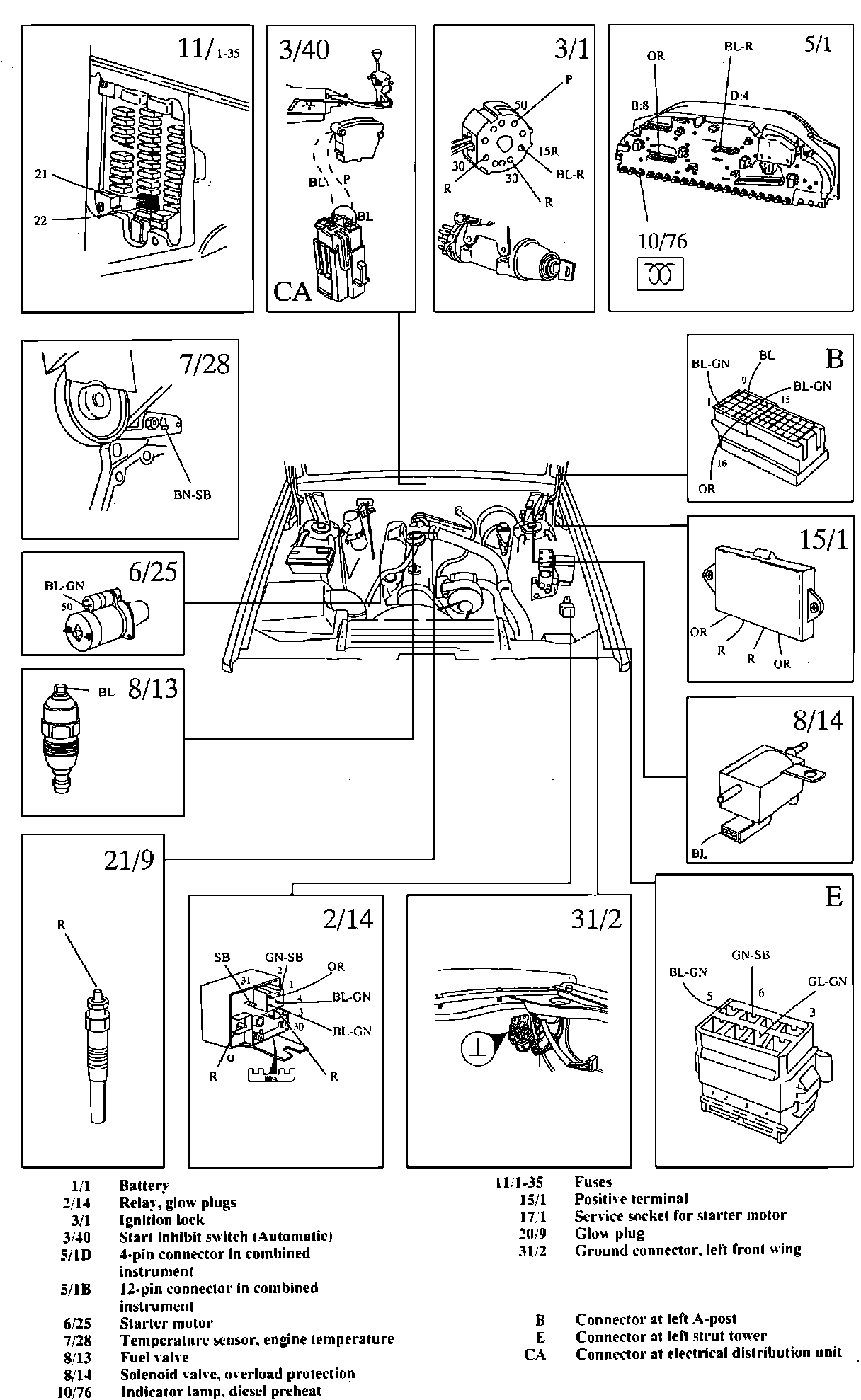

Glow Plug Components:




Front LH Side Of Engine Compartment

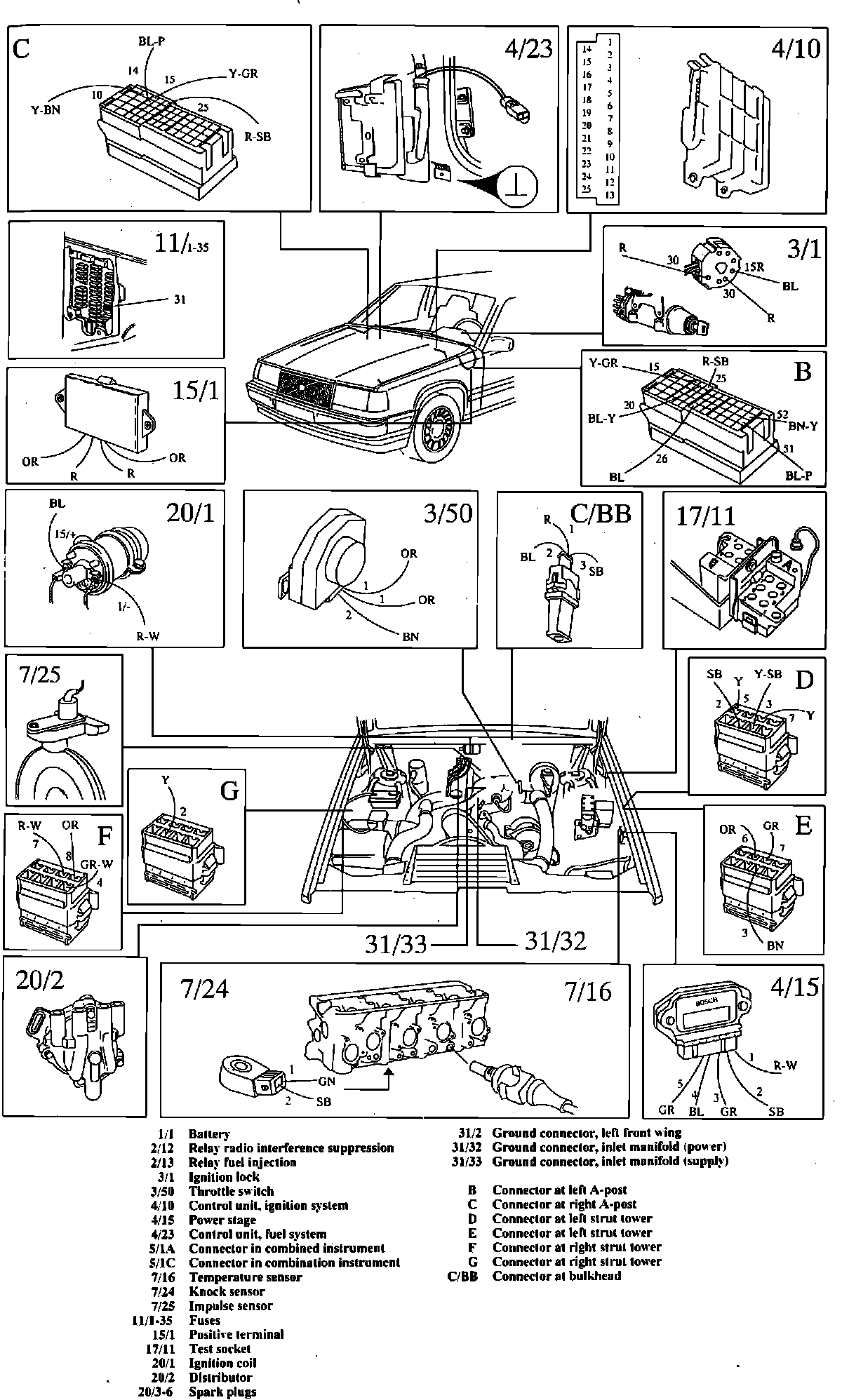

Ignition System EZ-116K Components.:




Front LH Side Of Engine Compartment

Applicable to: B204FT Engine

Ignition System EZ-116K Components.:




Front LH Side Of Engine Compartment

Applicable to: B230FT/GT Engine

Turbo Control Unit (TCU) System Components (Part 1 of 2).:




Turbo Control Unit (TCU) System Components (Part 1 of 2).:




Front LH Side Of Engine Compartment

Applicable to: B204FT Engine

LH Jetronic 2.:




RH Side Of Transmission

Applicable to: 4 System Components. B204FT Engine
