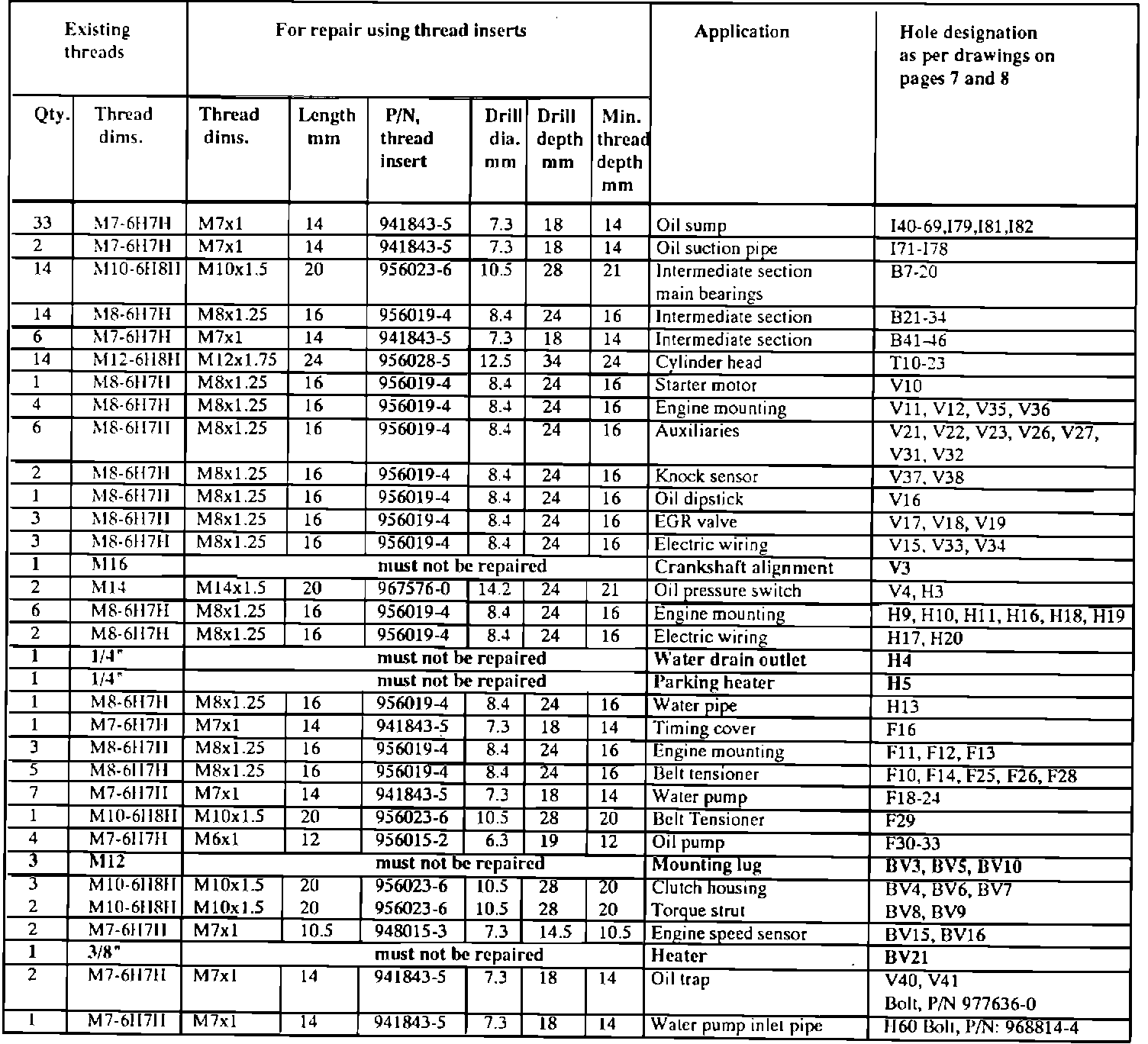

Cylinder Block and Intermediate Section Thread Insert Table

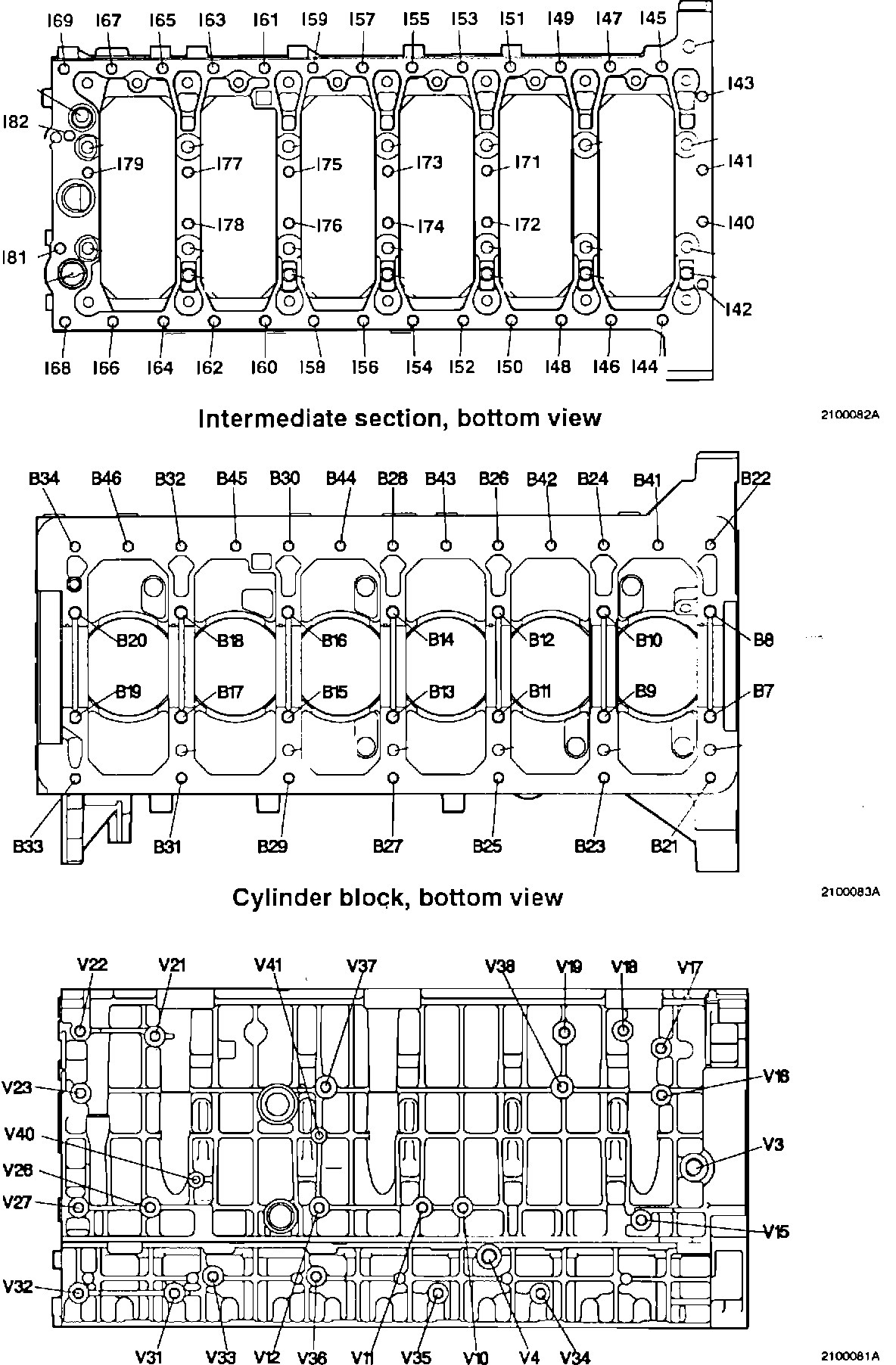

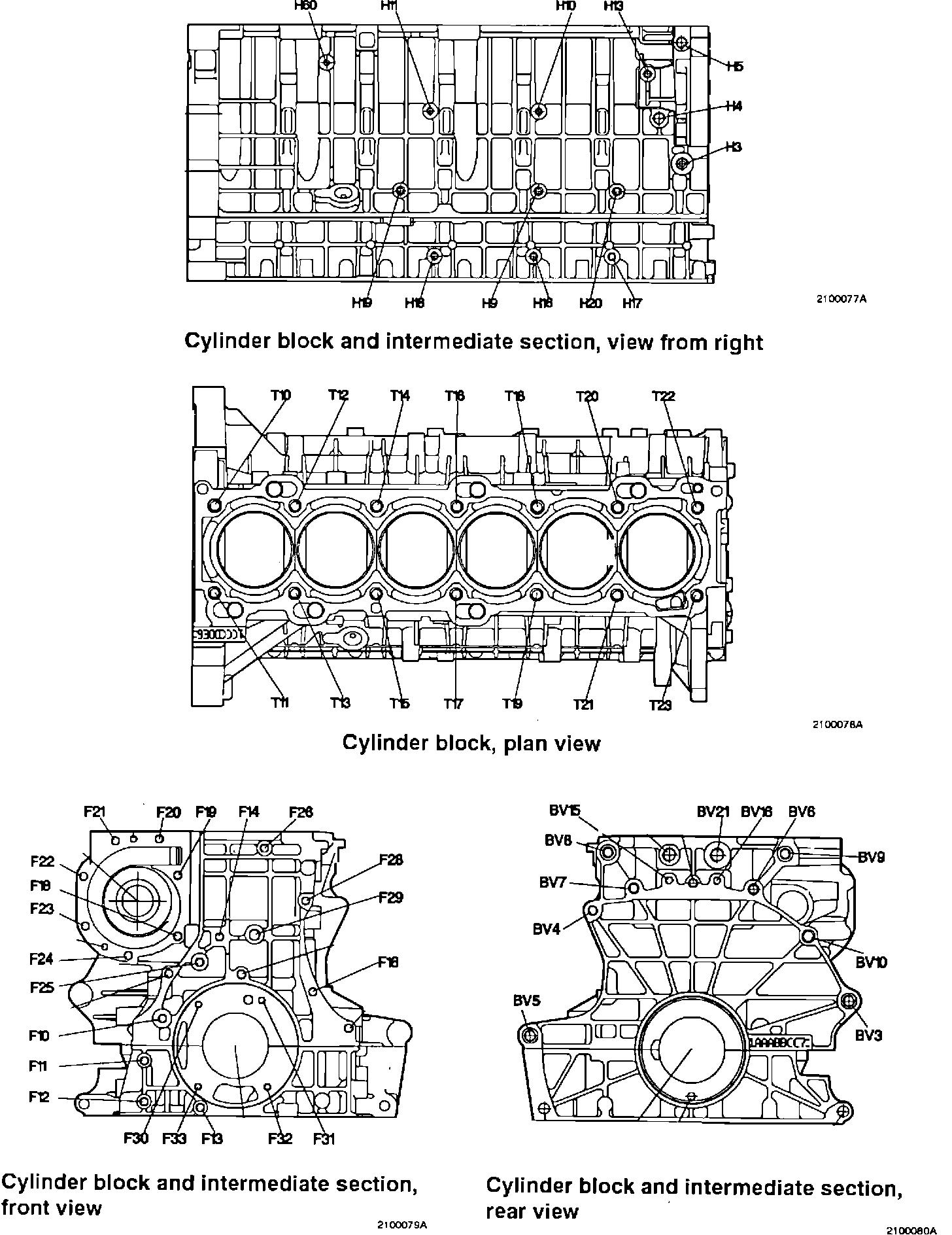

This table provides information as to which tapped holes in the cylinder block and intermediate section can be repaired and which thread inserts must be used.

The table also shows the drilling depth and diameter of the holes, as well as the P/Ns of the appropriate thread inserts.

Note that holes designated V3, H4, H5, BV3, BV5, BV10 and BV21 must not be repaired with thread inserts.
