Regina (Bendix)

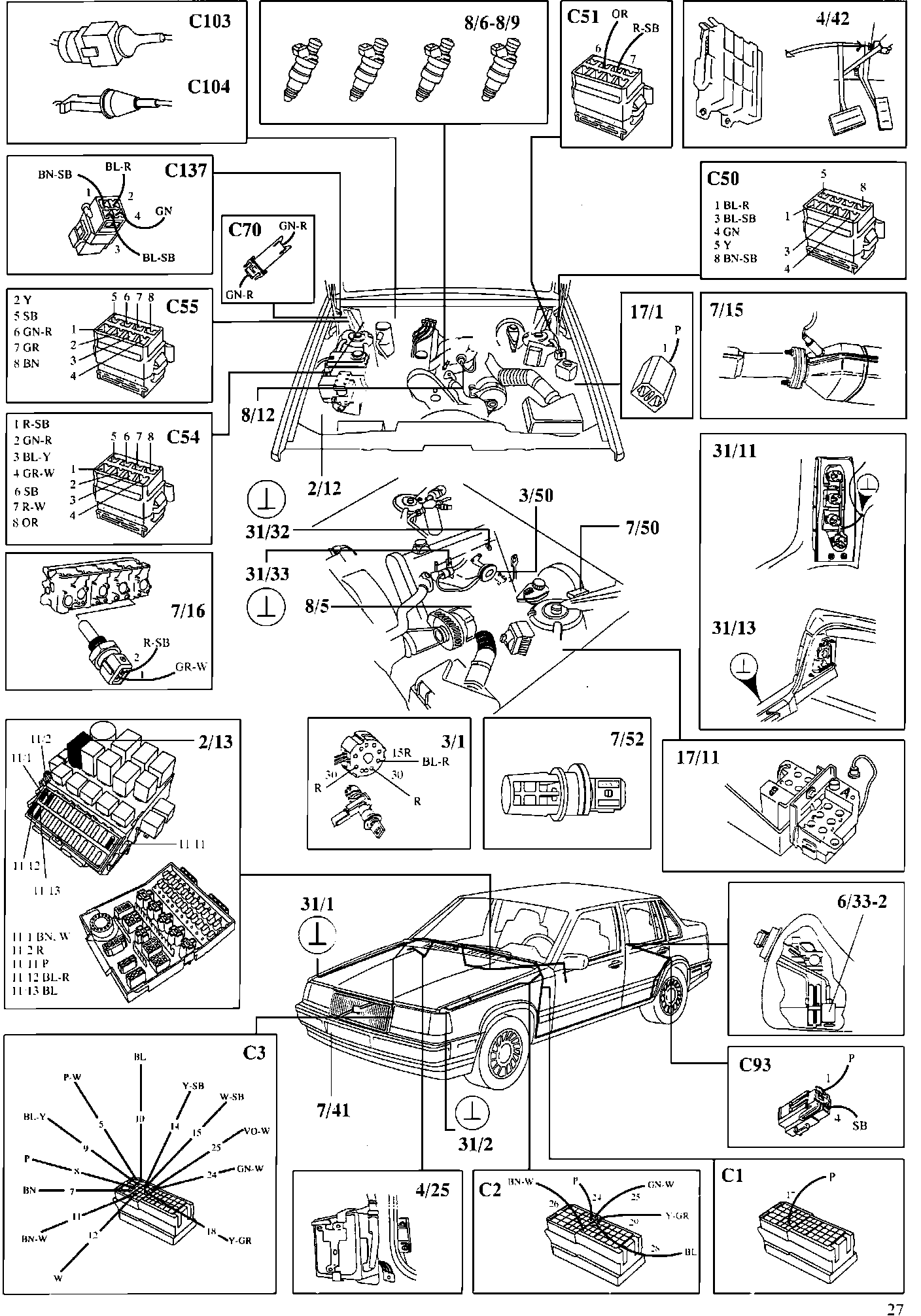

Regina Fuel Injection Components:




Component Locations

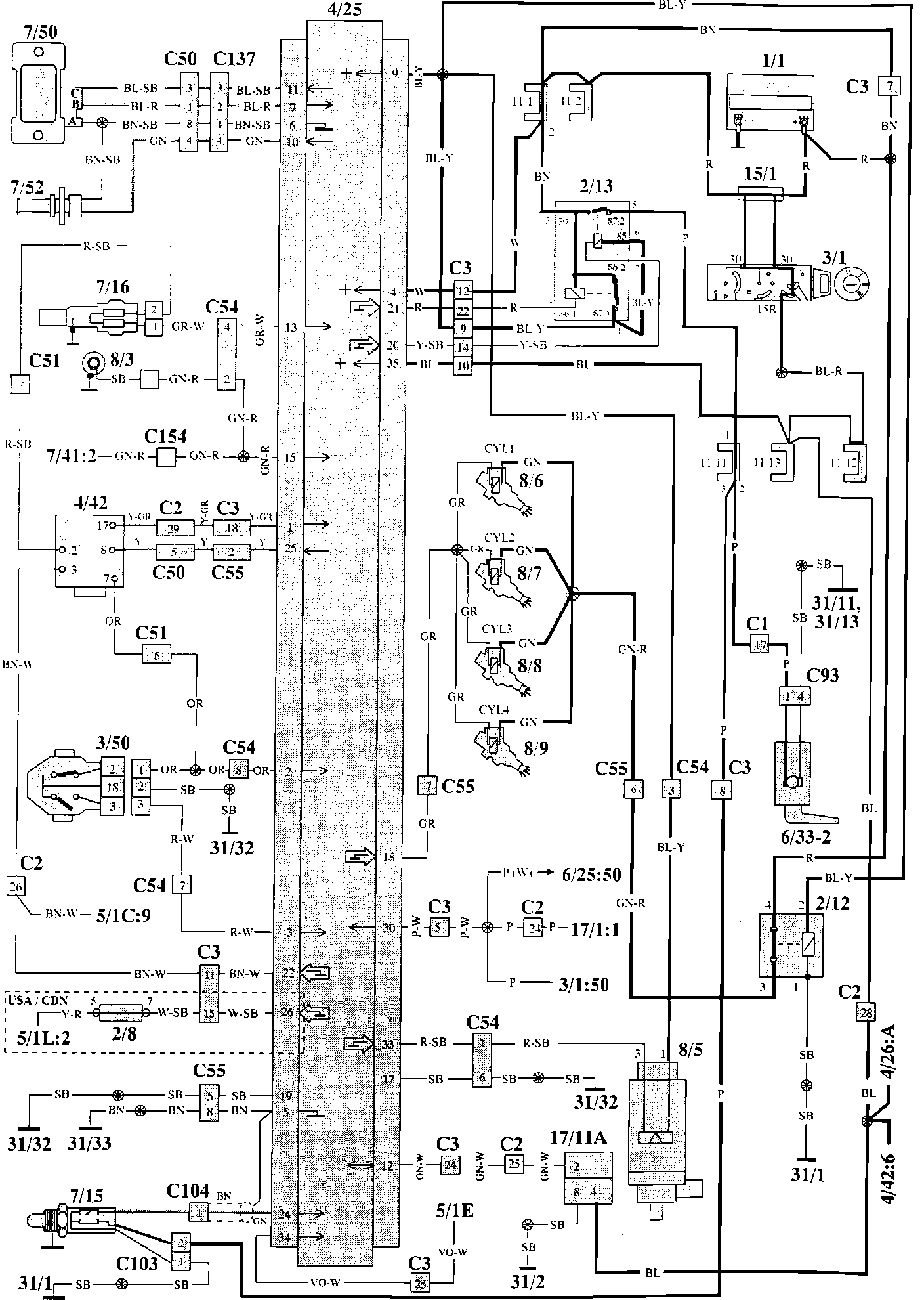

Regina Fuel Injection Wiring:




Wiring Diagram

Component Index And Identification:




Component Index And Identification:




Component Index And Identification:
