Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
1993
>>
960 L6-3.0L VIN 95 B6304F
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Locations
Charging System: Locations

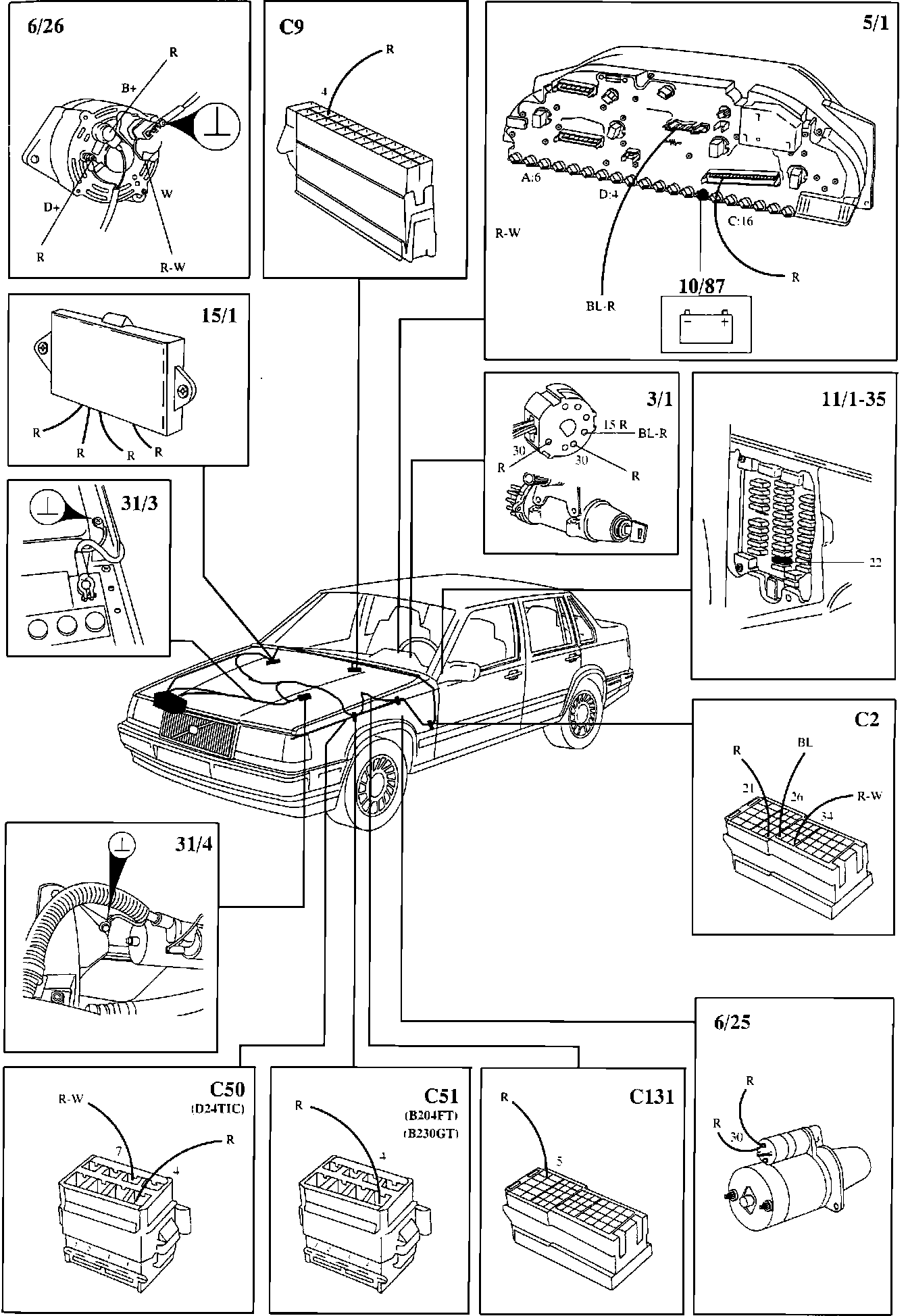

Power Supply Components:
Component Locations

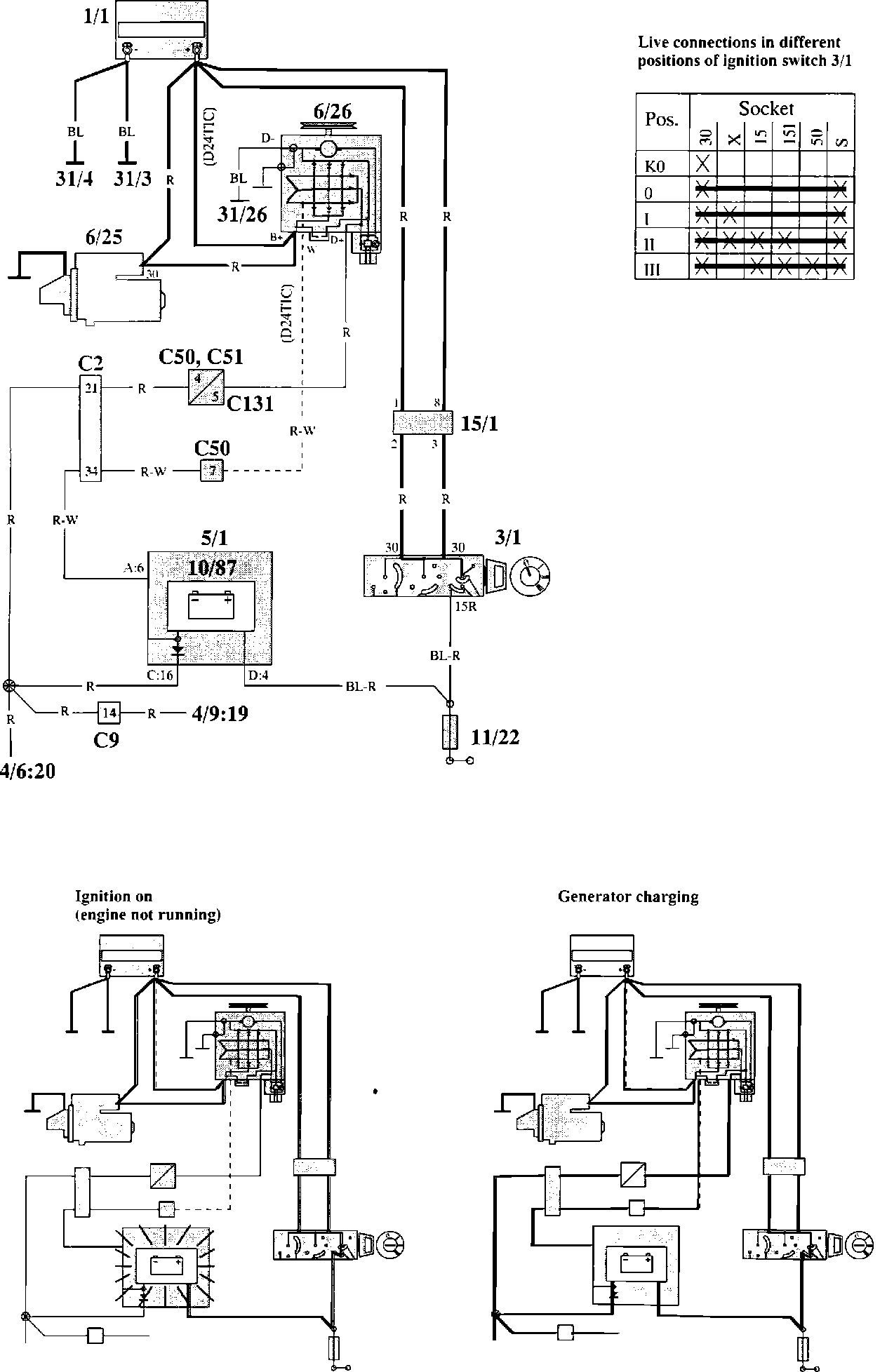

Power Supply Wiring:
Wiring Diagram
