GC. Signal Descriptions TCM AW 50-42

GC. Signal descriptions TCM AW 50-42

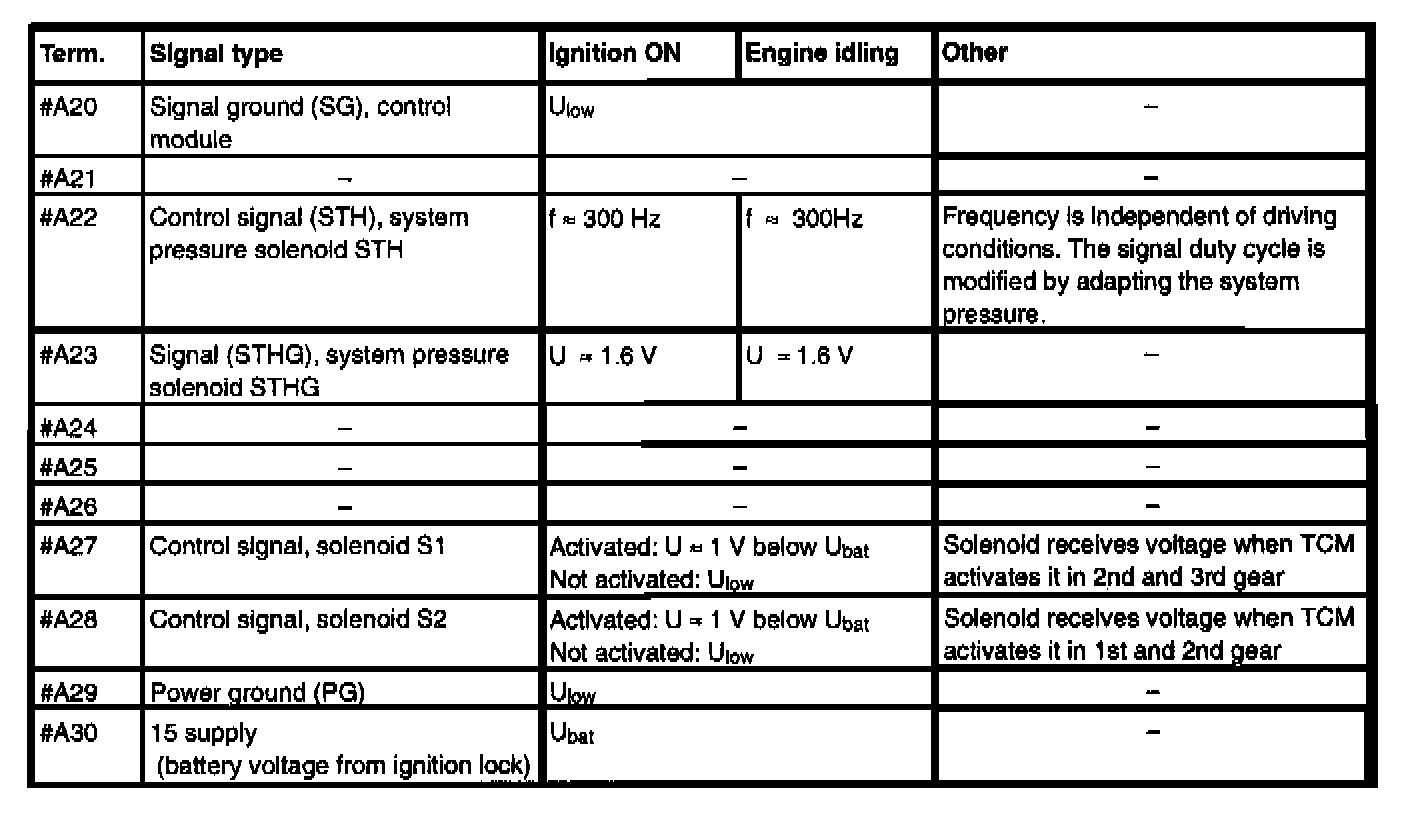

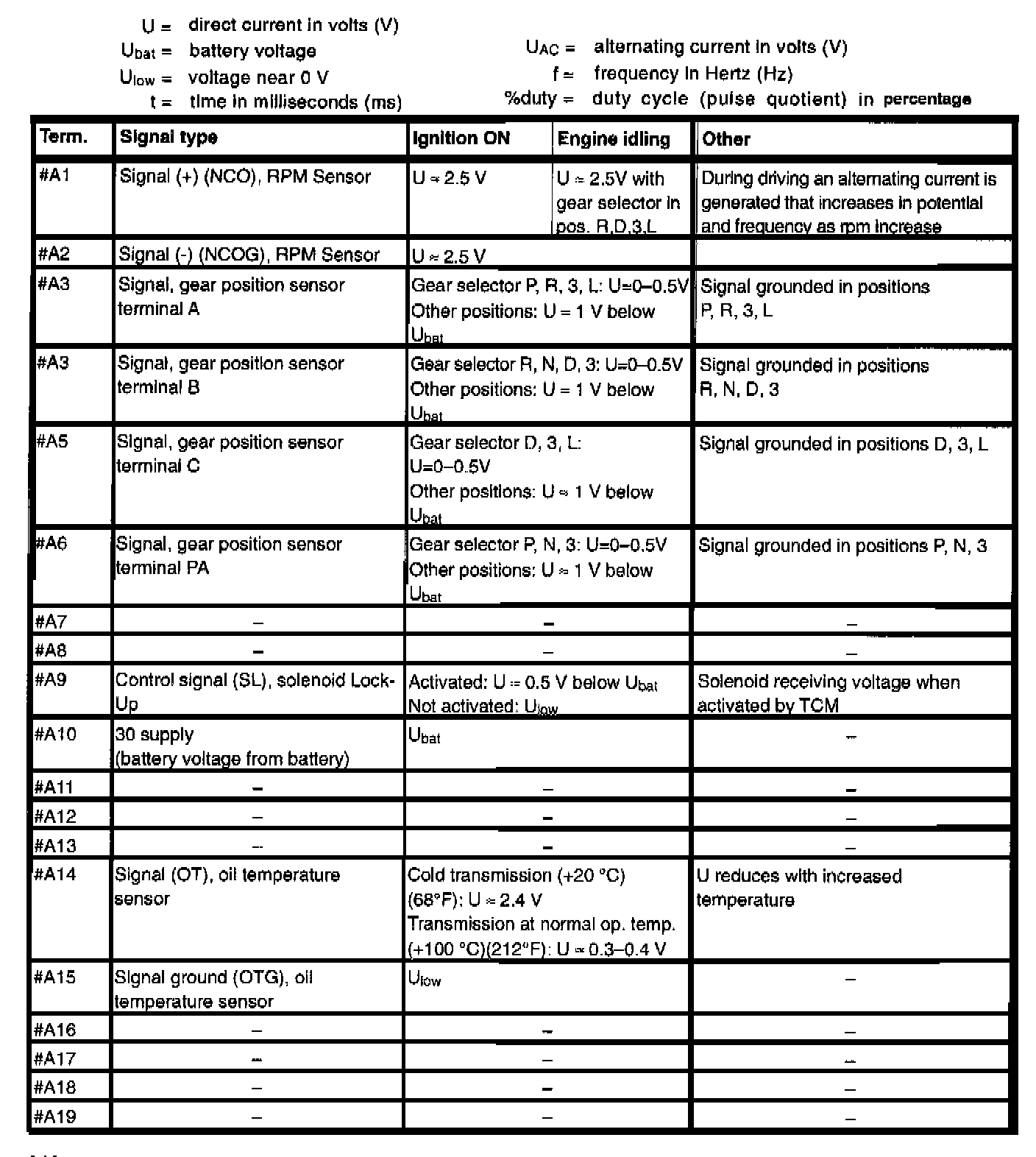

Connector A, #A1-A3O












All values given below are between the respective terminal in column 1 and terminal #20 (signal ground) unless otherwise stated in brackets after the table entry.

NOTE: It is important that connection of the Test box and checking the ground points is carried out as per GB1-GB2 before beginning taking measurements. GB. Connecting the Test Box

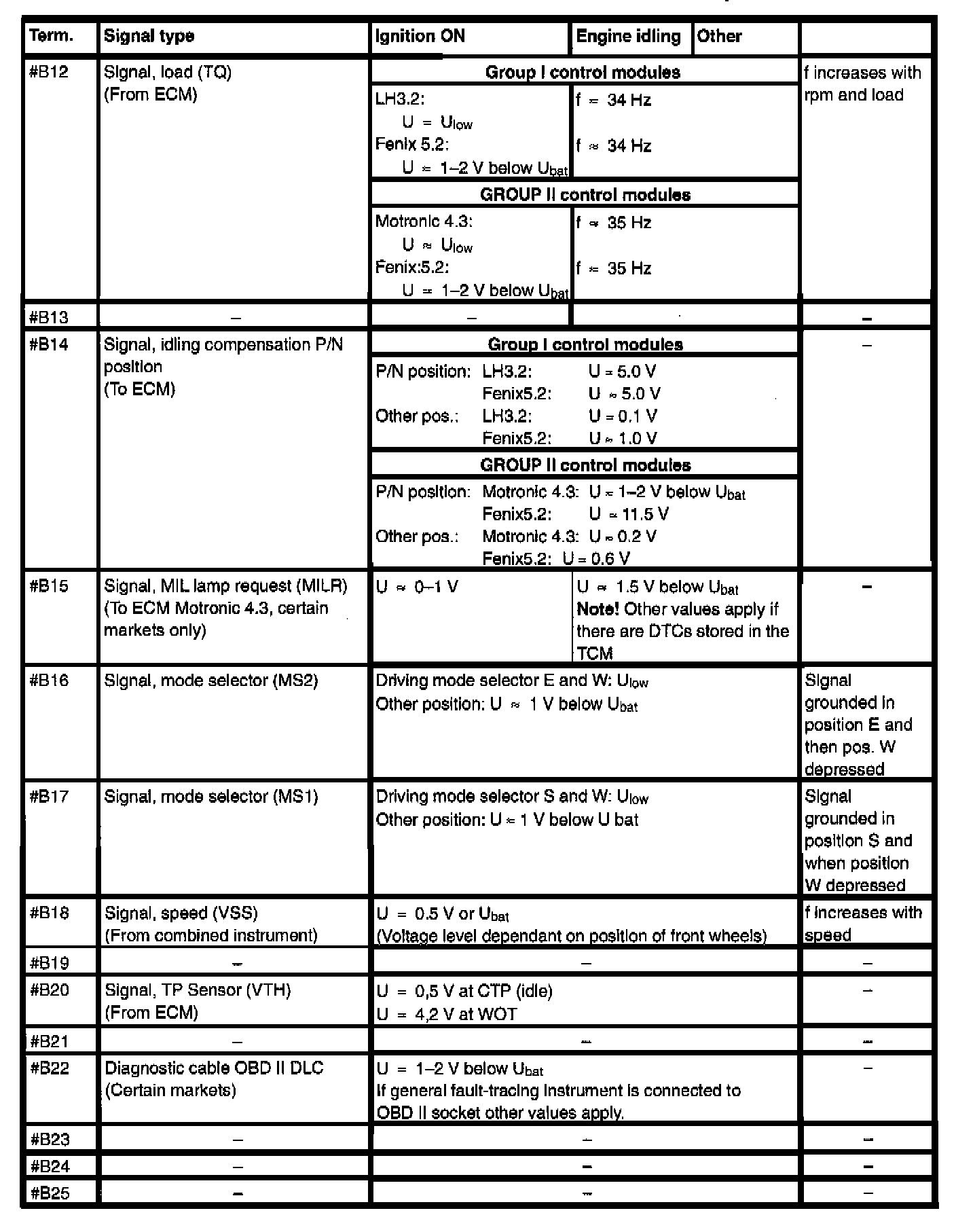

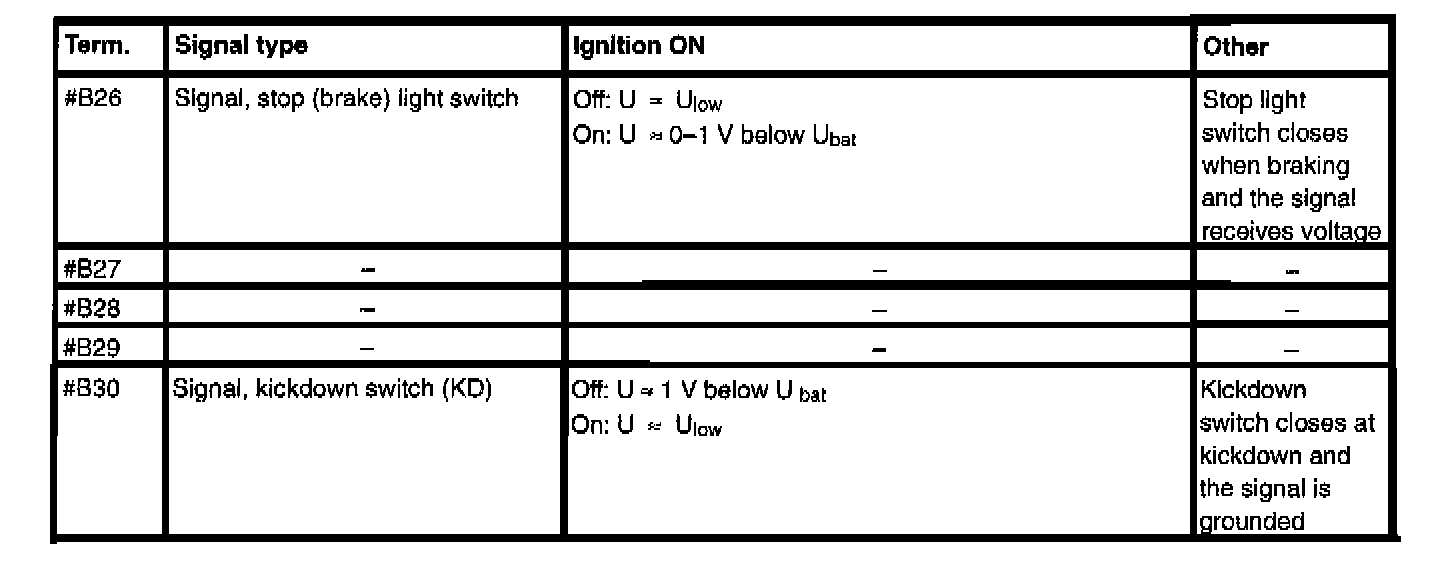

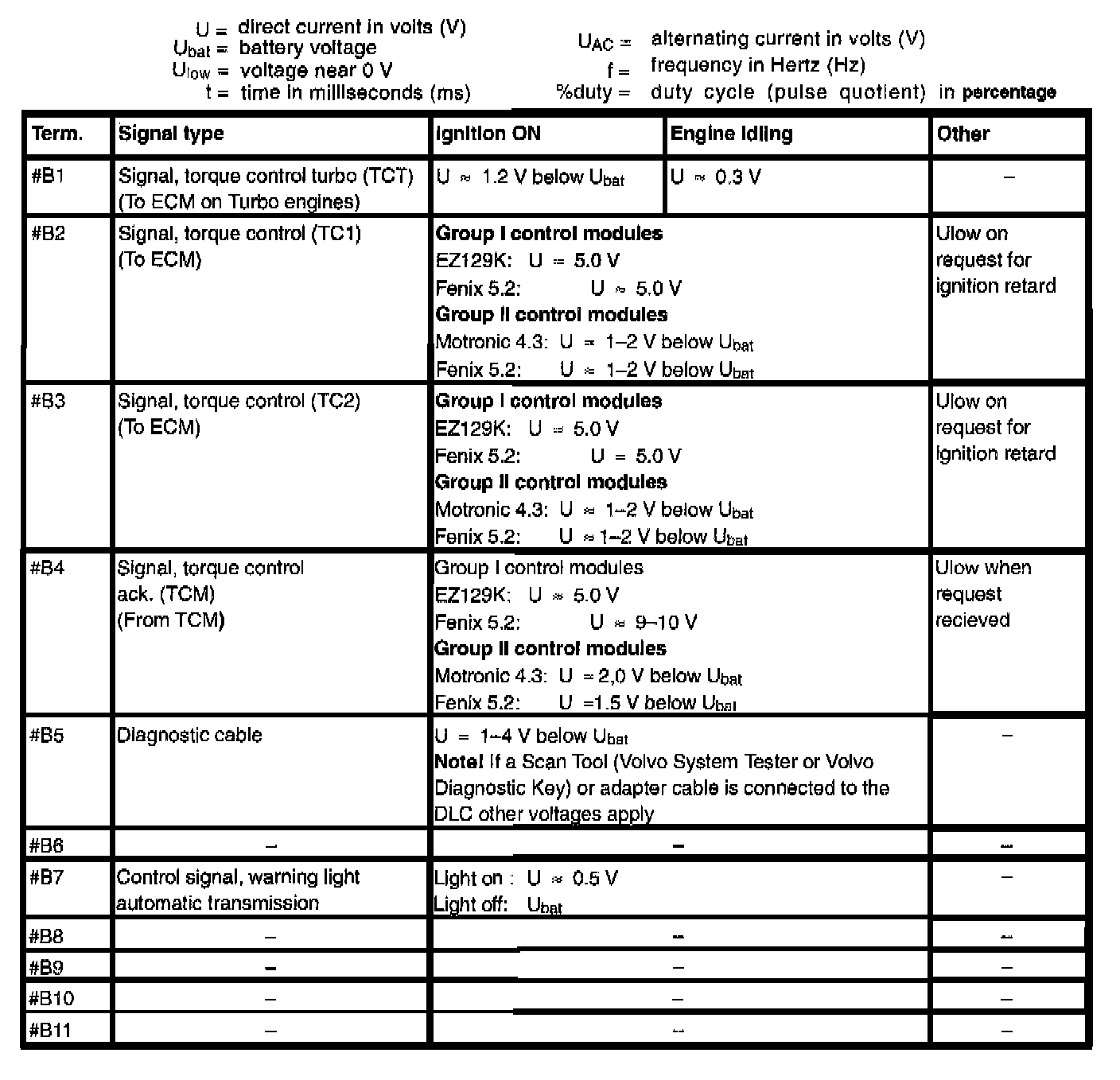

Connector B, #B1-B3O

All values given below are between the respective terminal in column 1 and terminal #20 (signal ground) unless otherwise stated in brackets after the table entry.

















NOTE: It is important that connection of the Test box and checking the ground points is carried out as per GB1-GB2 before beginning taking measurements. GB. Connecting the Test Box
