Heating and Air Conditioning: Adjustments

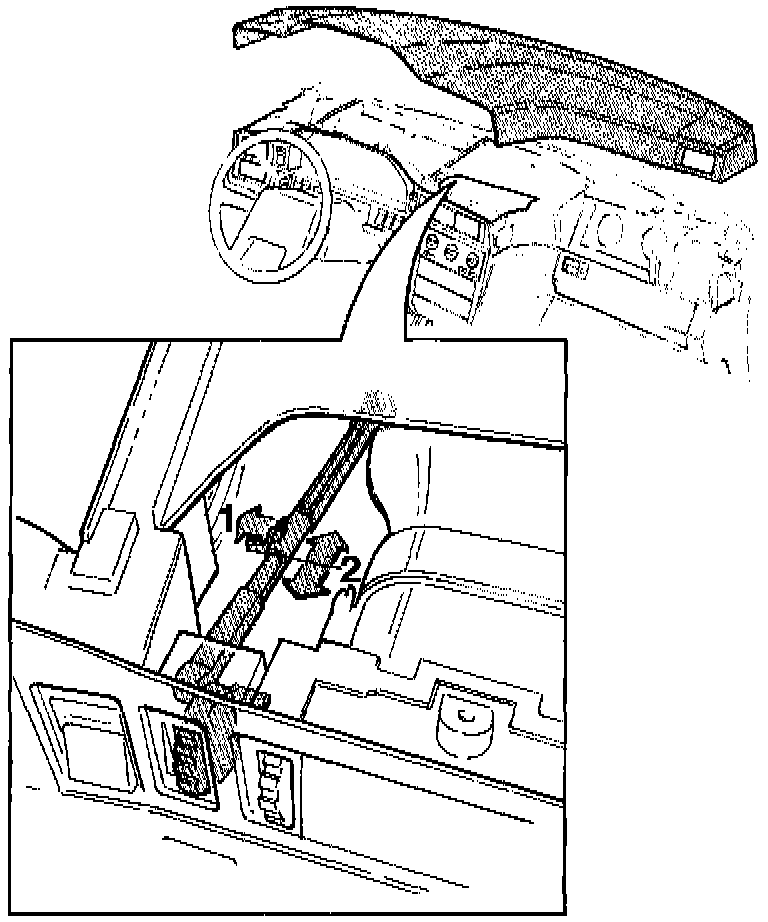

Air-Mix Damper (Flap), ECC & MCC Remove dashboard cover (See Dashboard in Body and Frame, Interior Trim.)
Adjust Airmix
damper -
Release catch on pull rod.
-
Set control to closed. Move pull rod forwards (
completely closed Airmix damper).
-
Lock catch on pull rod.
Check
damper position
-
Check that Airmix damper shuts at both limit positions.
Install cover on dashboard
