GD. Connectors Between the Electronics Unit/Control Module



GD. Connectors between the electronics unit/control module

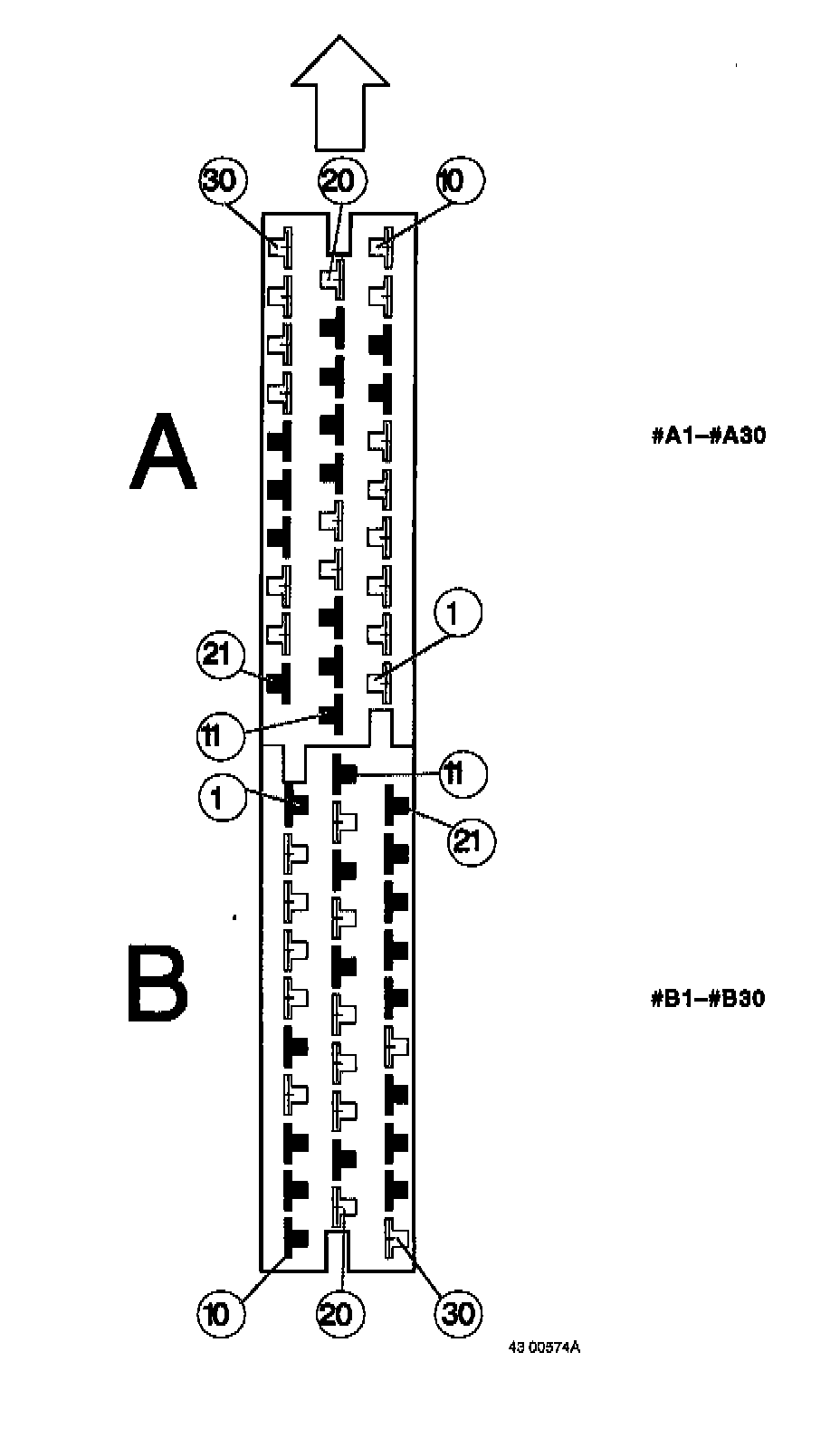

Two 30-pin connectors, integrated into one module.

A Engine compartment side

B Passenger compartment side






The illustration shows the connector to the transmission control module (TCM) in the electronics box, seen from above
