Oil Level Warning Indicator: Service and Repair

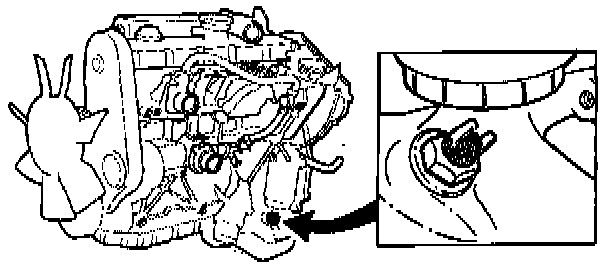

Oil level sensor, replacement T11B28 Engine:
Diesel Engine:
-
Remove battery negative lead.
-
Lower generator (B28).
-
Drain oil.
-
Detach leads from sensor.
-
Unscrew sensor.
-
Reassemble in reverse order. Fill with new motor oil.
