With Automatic Transmission

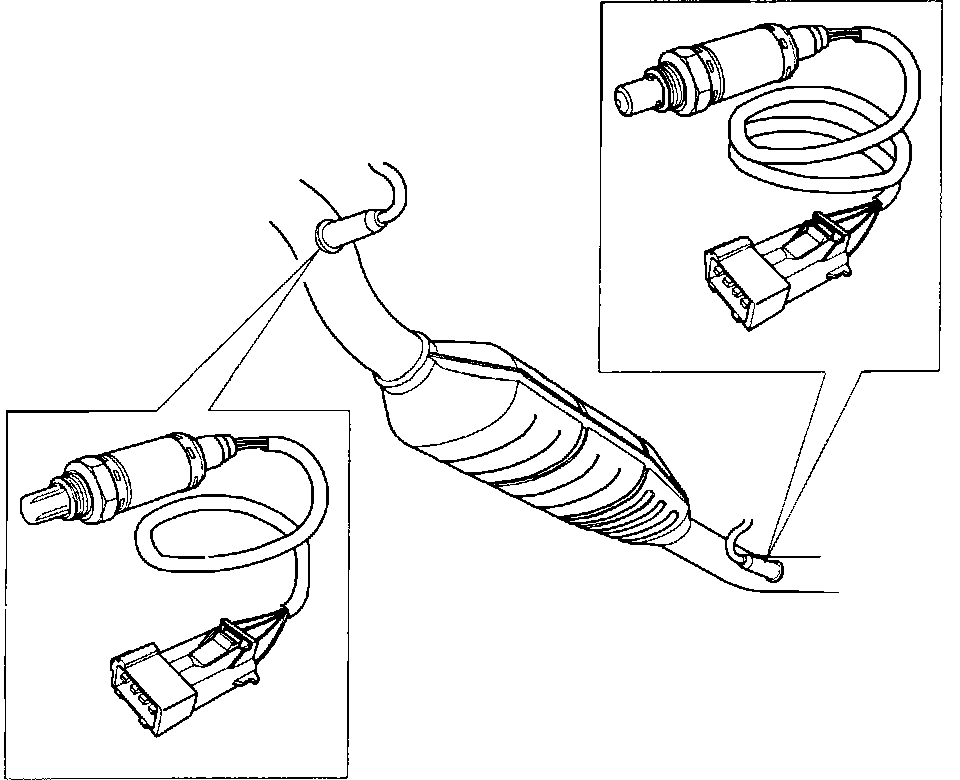

Heated Oxygen Sensor(s):





The front oxygen sensor is mounted in the exhaust pipe, up-stream of the catalytic convertor. The rear sensor is mounted in the exhaust down-stream of the catalytic convertor.
