Fuel Injection System

LH 3.2 FUEL INJECTION SYSTEM PINOUTS

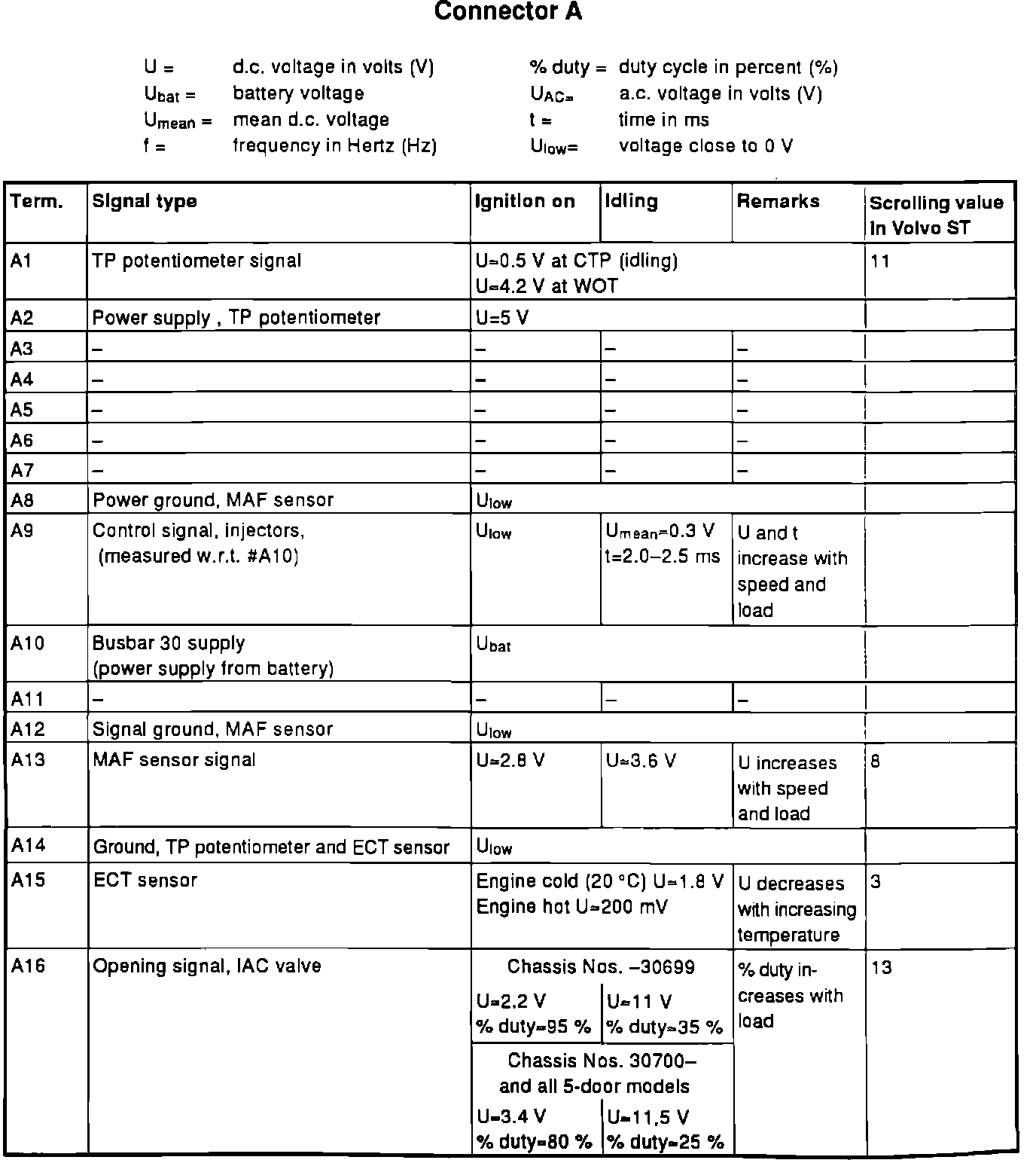

LH-3.2, Terminals A1 - A16:

Terminals A1 - A16

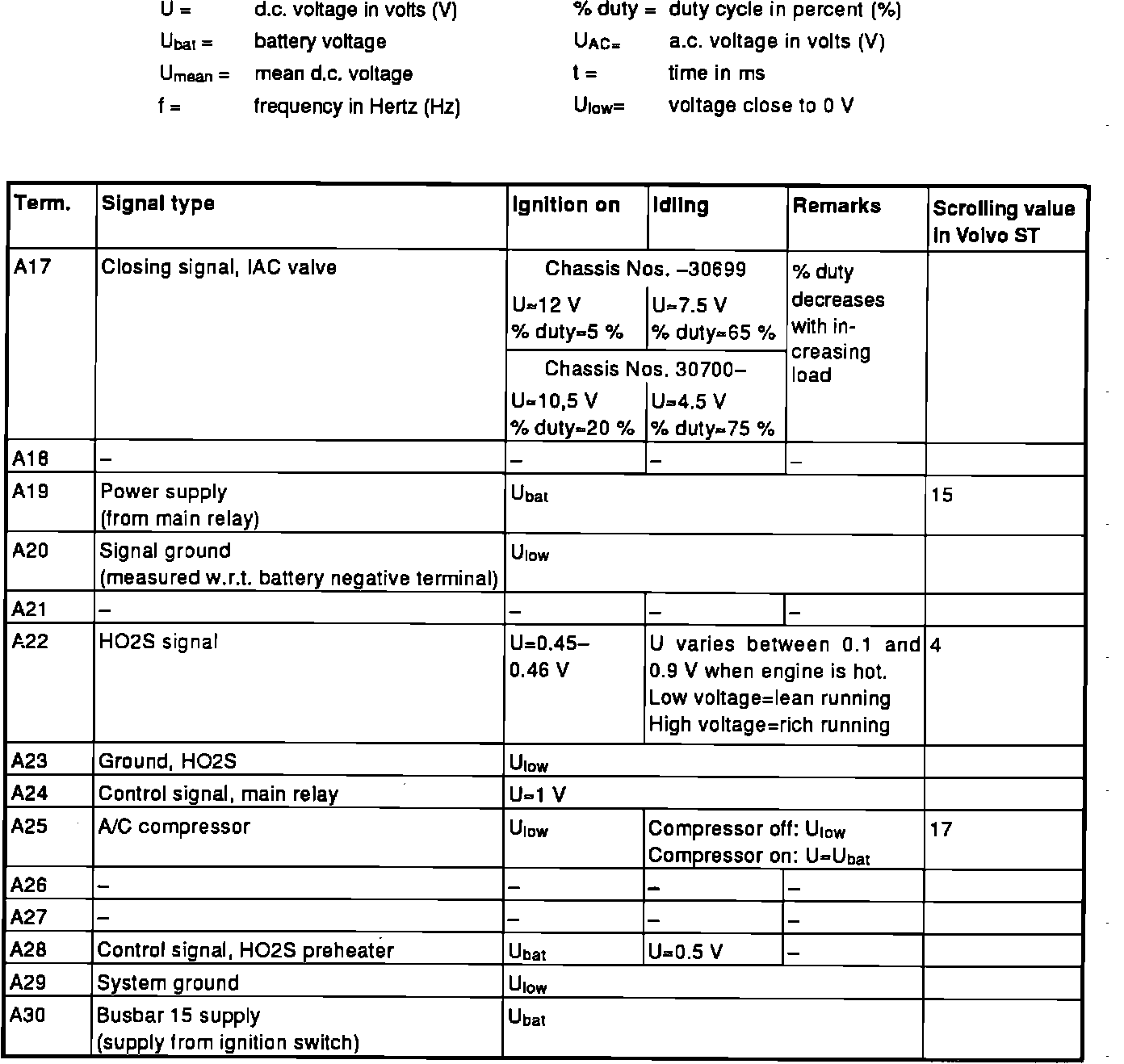

LH-3.2, Terminals A17 - A30:

Terminals A17 - A30

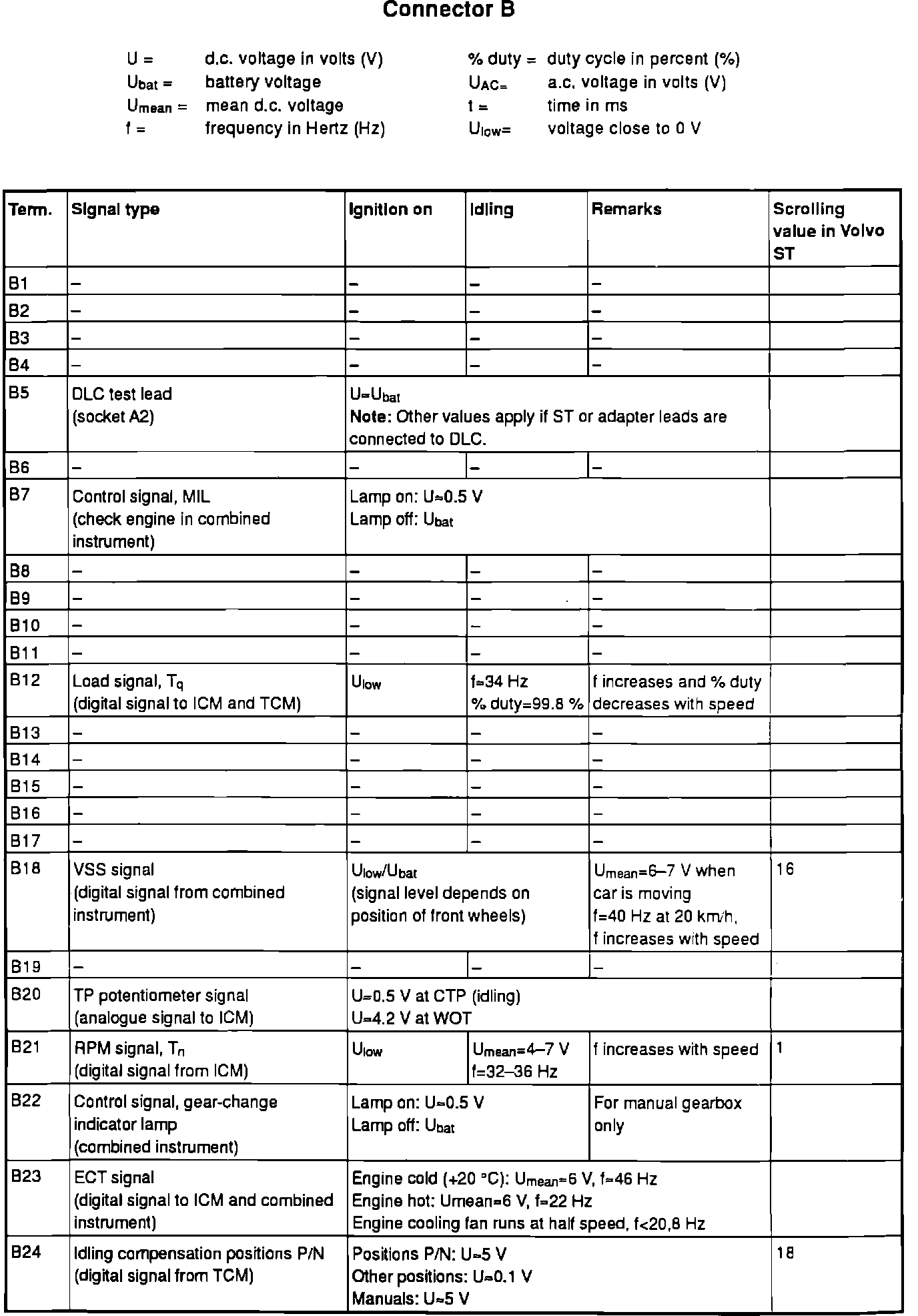

LH-3.2, Terminals B1 - B24:

Terminals B1 - B24

LH-3.2, Terminals B25 - B30:

Terminals B25 - B30
