Electrical Diagrams

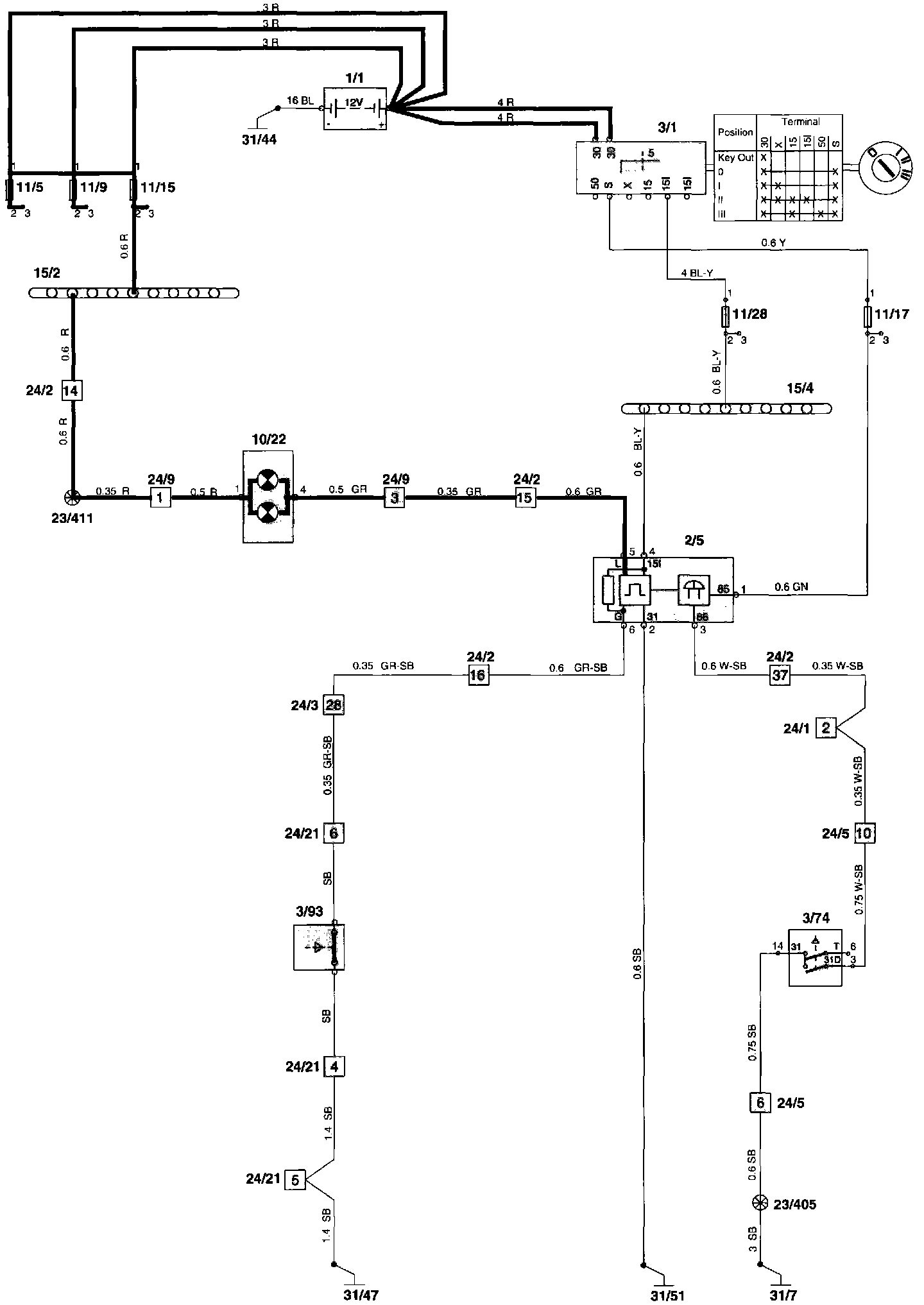

Wiring Diagram

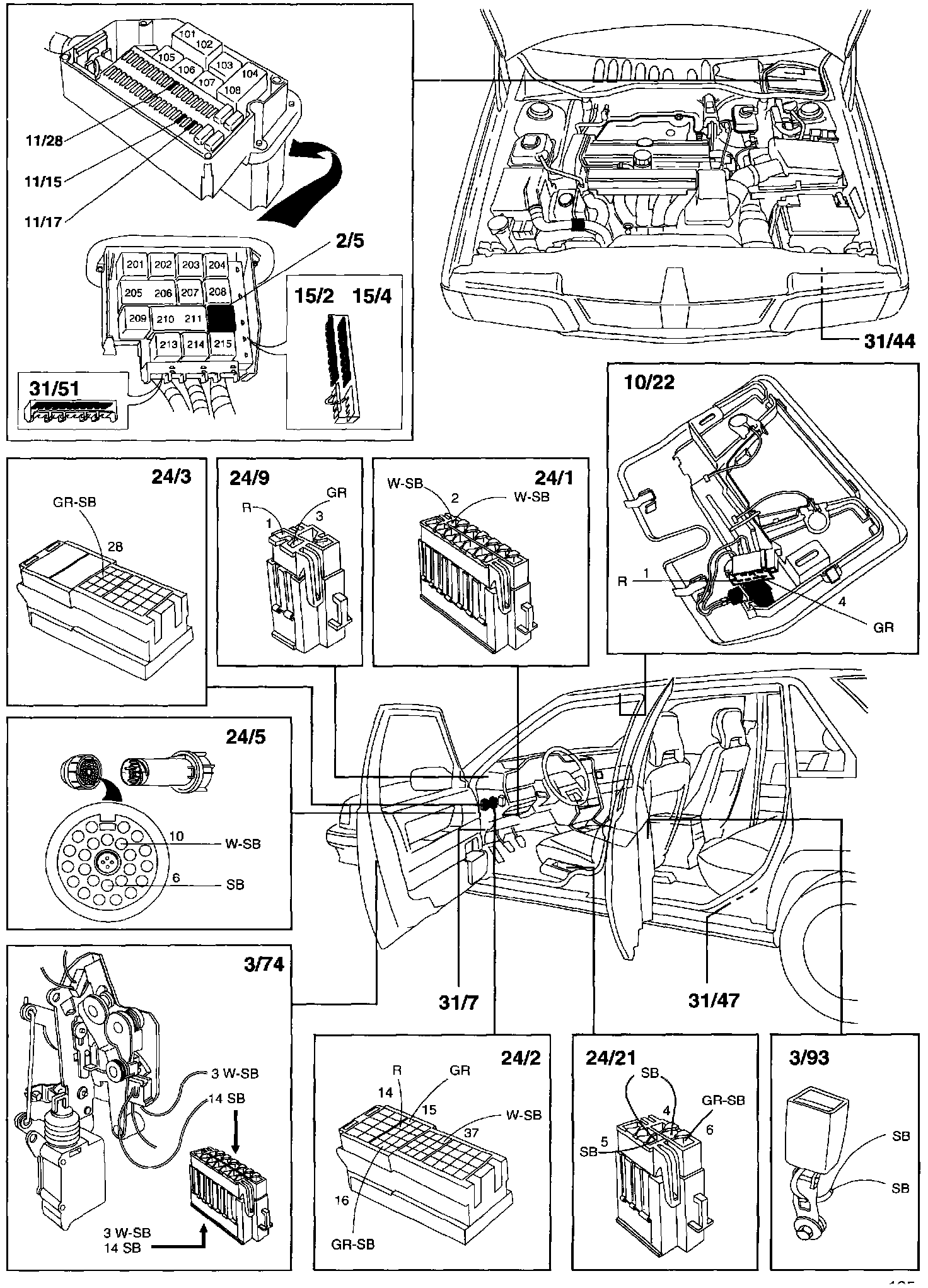

Component Location

Component I.D.List
2/5 Seatbelt reminder/key warning relay
3/74 Lock, left front
3/93 Seat belt lock, left seat
10/22 Inside light, ceiling
11/15 Fuses
11/17 Fuses
11/28 Fuses
15/2 30 rail in central electrical unit
15/4 15I rail in central electrical unit
24/1 Connector, 14-pin
Instrument panel harness - Firewall harness
24/2 Connector, 53-pin
Engine compartment harness - Firewall harness
24/3 LHD cars:
Connector, pos. 26-53 in 53-pin
RHD cars:
Connector, 53-pin
Firewall harness - Door sill harness, left
24/5 Connector, 24-pin
Firewall harness - Left front door harness
24/9 Connector, 4-pin
Firewall harness - Ceiling harness
24/21 Connector, 6-pin
Rocker panel (door sill) harness, left - left seat
31/7 Ground point, A-post driver's side
31/44 Ground point, engine compartment
(ground connection battery - body)
31/47 Ground point, left cross member
31/51 Ground point, central electrical unit (signal ground)
