Ignition Switch: Locations

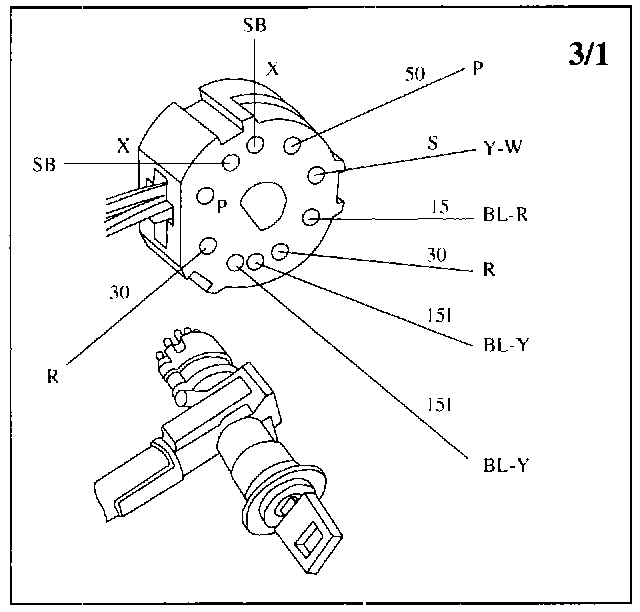

Component Location
Ignition lock

Inputs
30: two leads from battery

Outputs
Key position: Voltage at connection:
- Key withdrawn P
0 off S,P
I Radio X,S,P
II Drive X,15,151,8
III Start 15,50,S
