Multi-Connector A1




Connector View

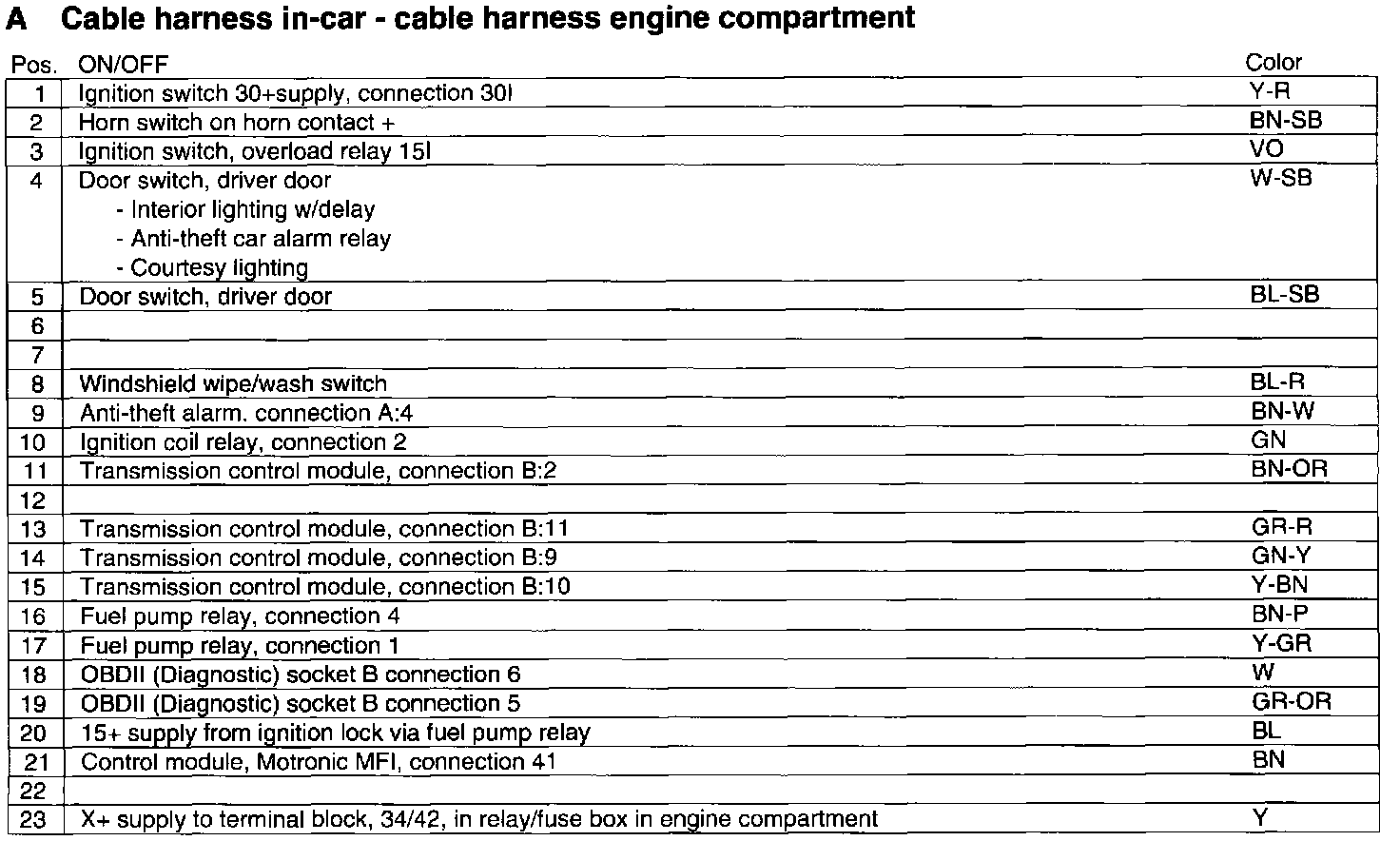

A Cable harness in-car - Cable harness engine compartment

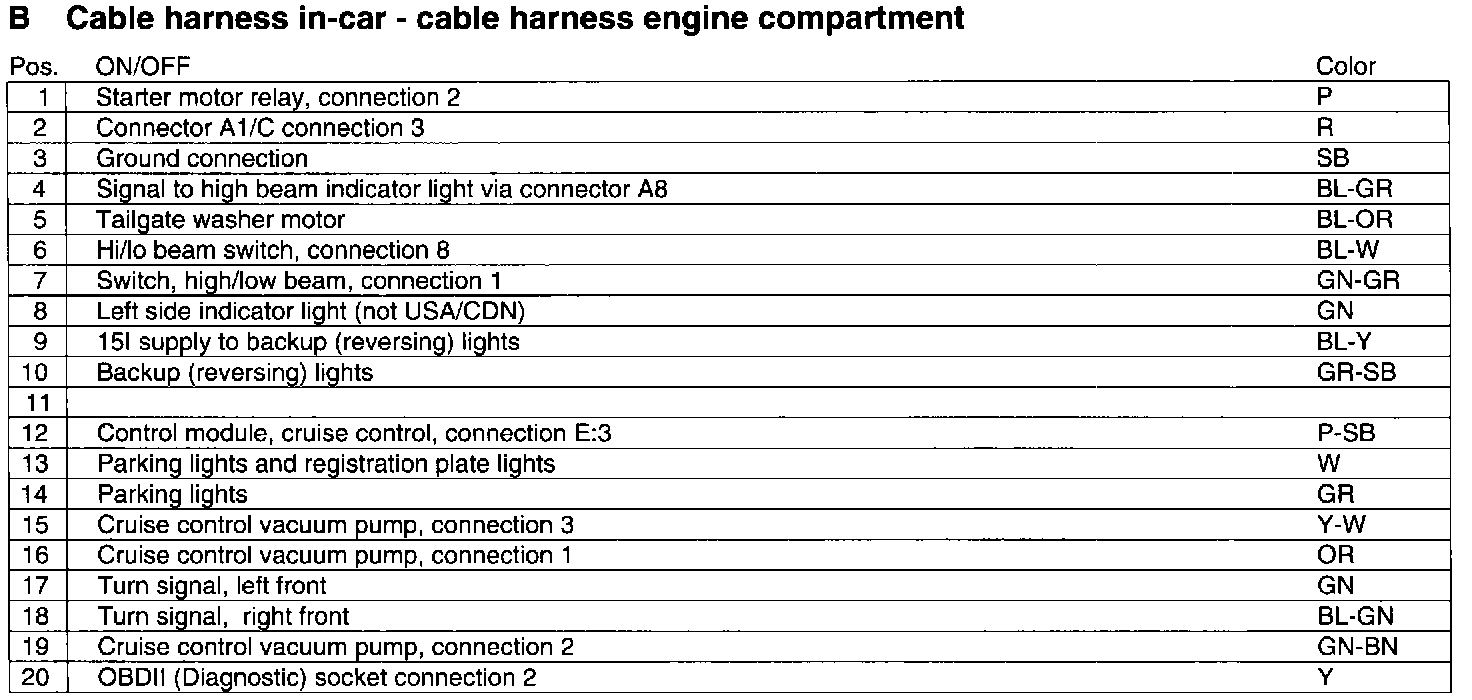

B Cable harness in-car - Cable harness engine compartment

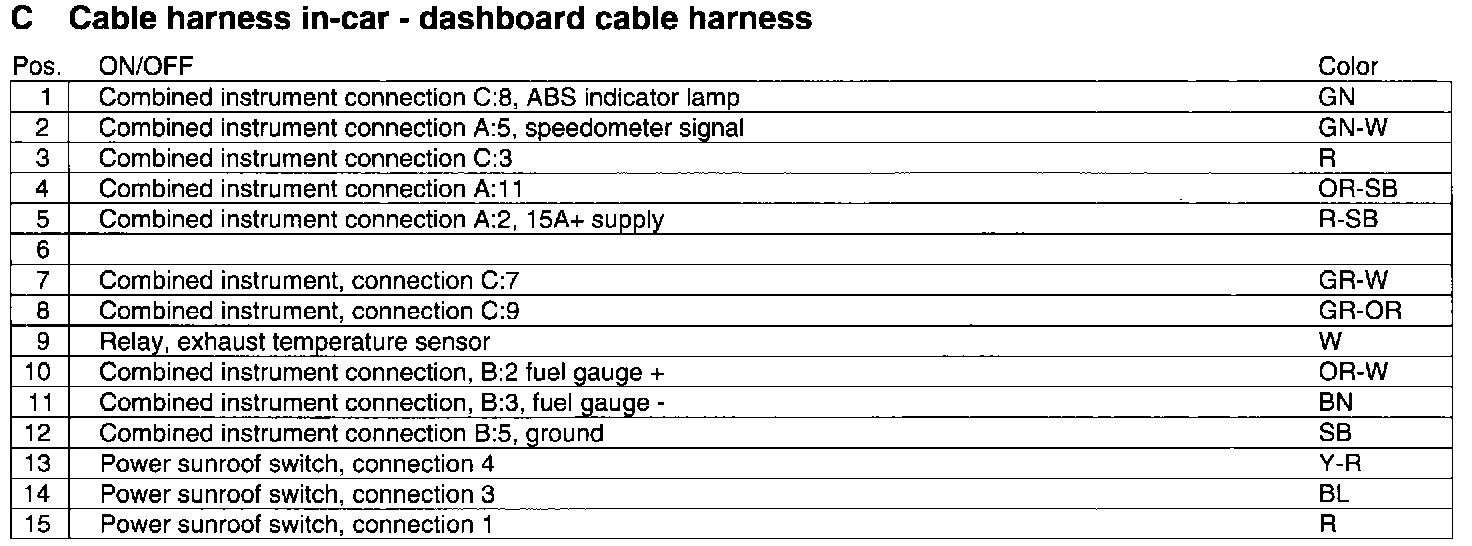

C Cable harness in-car - Dashboard cable harness




D Cable harness in-car - Dashboard cable harness

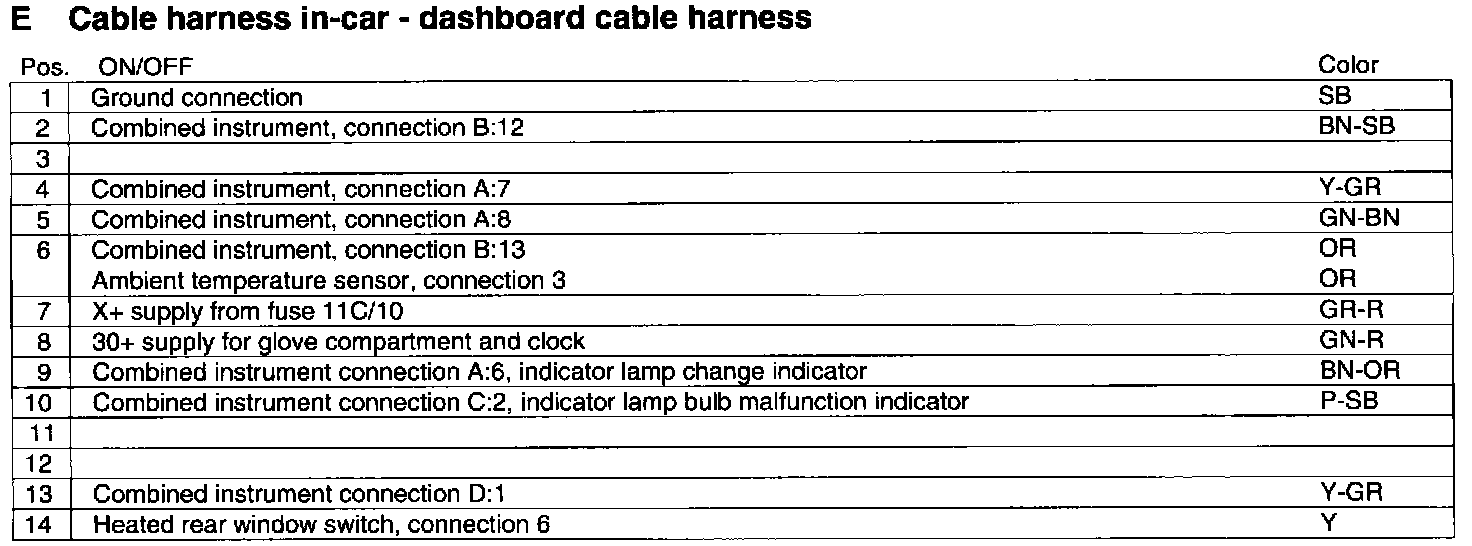

E Cable harness in-car - Dashboard cable harness

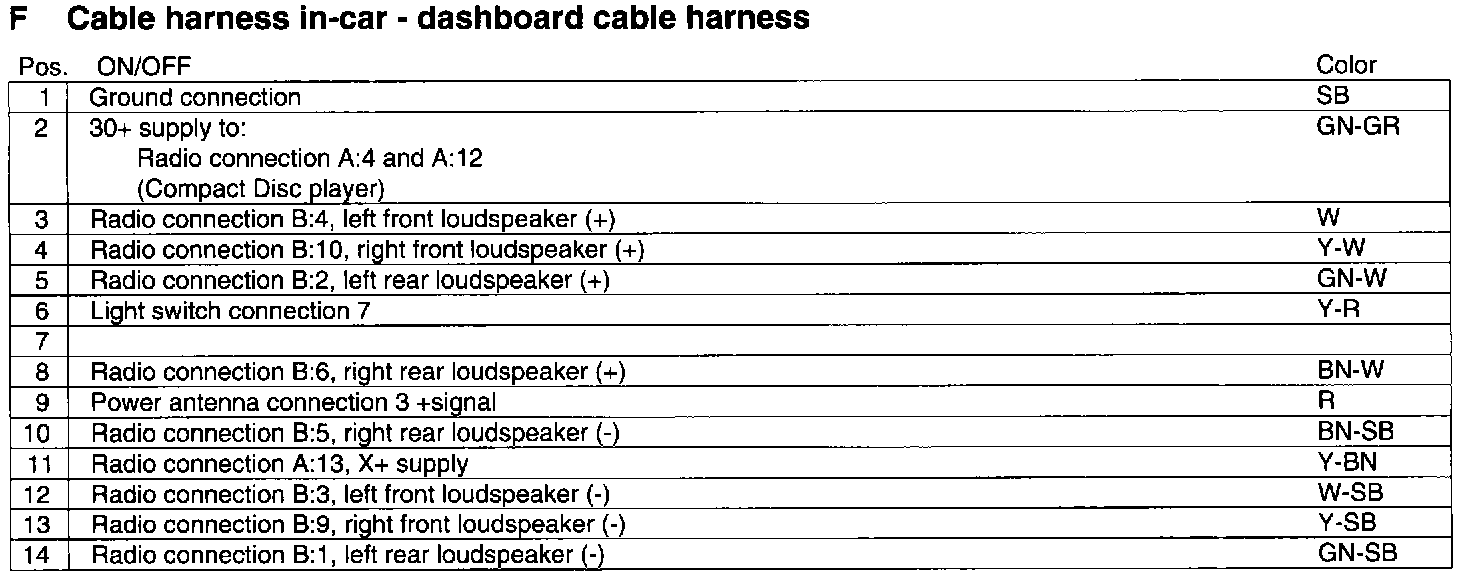

F Cable harness in-car - Dashboard cable harness
