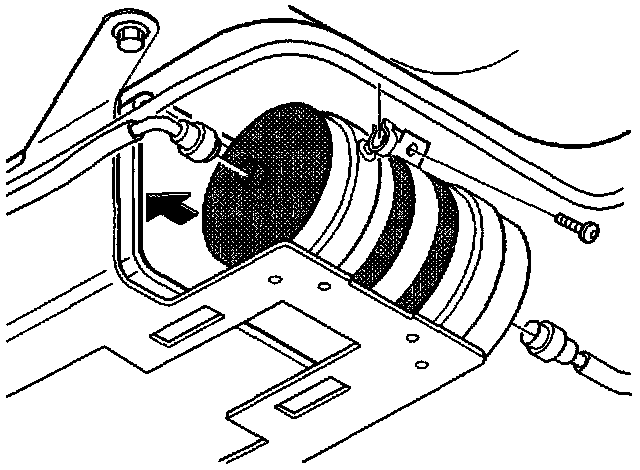

Fuel Filter: Service and Repair
Removal -
Remove
fuel filter from hose.
-
Slacken off quick-release connectors from
fuel filter using an
17 mm open wrench.
-
Remove Torx 25.
-
Open the hose clamp.
-
Pull out
fuel filter to the right.
Installing -
Install in reverse order.
