Check Of TRACS Warning Light

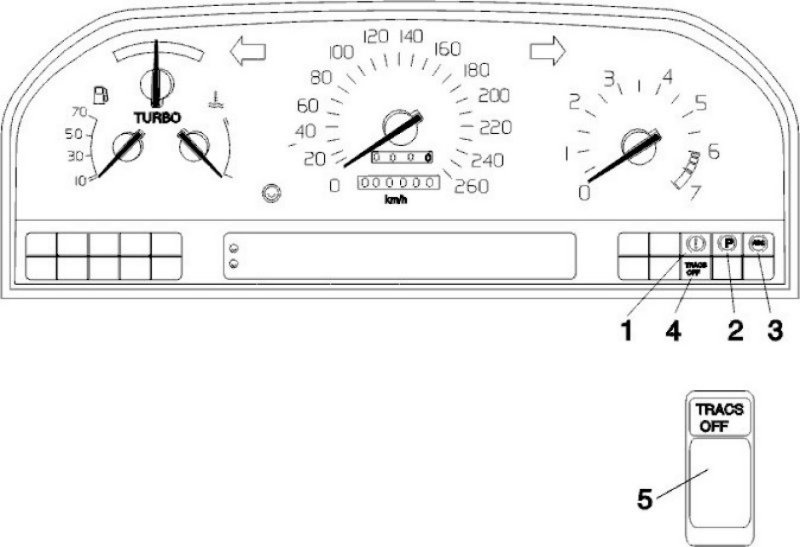

Check of TRACS warning light

Check of TRACS warning light




- Ignition off.
TRACS warning light should be off.





Is the warning light off ?

Yes - Check the instrument panel circuit

No - Check for short-circuits

-------------------------------------------------

Check for short-circuits
Check the cable between control module #15 and instrument panel A29 for short-circuiting to power Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.









Select Continue when the fault has been repaired.

Continue - Verification

-------------------------------------------------

Check the instrument panel circuit




- Ignition on.
- Disconnect the TRACS switch.





Id the warning light lit ?

Yes - Check for short-circuiting and replace the component

No - Replacement of a component

-------------------------------------------------

Check for short-circuiting and replace the component
Check the cable between control module #15 and the instrument panel for short-circuiting to ground as per Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
If the cable is OK, test with a new instrument panel.









Select Continue when the fault has been repaired.

Continue - Verification

-------------------------------------------------

Replacement of a component
Test with a new TRACS switch.

Select Continue when the component has been replaced.

Continue - Verification

-------------------------------------------------

Verification

Hint: After repair, it is necessary to check that the fault has been rectified.




- Ignition off.
- Reconnect the connections, components etc.
- Ignition on.
When the ignition is switched on, the control module activates the TRACS warning light. Check that the warning light goes off after approx. 2 seconds.

Note! The warning light will not go out if the TRACS system is disabled by the TRACS switch or if a fault is registered in the control module





Does the warning light go out shortly after it is activated ?

Yes - FAULT FOUND

No - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should be diagnosed and remedied. Since this is not the case the fault-tracing process has failed.
Complete the fault-tracing for those fault or try again.

Do you want to terminate fault-tracing at this time?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Check of TRACS warning light

-------------------------------------------------
