High and Low Beams Function Diagram

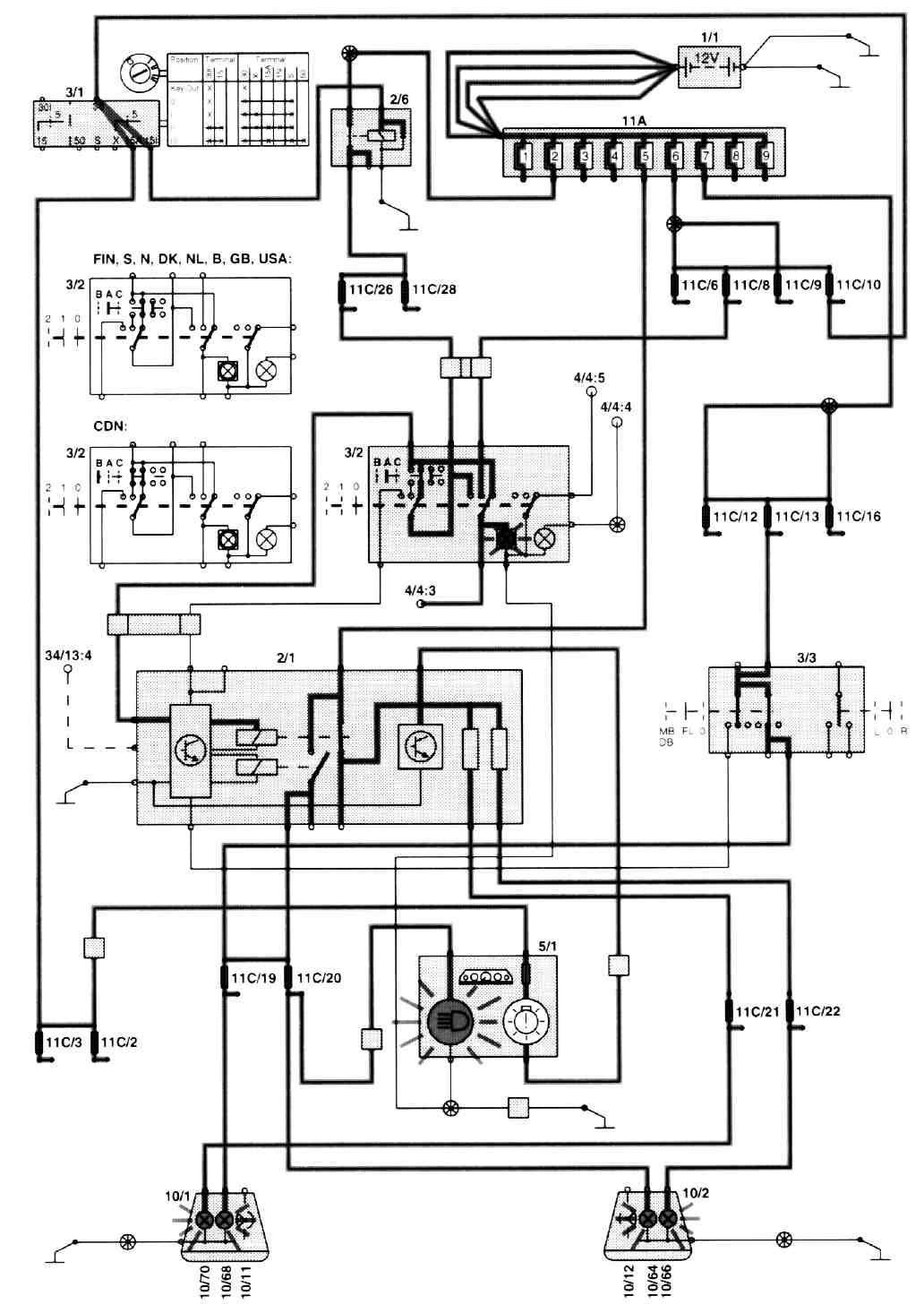

High beam

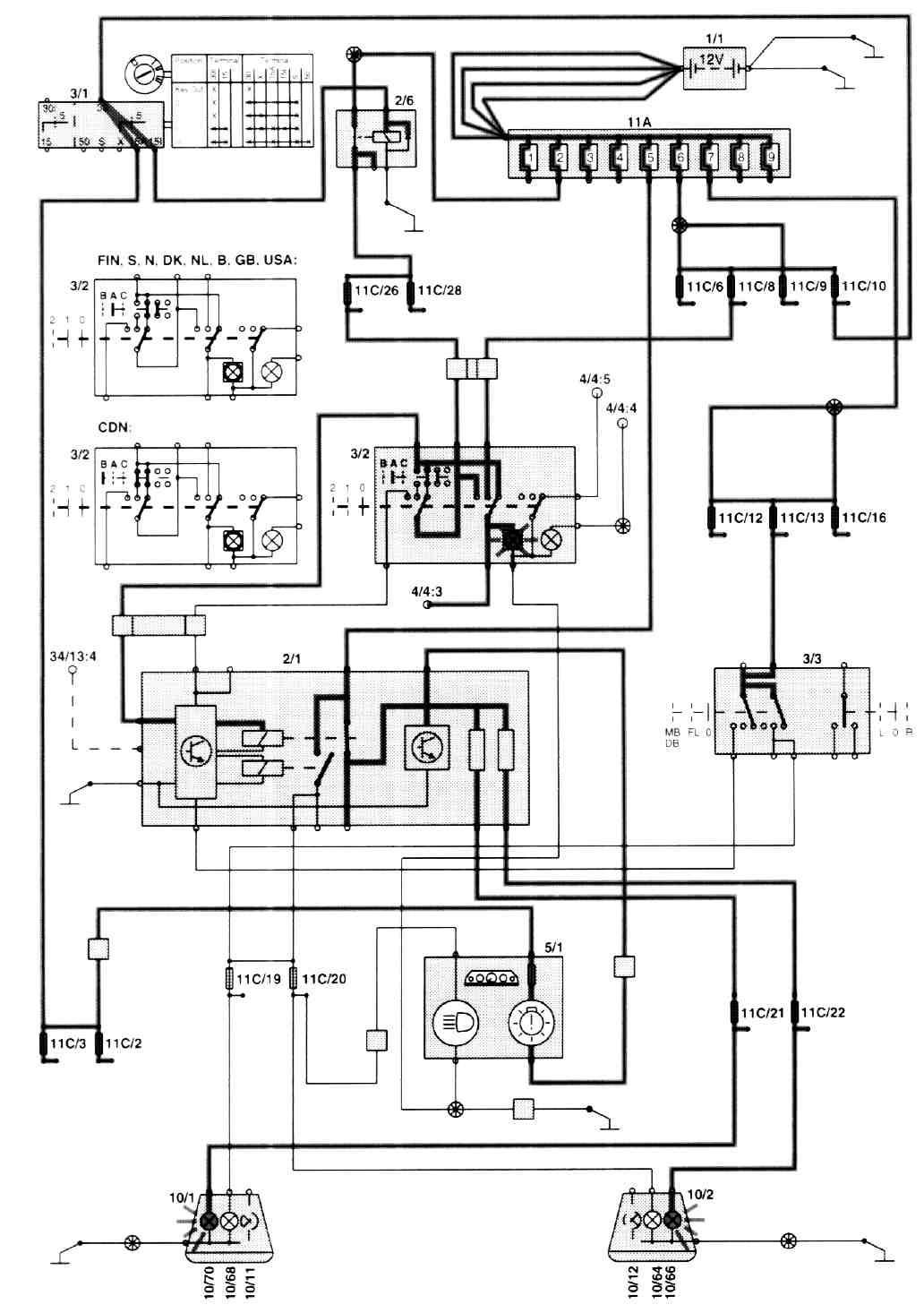

Low beam







Automatic low beam







High beam flasher
