Windshield and Headlight Wash/Wipe Function Diagram

Ignition on

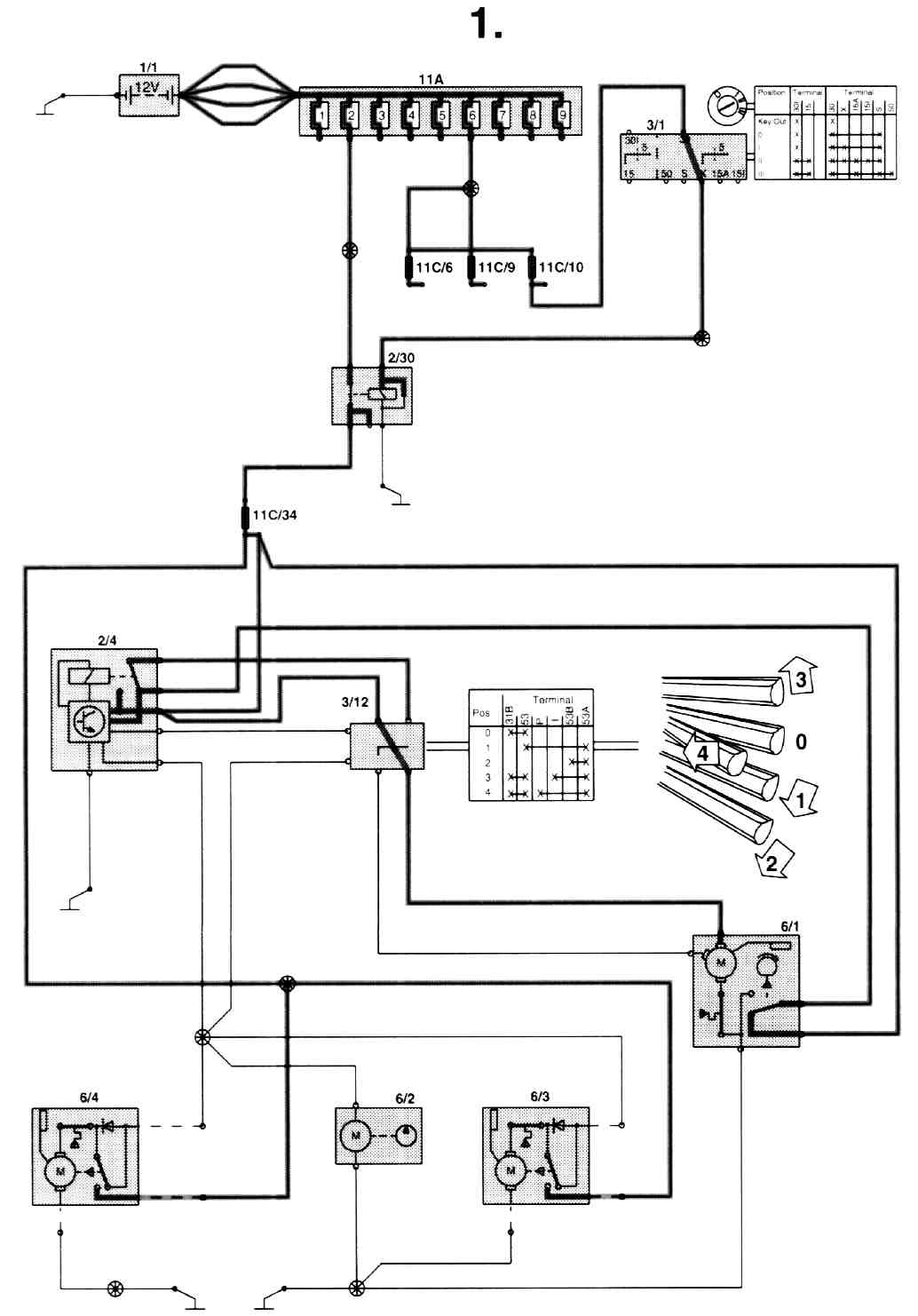

1. Windshield wiper at normal speed.





2. Windshield wiper at high speed.





3. Windshield wiper at intermittent wipe.





4. Windshield wiper and washer connected. Wiper continues for 2-3 wipes after lever released.





5. Windshield wiper at parking speed.





6. Windshield wiper in parking mode.
