Headlamp Range Adjustment

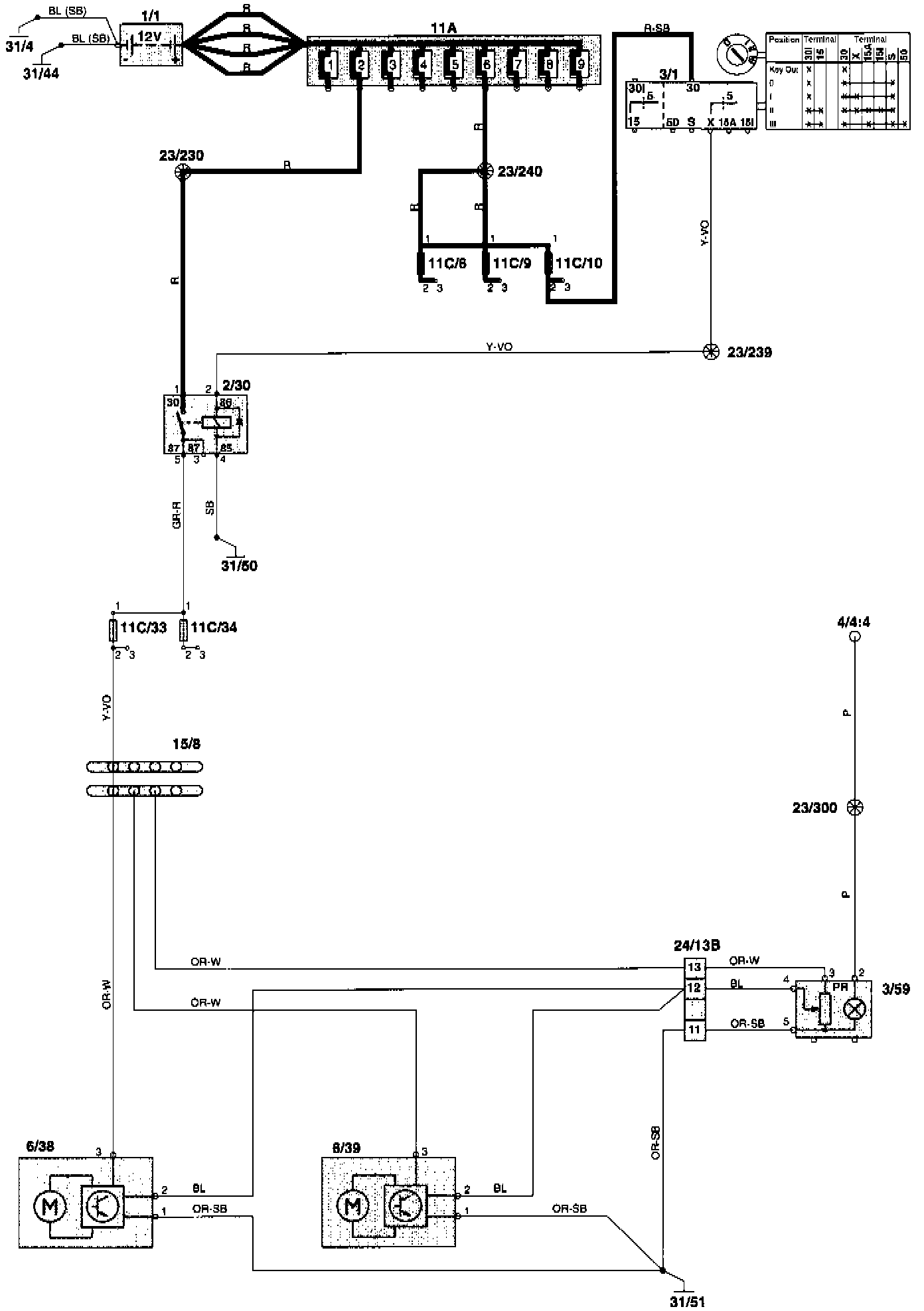

Wiring Diagram







Component Location

Component I.D. List
2/30 Overload relay X-supply
3/59 Beam height control
6/38 Headlamp height adjustment motor left
6/39 Headlamp height adjustment motor right
11C/1-40 Fuses
15/8 X-rail
24/13 Connector Dashboard harness - Engine compartment harness
31/44 Engine compartment ground point (battery ground terminal - body)
31/50 Ground rail (power ground)
31/51 Ground rail (signal ground)
