Wheels and Tires: Description and Operation

Wheel, tire, hub

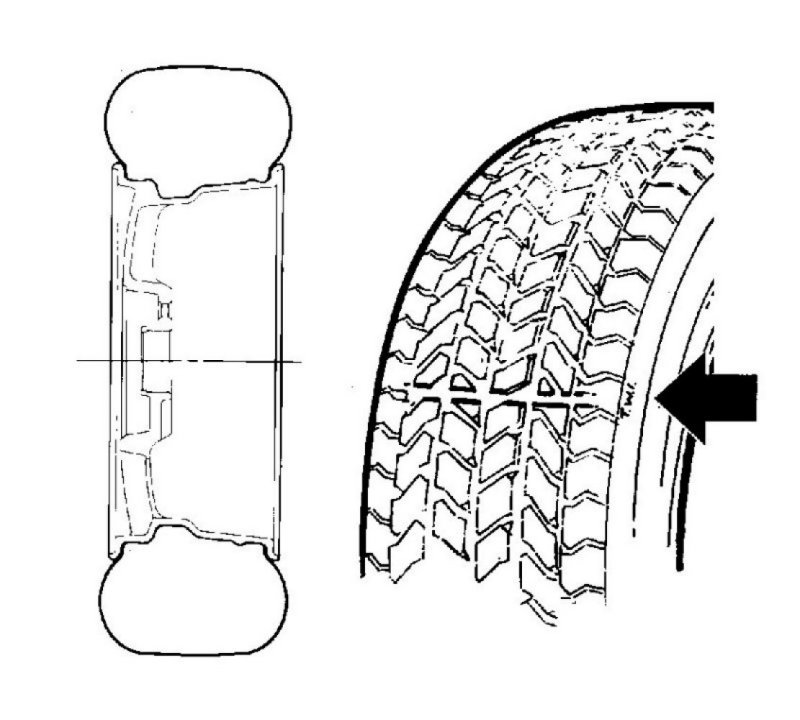

Wheel





Steel rims are the standard equipment for the car in most markets. However the Turbo has aluminum rims as standard
Wheel rim size is 6" x 15"
6 = rim width in inches
15 = rim diameter
The wheel is secured to the hub with 4 or 5 wheel studs.

The car can be optionally equipped with aluminum rims
The rim sizes are 6 x 15", 6.5" x 15", 6.5" x 16", 7 x 17".

Tires





The are five tire sizes
185/65 R15, 195/60 R15, 205/55 R15, 205/50 R16 and 205/45 R17.
The spare wheel (Temporary spare) is size
T 115 / 70 R15.
195 = section width in mm.
60 = relationship between the tire height and breadth in percent.
R = radial tire
15 = tire inner diameter in inches
A tire wear indicator in the form of a lateral line appears in the tread when there is approximately 1.6 mm of the tread pattern remaining.

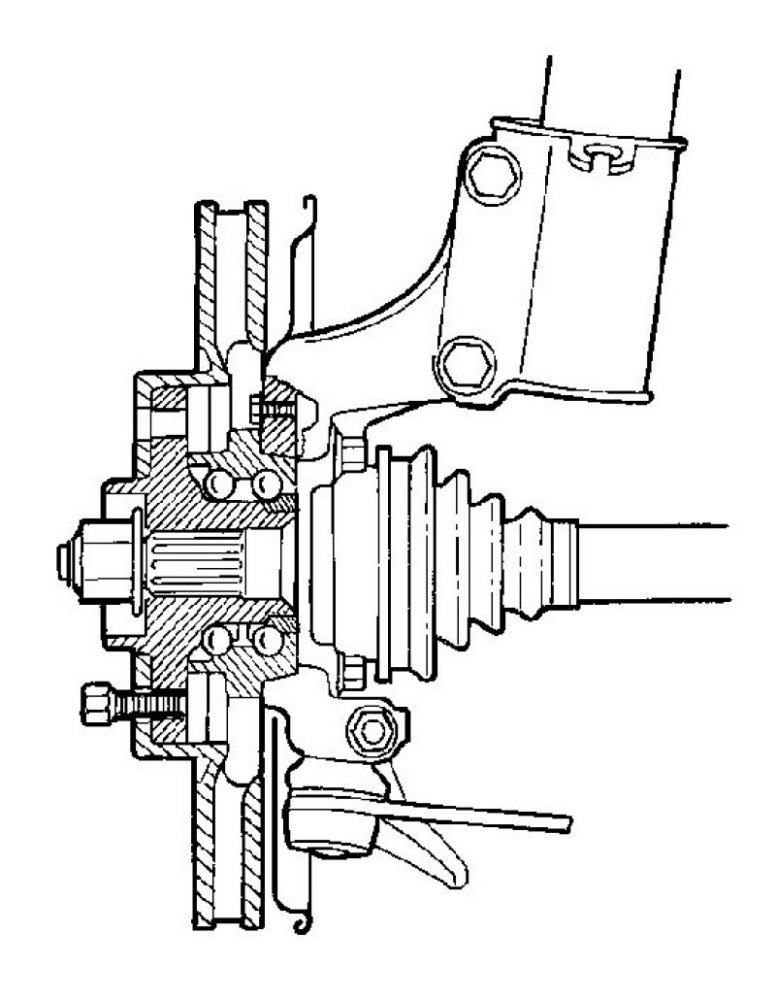

Hub




The hub is of the double row angular contact bearing type. It is designed so that the part of the hub which is in contact with the brake disc forms the hubs inner ring. The part of the hub which is in contact with the stub axle forms the hub outer ring. No tightening is necessary during servicing. The hub is completely maintenance free.
