Special Tools, In Repair Kit P/N 9814235

Special tools, in repair kit p/n 9814235

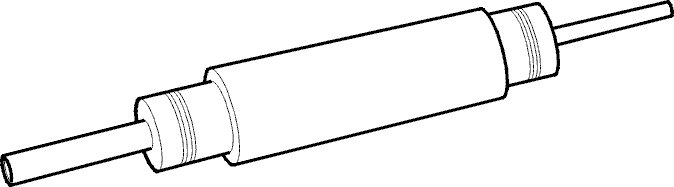

Terminal removal tool
The terminal removal tool is used for removing cable terminals from connector housings.
Supplementary kits may be introduced later.





Terminal removal tool, p/n 9814228
For cable terminals type 2.8 Tab steel sws, 2.8 Timer, 2.8 Timer sws, and 6.3 Timer.
The tool is used when the housing cavity opening has two extraction grooves.





Terminal removal tool, p/n 9814229
For cable terminal types: 2.8 Tab, 2.8 Tab sws, 2.8 Timer and 6.3 Tab/Receptacle terminal.
The tool is used when the housing cavity opening has one extraction groove.





Terminal removal tool, p/n 9814230
For cable terminals of type 2.1 Pin/Socket and 3.5 Pin/Socket.
The tool is used for round housing cavity openings.

Crimp tool

Crimp tool
There are 5 crimp tools in the repair kit.
Additional crimp tools may be added subsequently to the kit.

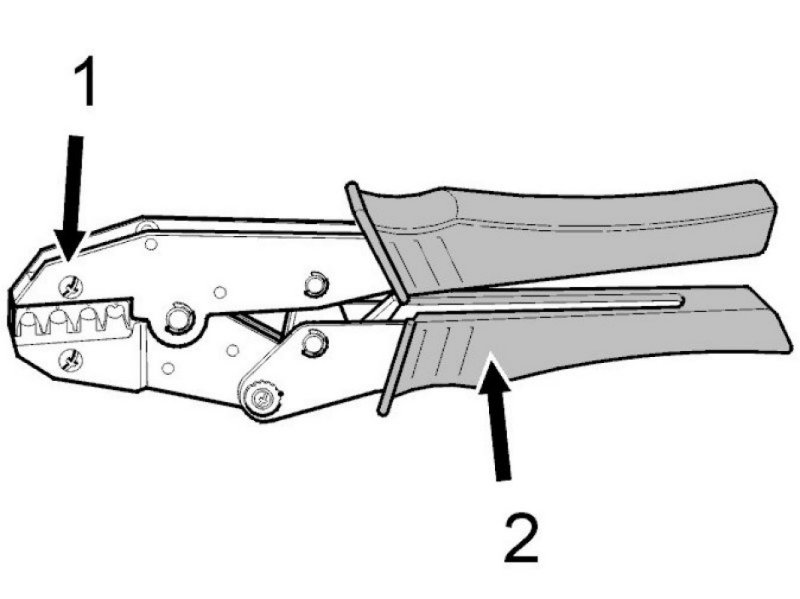

Crimper head
Crimp tools have different crimper heads fitted. The tool part number (1) is stamped on upper edge of the crimper head.

Color coded grip
The plastic covering on the grip (2) is color-coded as below.

The crimp tools are intended for the following cable terminals:

Crimp tool (black), p/n 9814223
For type M6 Ring, 2.8 Tab, 6.3 Timer, 6.3 Receptacle terminal and 6.3 Tab cable terminals.

Crimp tool (red), p/n 9814224
For type 2.8 Timer sws (Single Wire Seal), 2.8 Tab sws and 2.8 Tab steel sws cable terminals.

Crimp tool (yellow), p/n 9814225
For type 2.8 Tab cable terminals.

Crimp tool (green), p/n 9814226
For type 1.6 Plug and 1.6 Pin cable terminals.

Crimp tool (blue), p/n 9814227
For type 3.5 Plug and 3.5 Pin cable terminals.
