Replacing Transmission Speed Sensor

Replacing transmission speed sensor





Remove:
- The battery
- Air cleaner housing ACL complete with intake pipe
- Battery shelf.
Remove:
- Air cleaner (ACL) housing bracket.

Disassembling connectors




Remember rubber gasket.

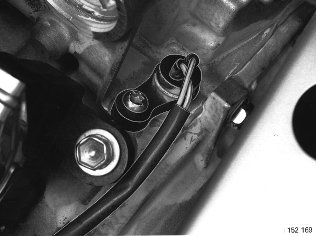

Detach connector from transmission.
Remove cable clamps around cable harness and rubber grommet.

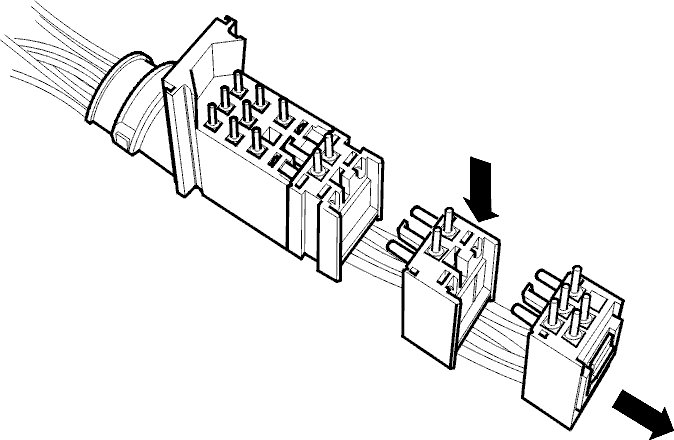

Remove sockets from connector casing.
Insert screwdriver between casing and socket and press catch in. Press sockets from casing.





Remove socket for rpm sensor cables.
2-pin, pins 16 and 17.

Removing sensor




Clean thoroughly round the sensor.
Remove sensor.
Install new sensor.
Rub some petroleum jelly on the sensor O-ring.
Tighten to: 5.5 Nm .

Assembling connector




Ensure that rubber seal is in position.
Secure harness and rubber sleeve with cable ties.
Reinstall connector on transmission.
Plug in connector from car.
Note the rubber seal.





Install:
- Air cleaner (ACL) housing bracket
- The battery shelf
- Air cleaner (ACL) housing with fresh air hose and connections
- The battery

Checking diagnostic trouble codes (DTCs)
Check and erase diagnostic trouble codes (DTCs).
