Fuel Filter: Service and Repair

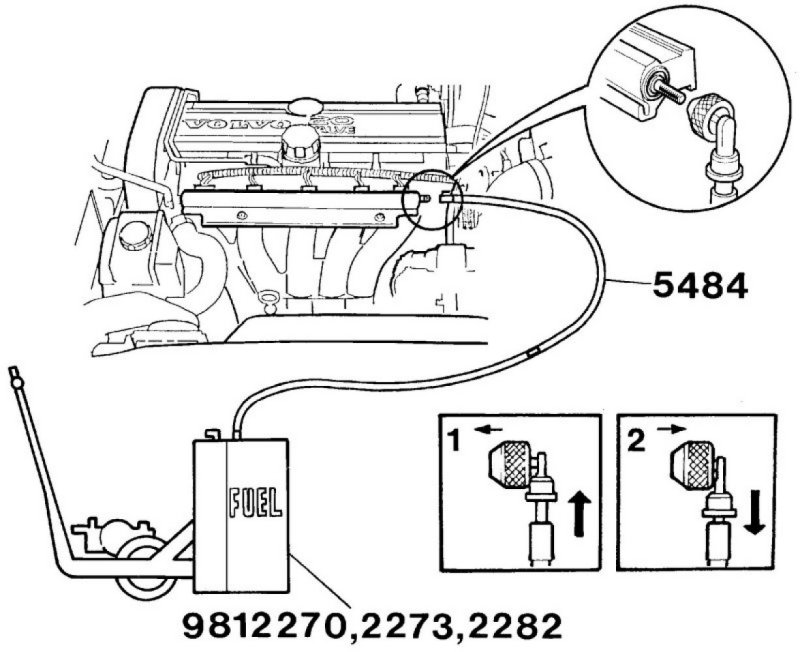

Fuel filter, replacement Draining the fuel system -
Drain the fuel system, see
Service and Repair.
Removing the fuel filter Detach the snap-on couplings from the
fuel filter, using a 17 mm wrench to retract the sleeves.
-
Undo the bolt holding the clamp round the filter.
-
Change the filter.
Refit in reverse order.
