Late

Connector Locations/Views

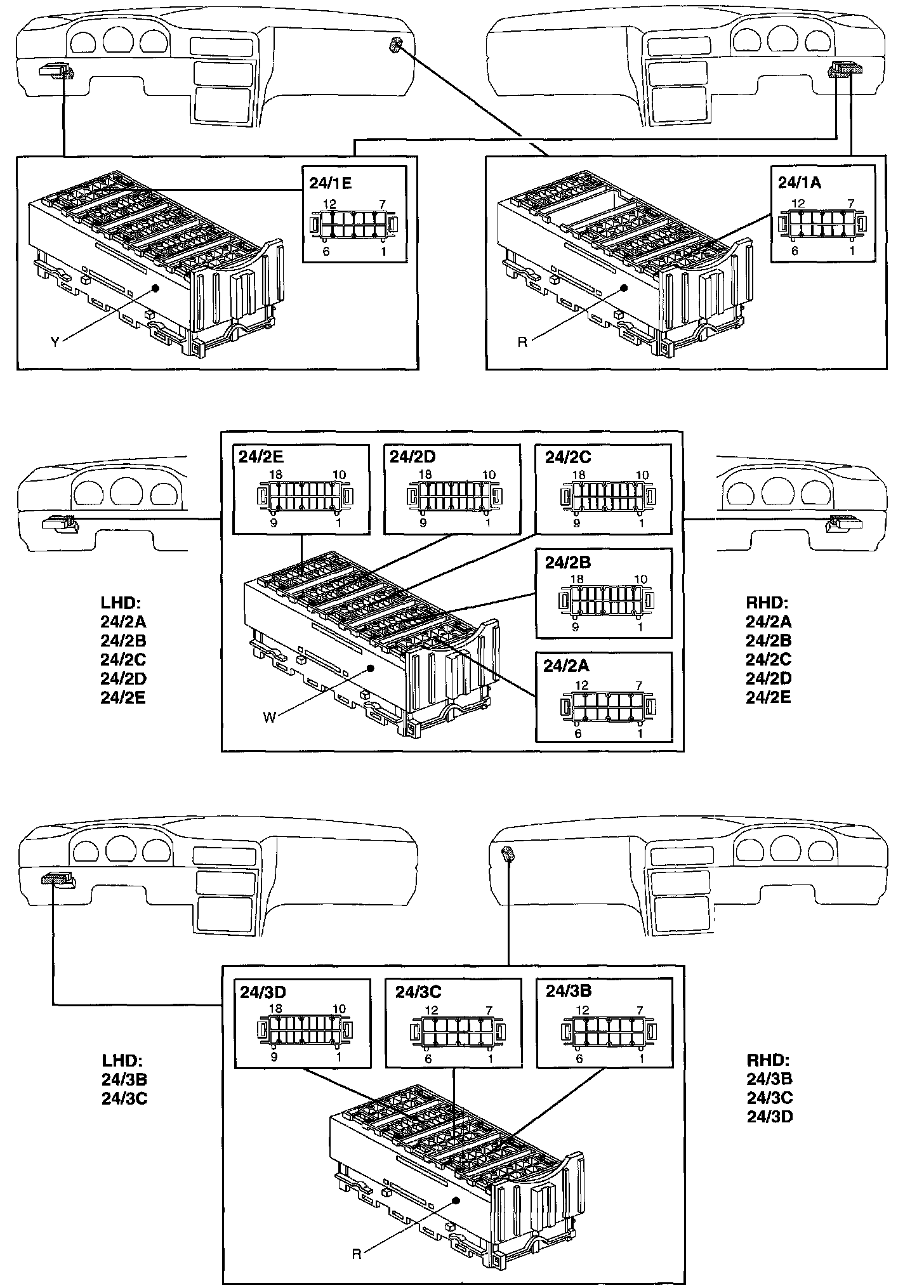

Connectors 24/1E through 24/3D:

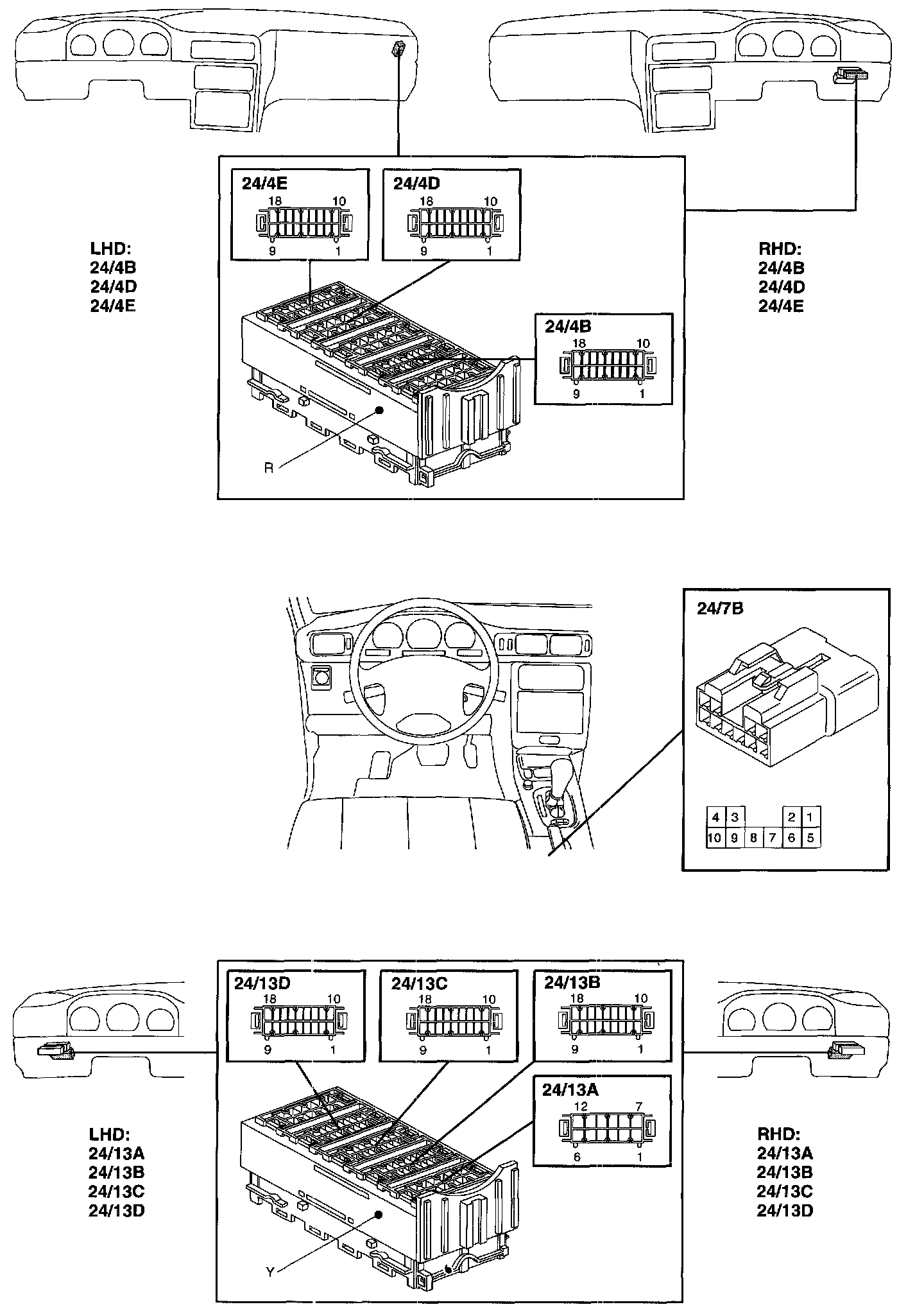

Connectors 24/4B - 24/13D:

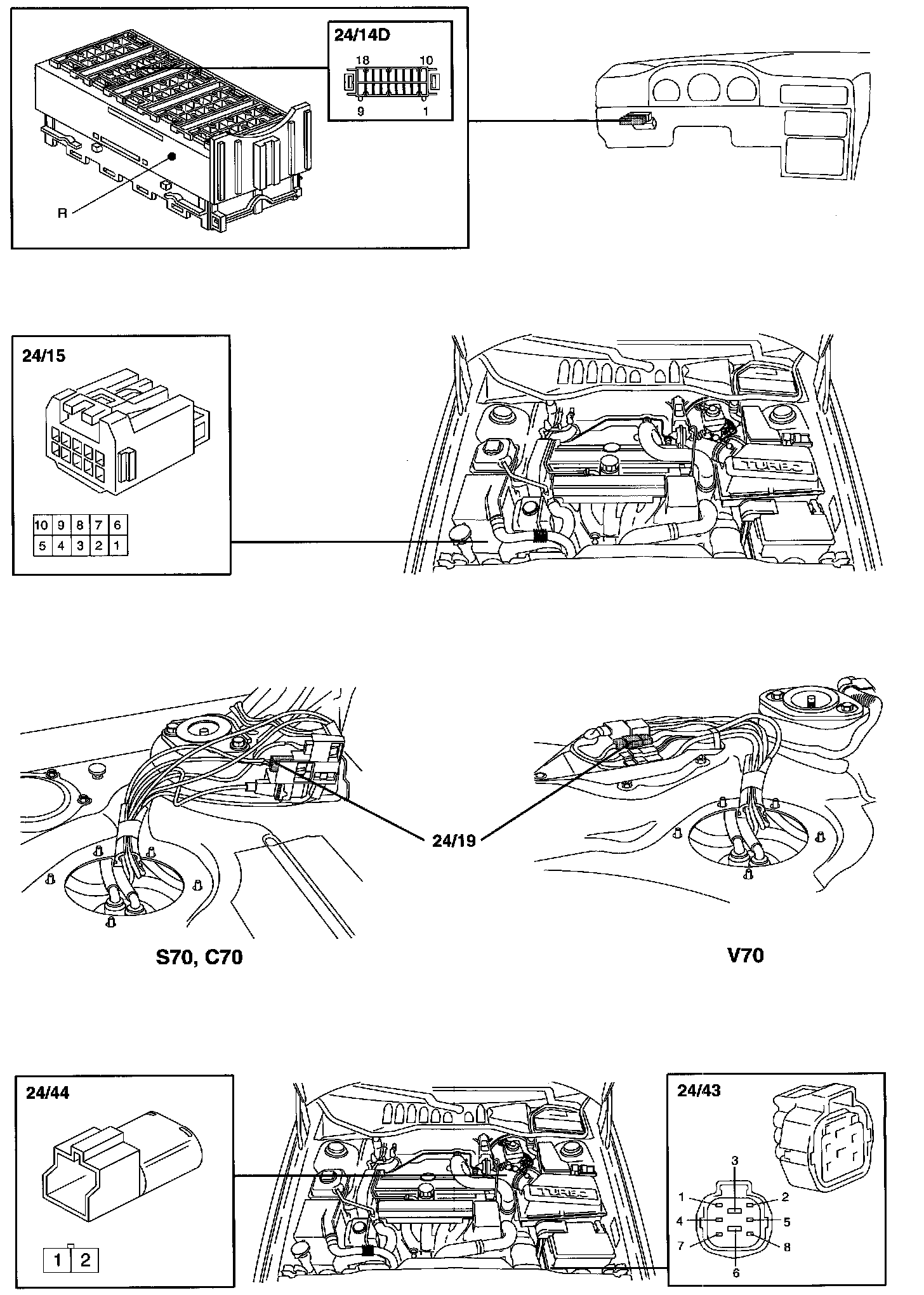

Connectors 24/14D - 24/43:

Connectors 24/53 - 24/71:

Connector Pin Out Information

Connector - 24/1A:

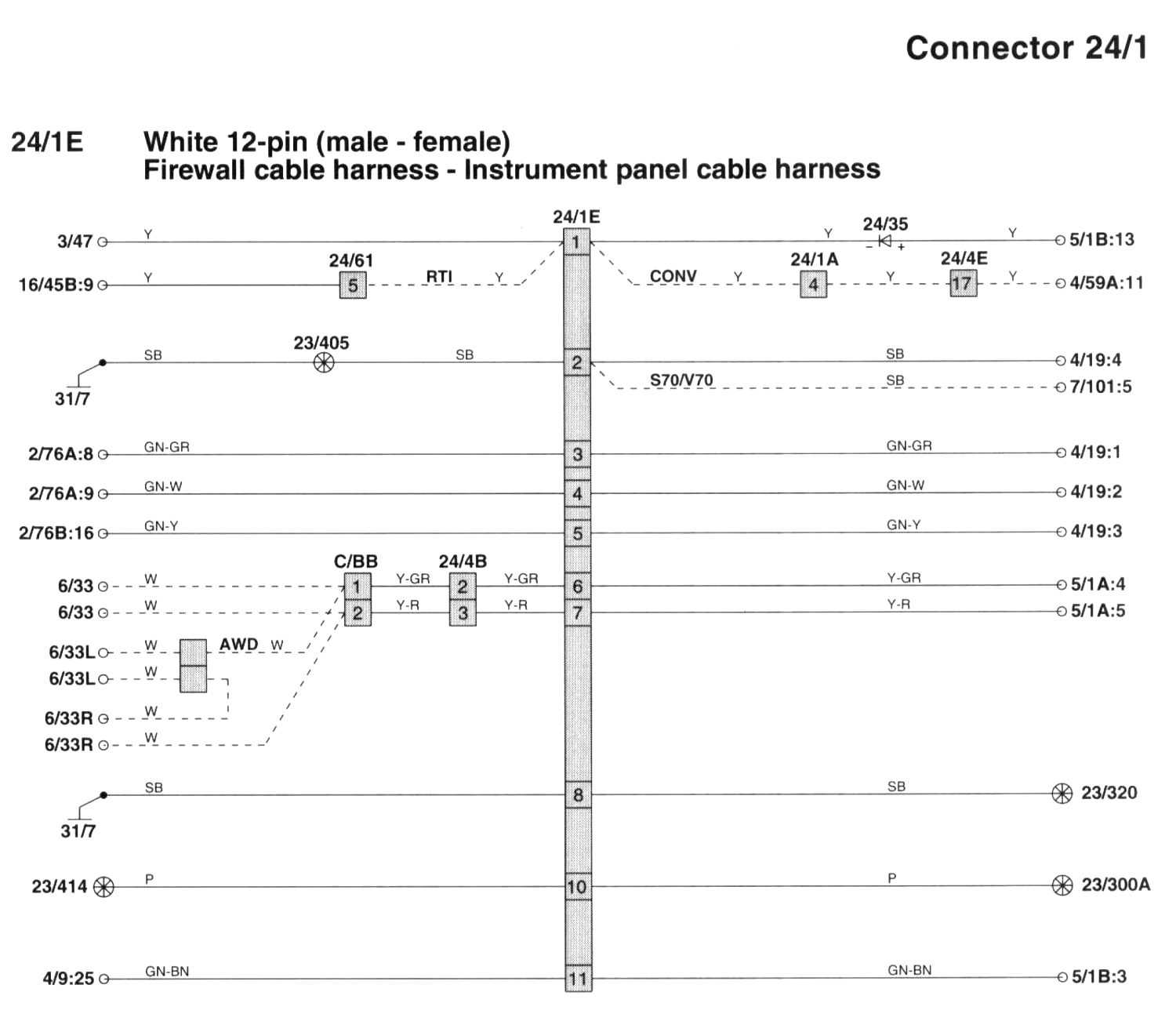

Connector - 24/1E:

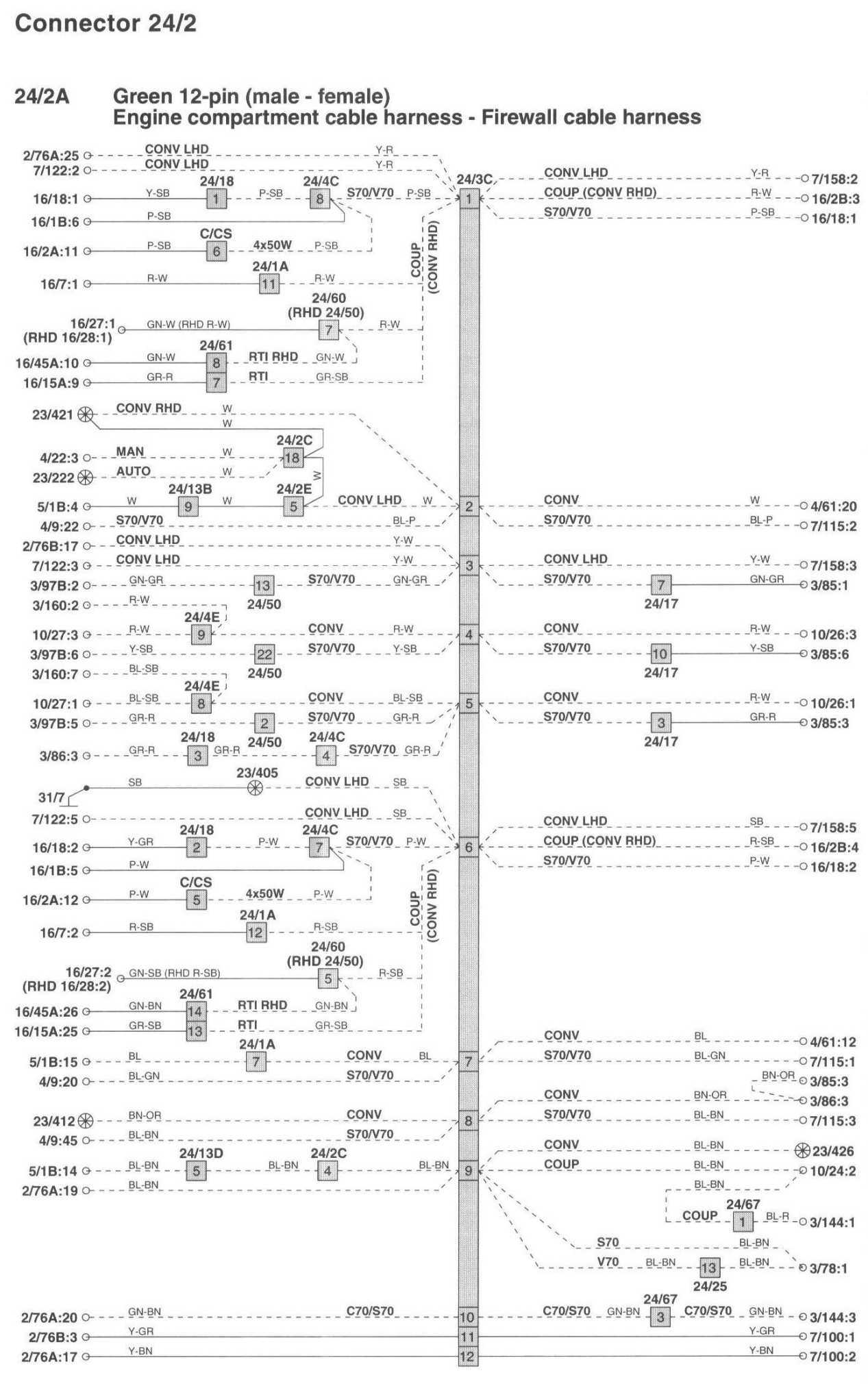

Connector - 24/2A:

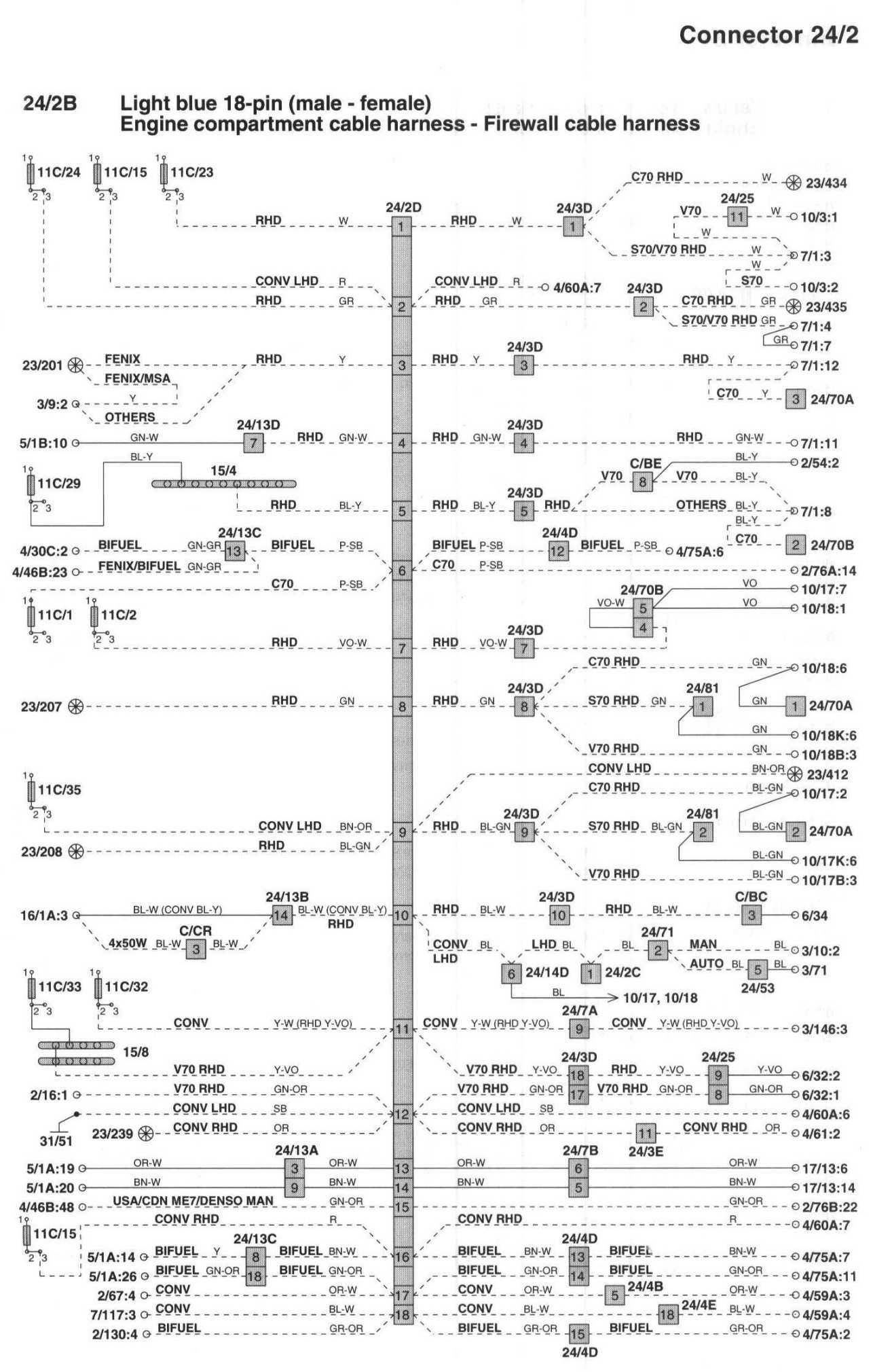

Connector - 24/2B:

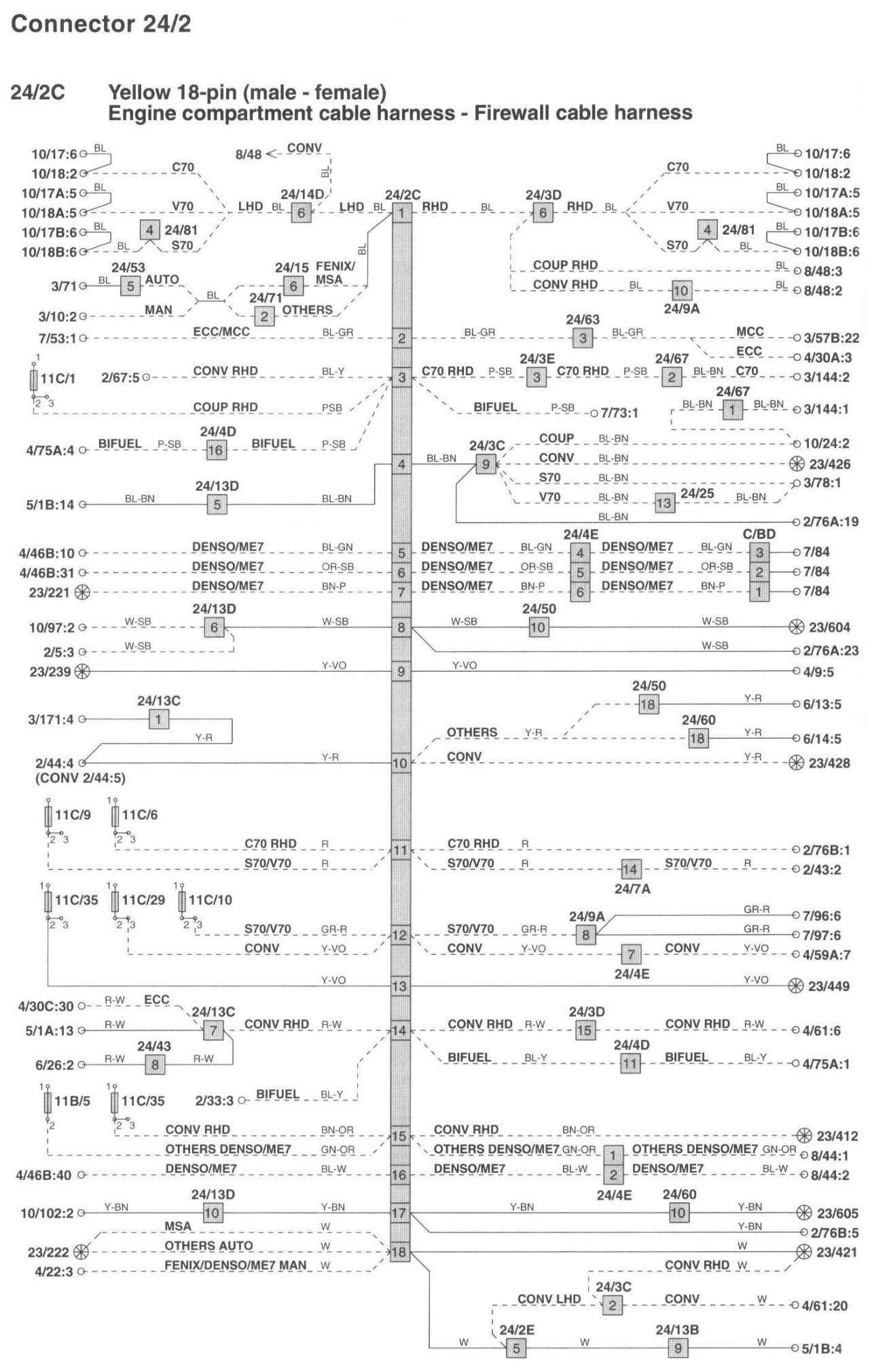

Connector - 24/2C:

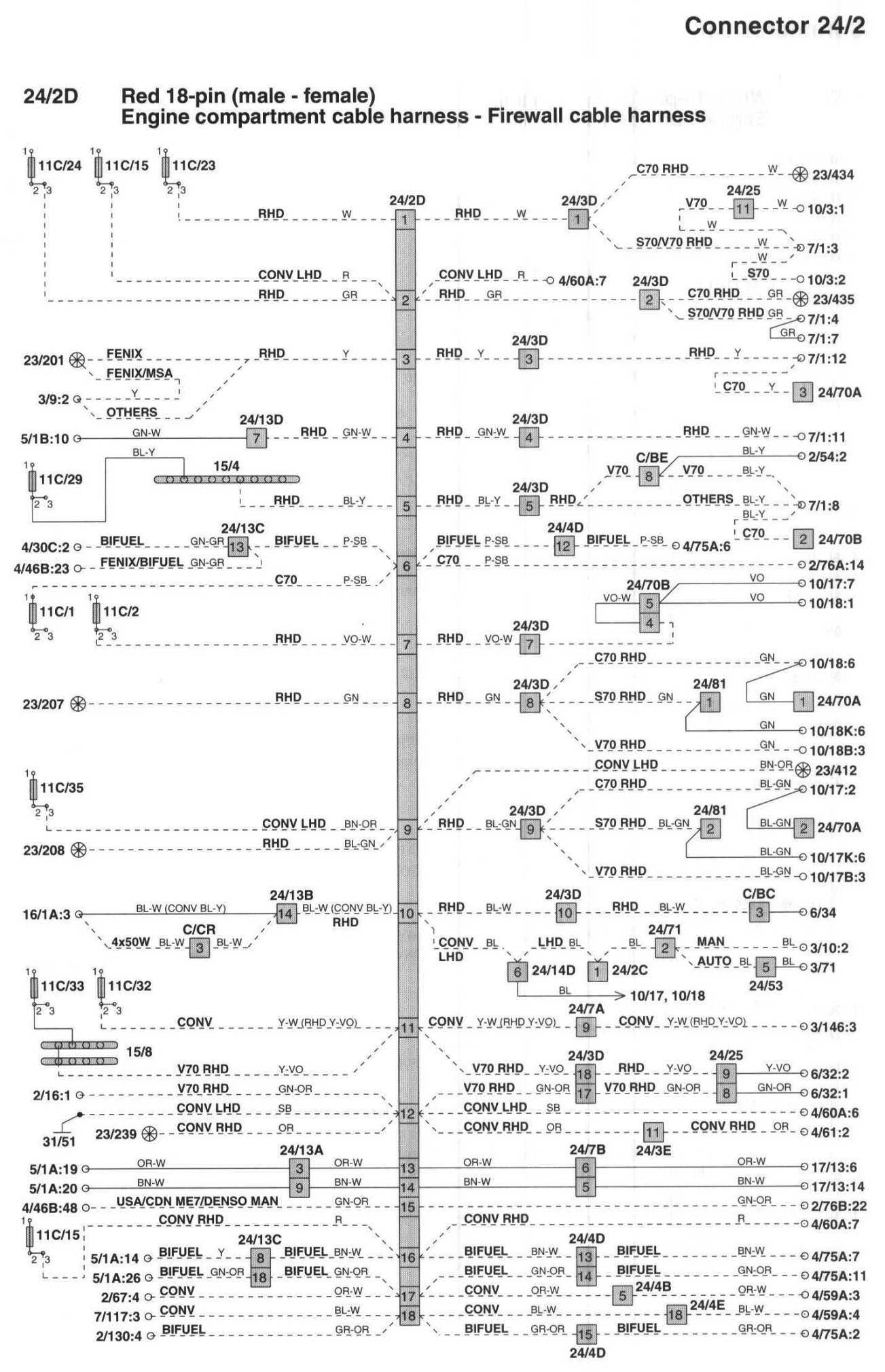

Connector - 24/2D:

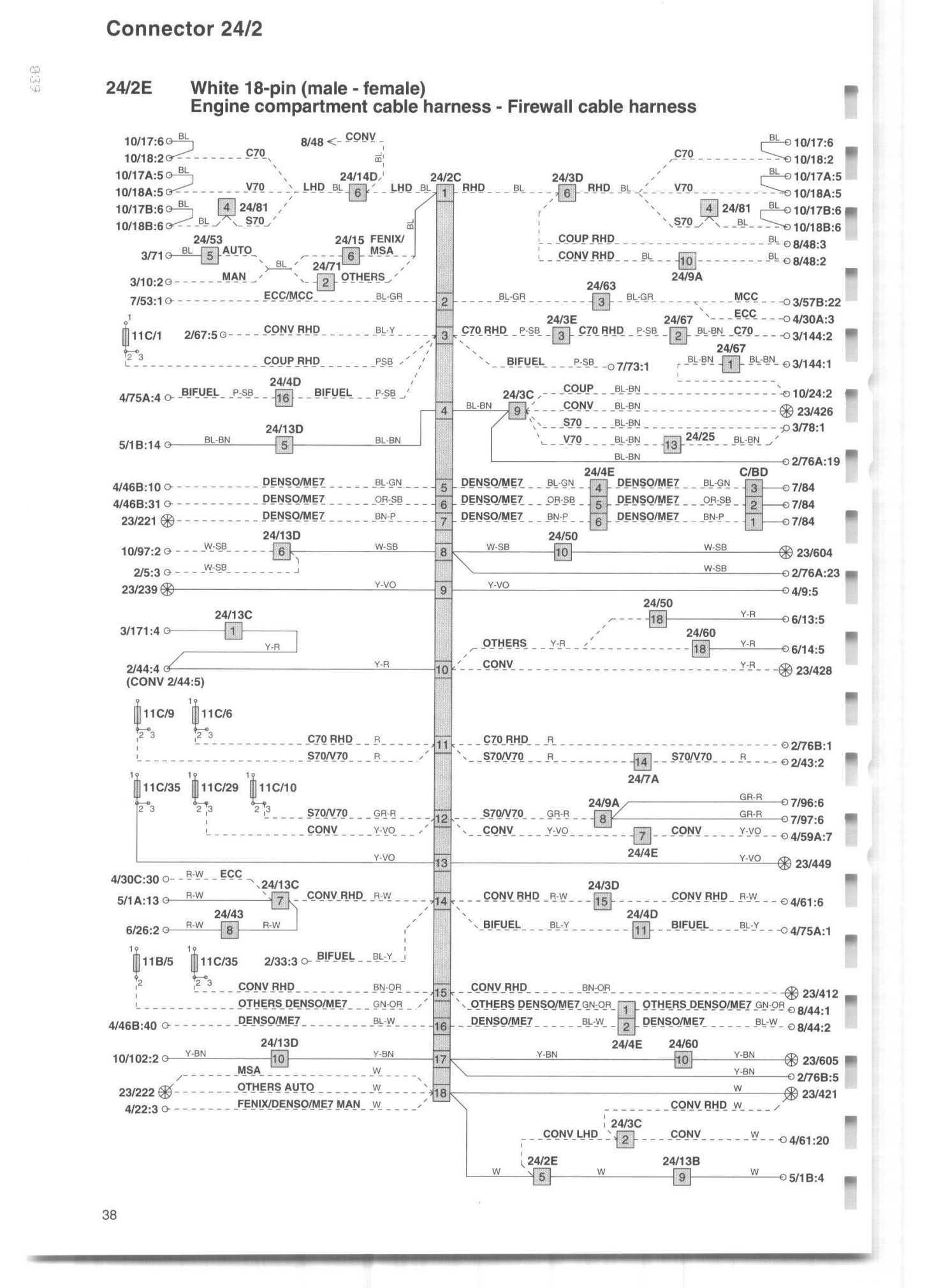

Connector - 24/2E:

Connector - 24/3B:

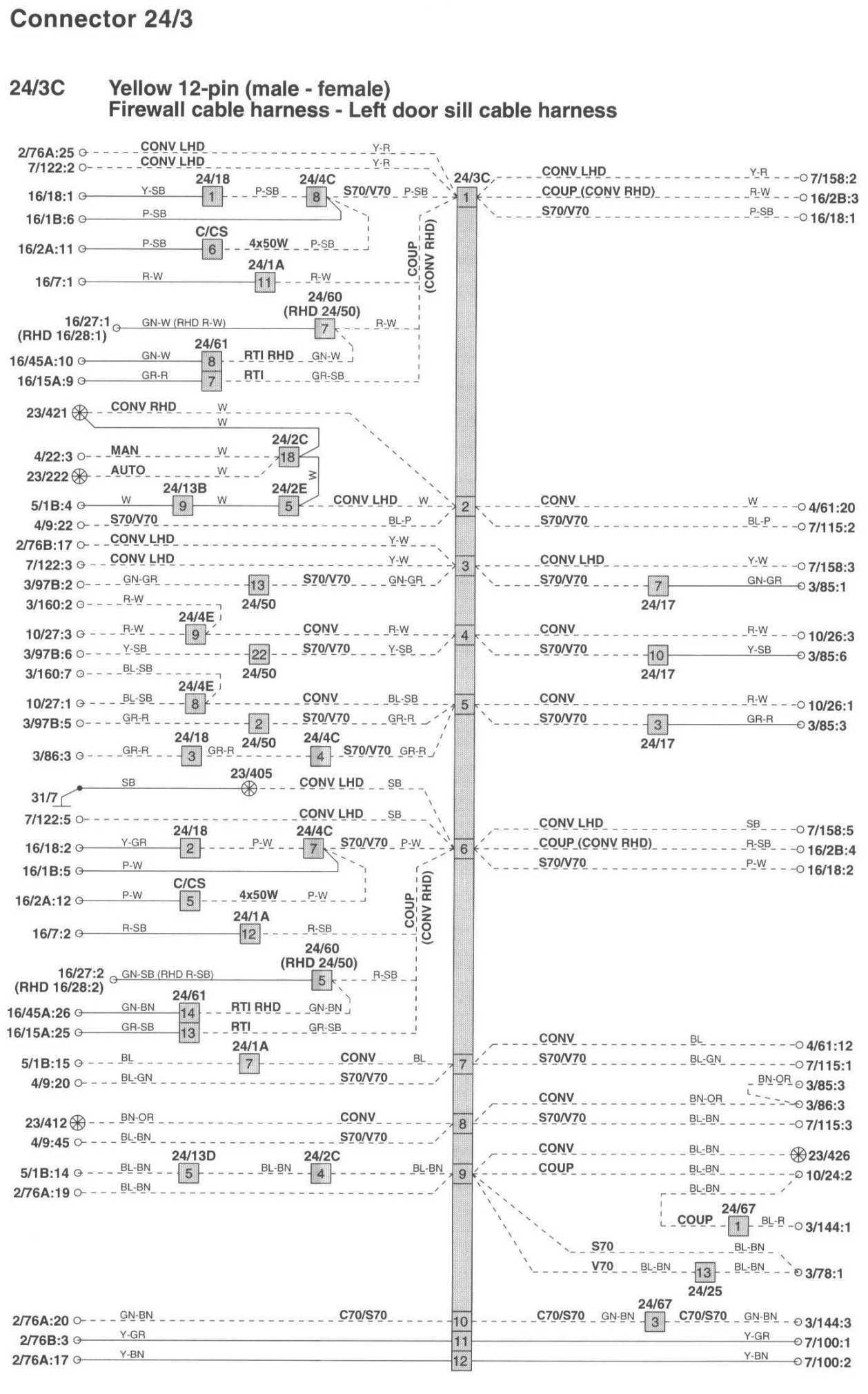

Connector - 24/3C:

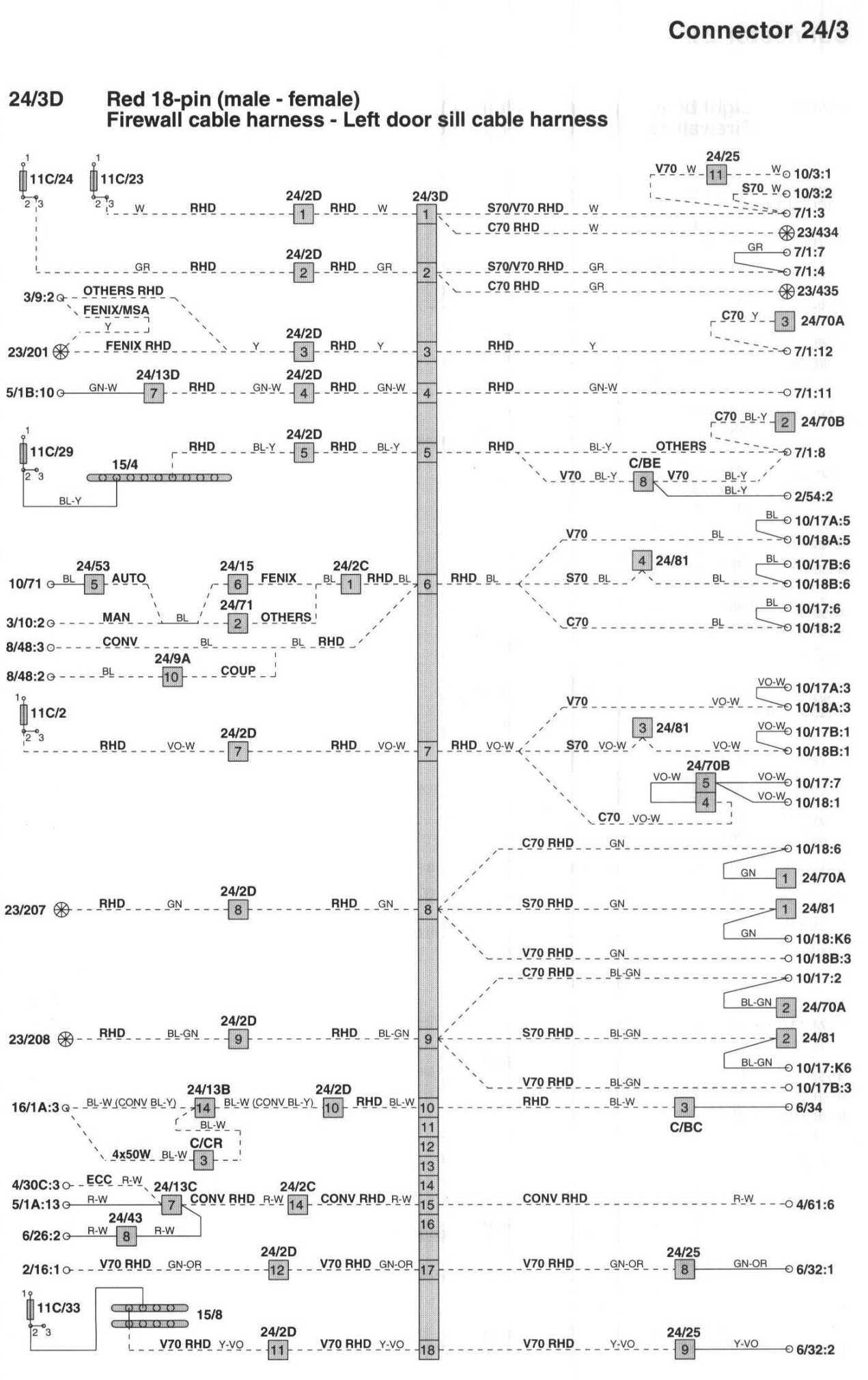

Connector - 24/3D:

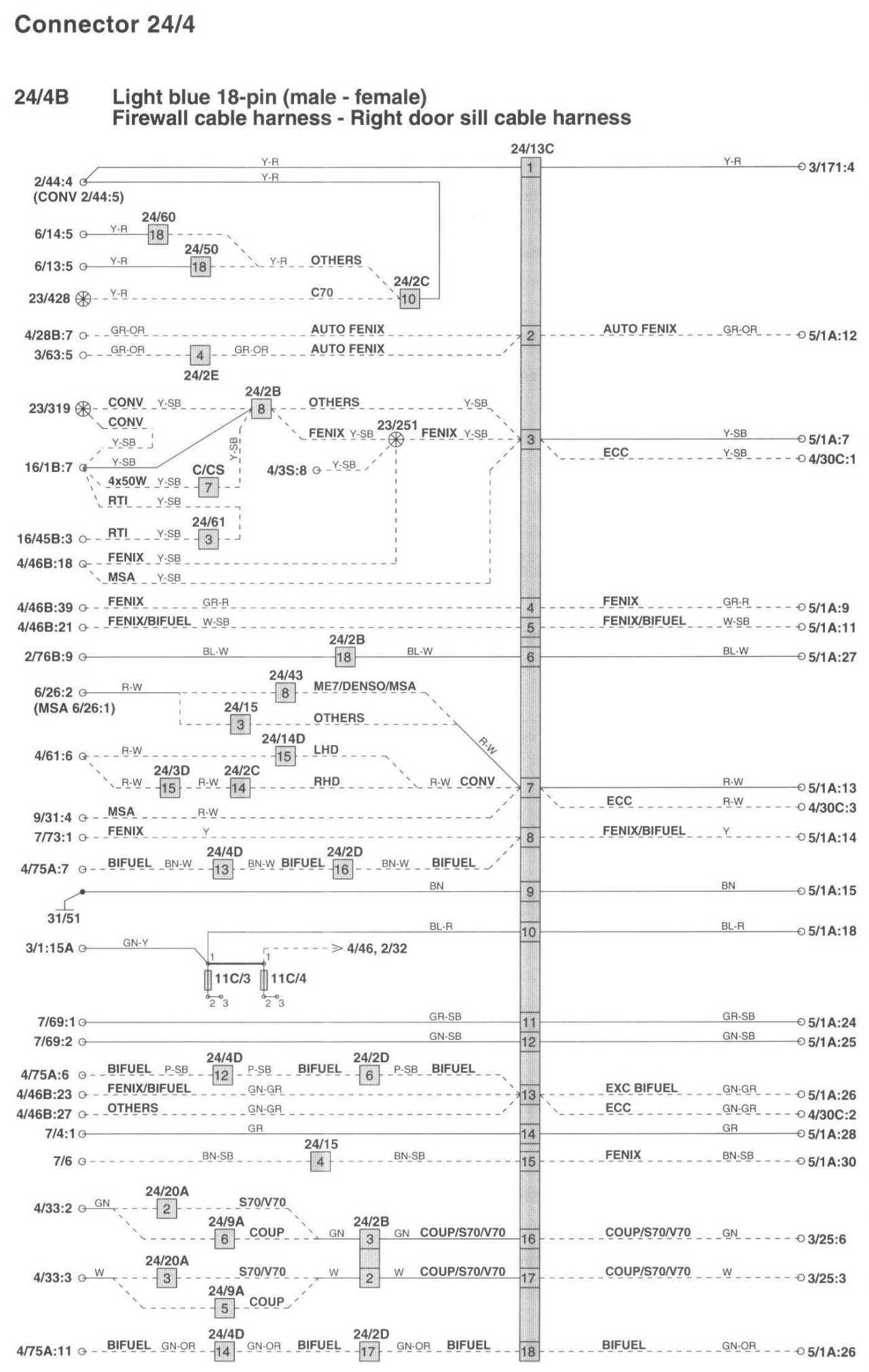

Connector - 24/4B:

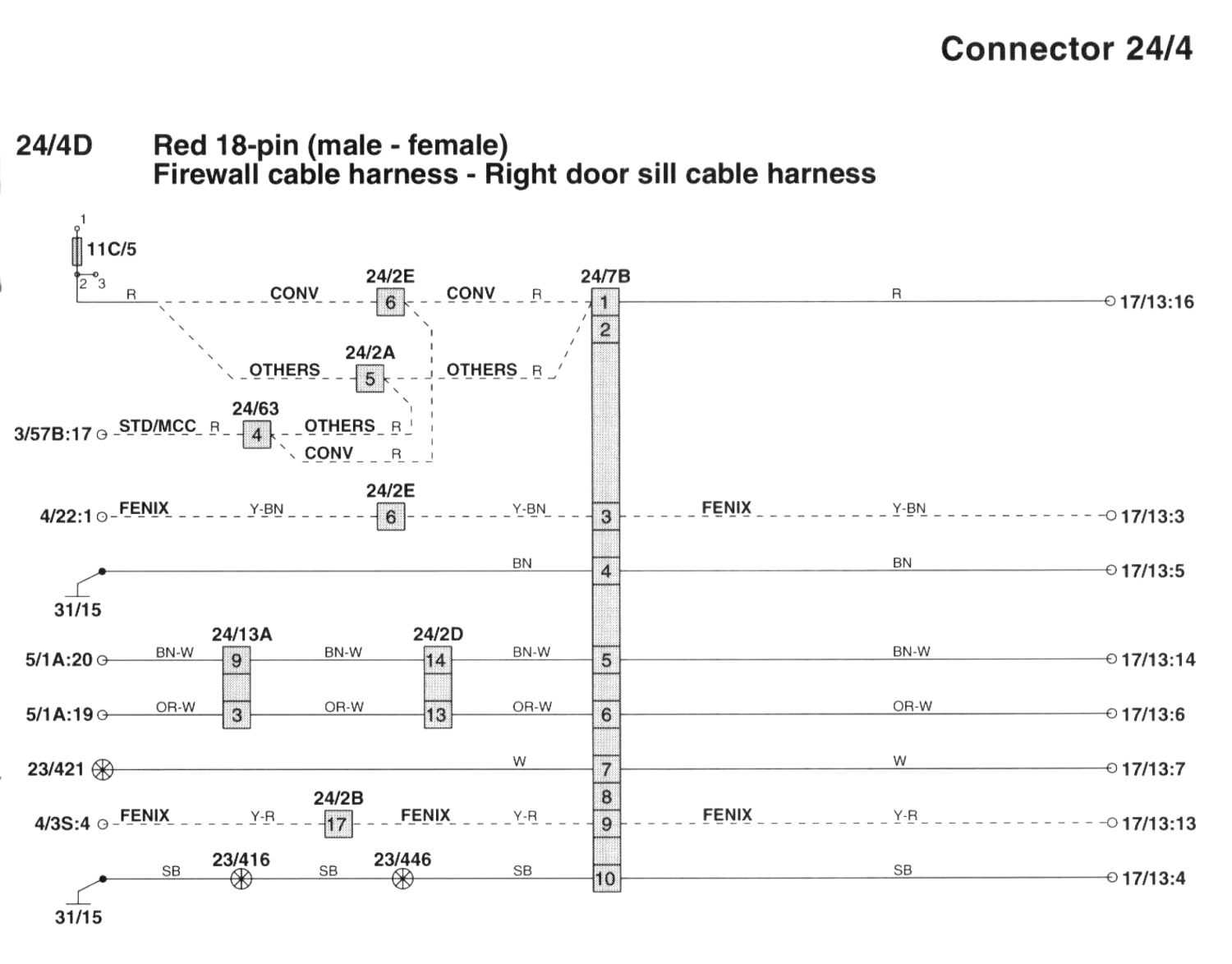

Connector - 24/4D:

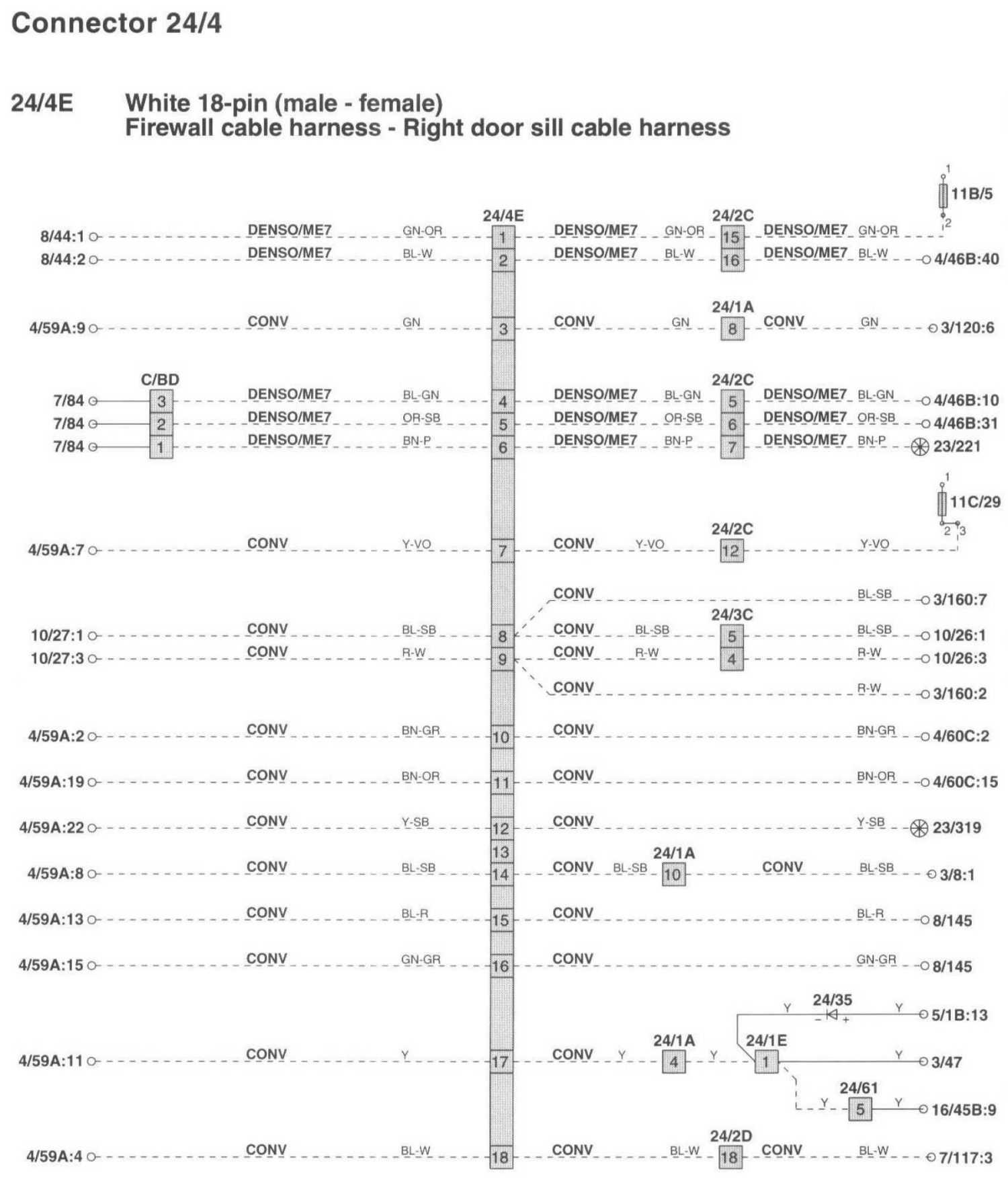

Connector - 24/4E:

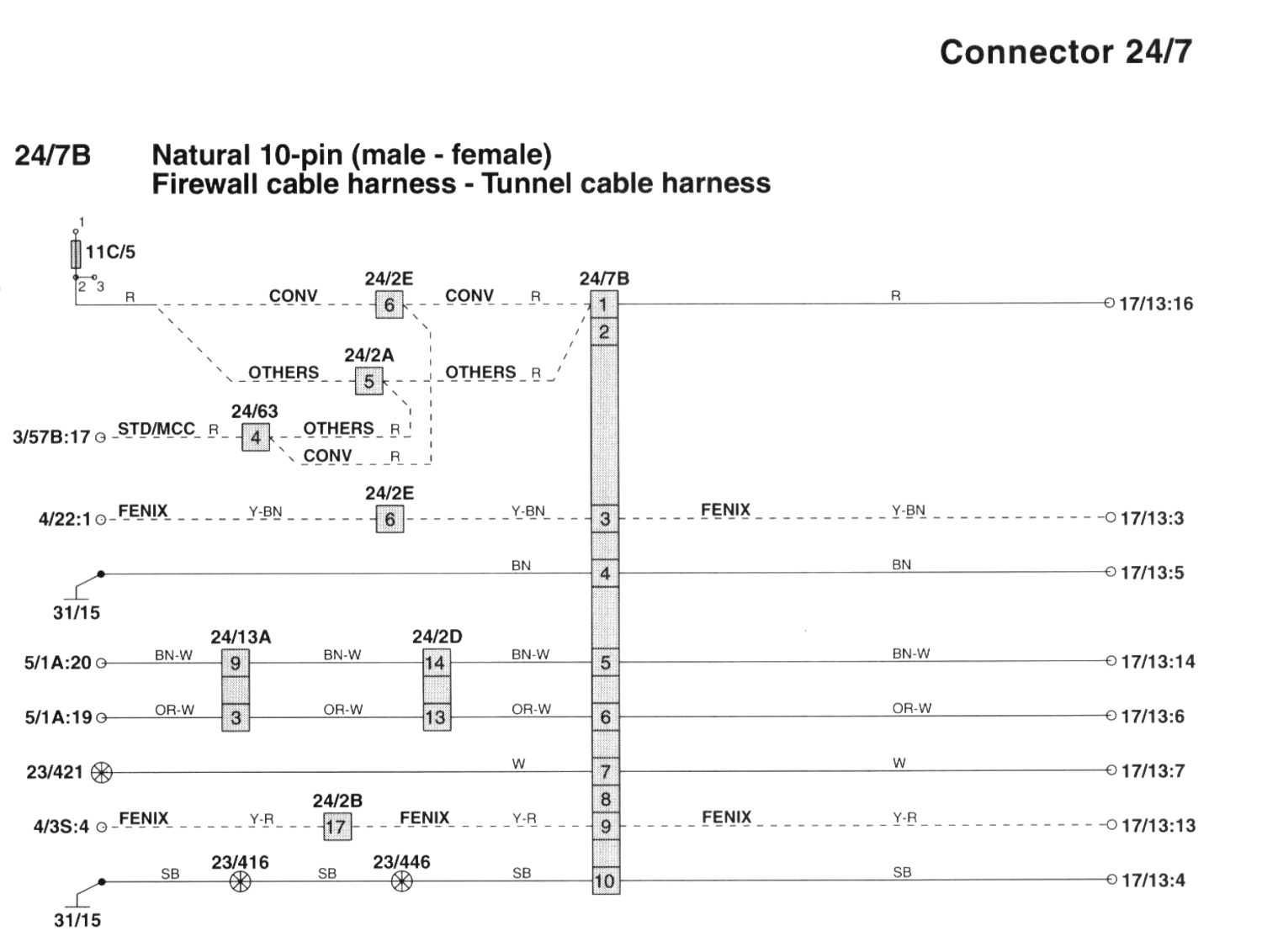

Connector - 24/7B:

Connector - 24/13A:

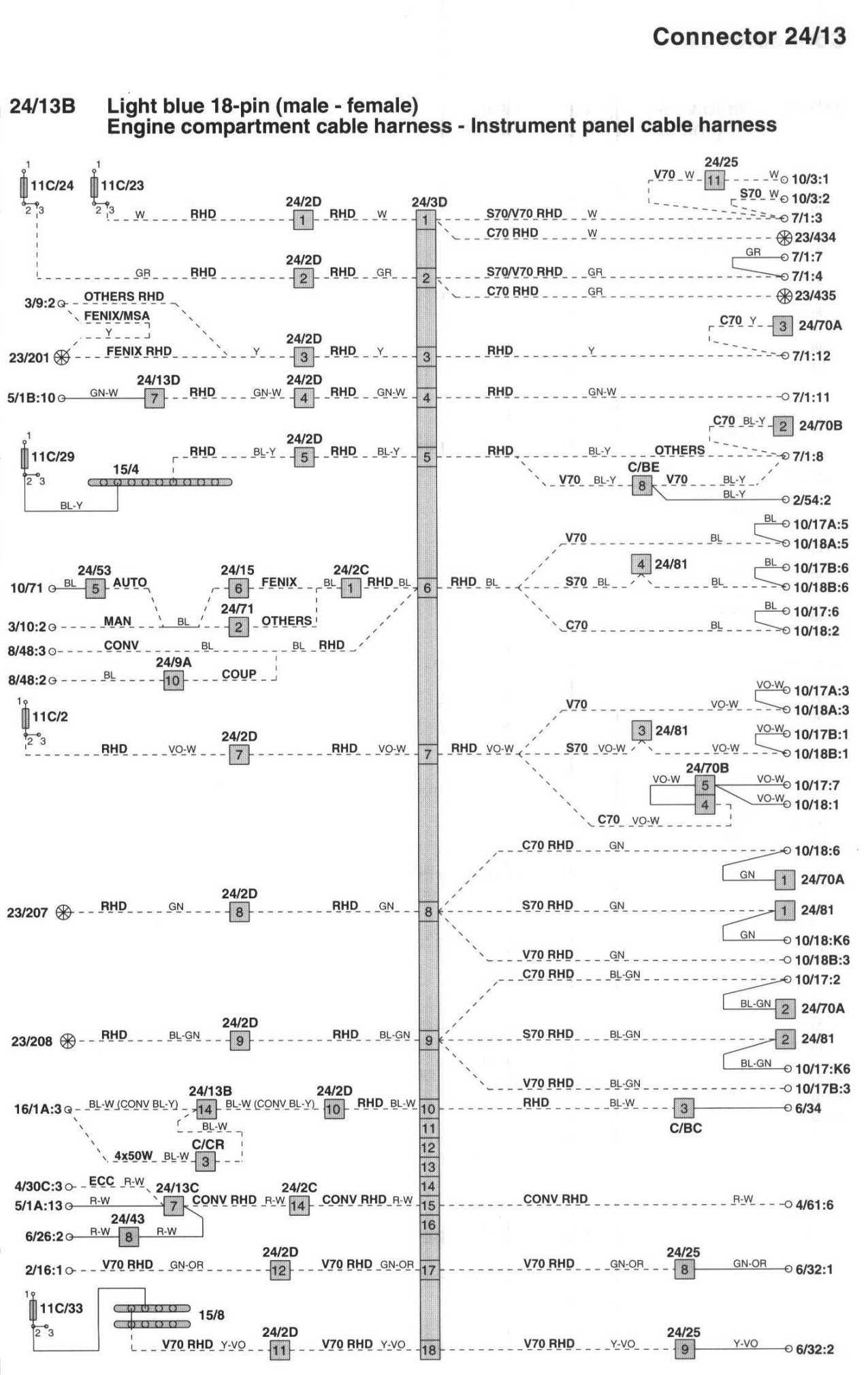

Connector - 24/13B:

Connector - 24/13C:

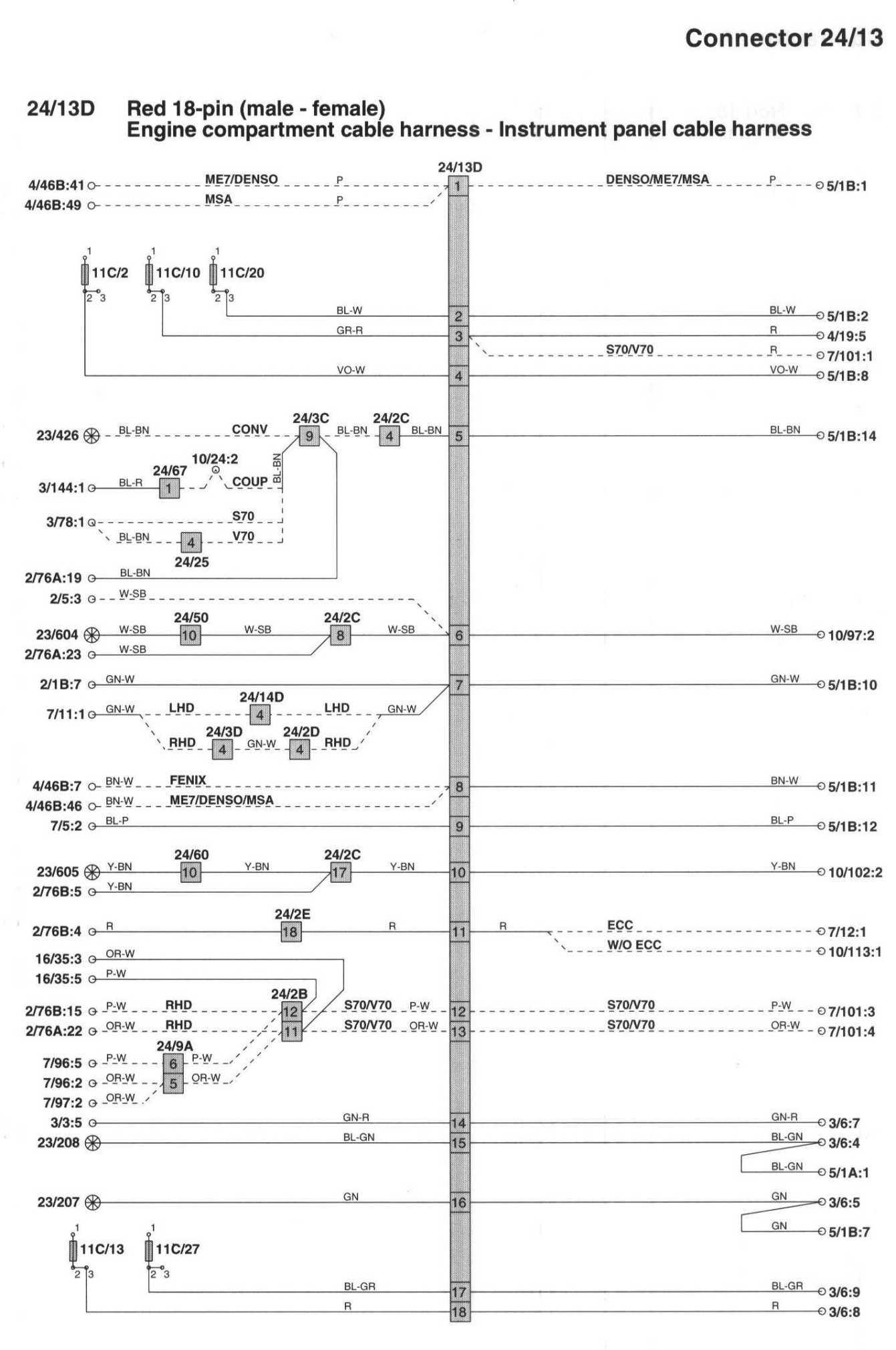

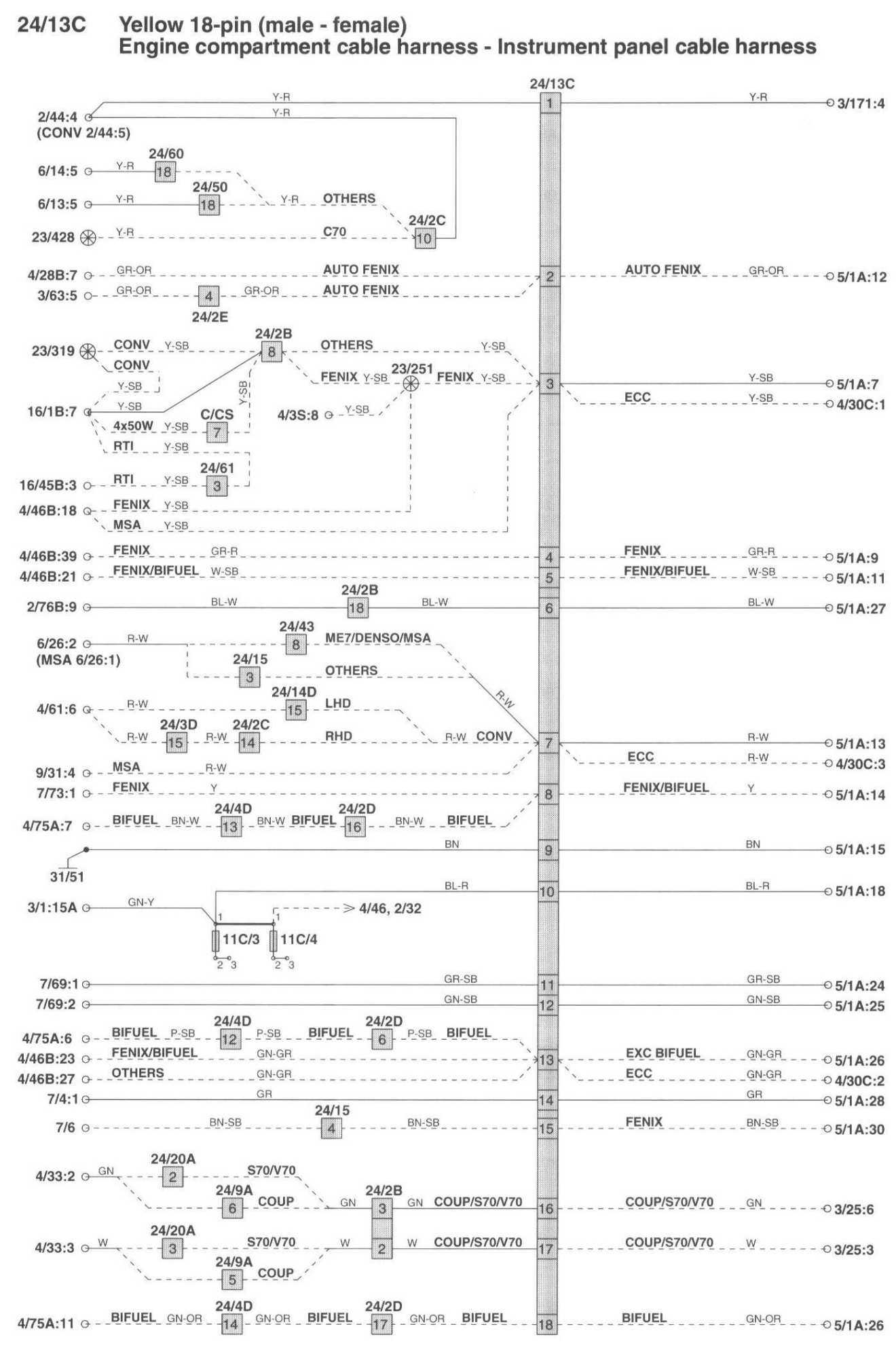

Connector - 24/13D:

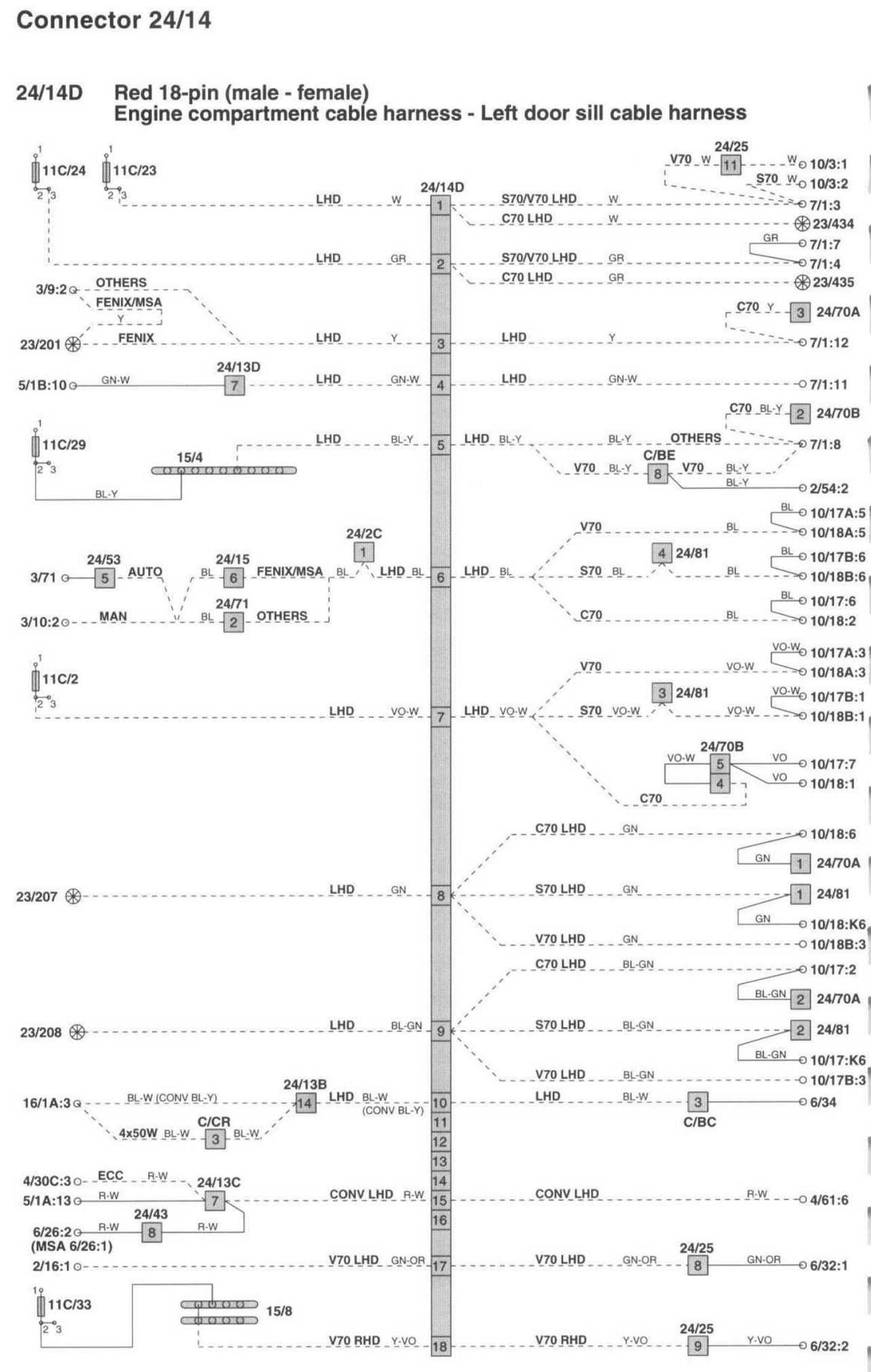

Connector - 24/14D:

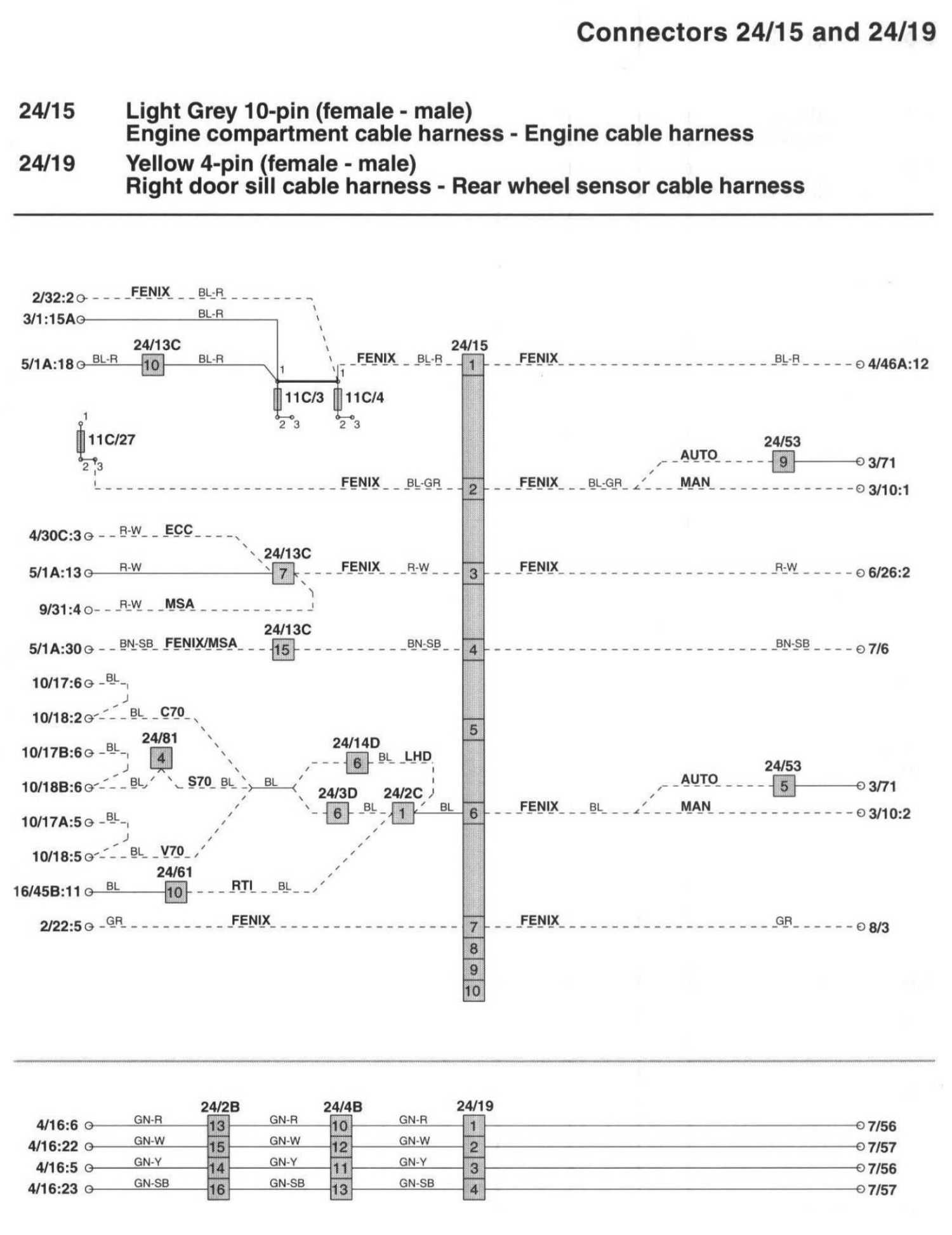

Connectors - 24/15 And 24/19:

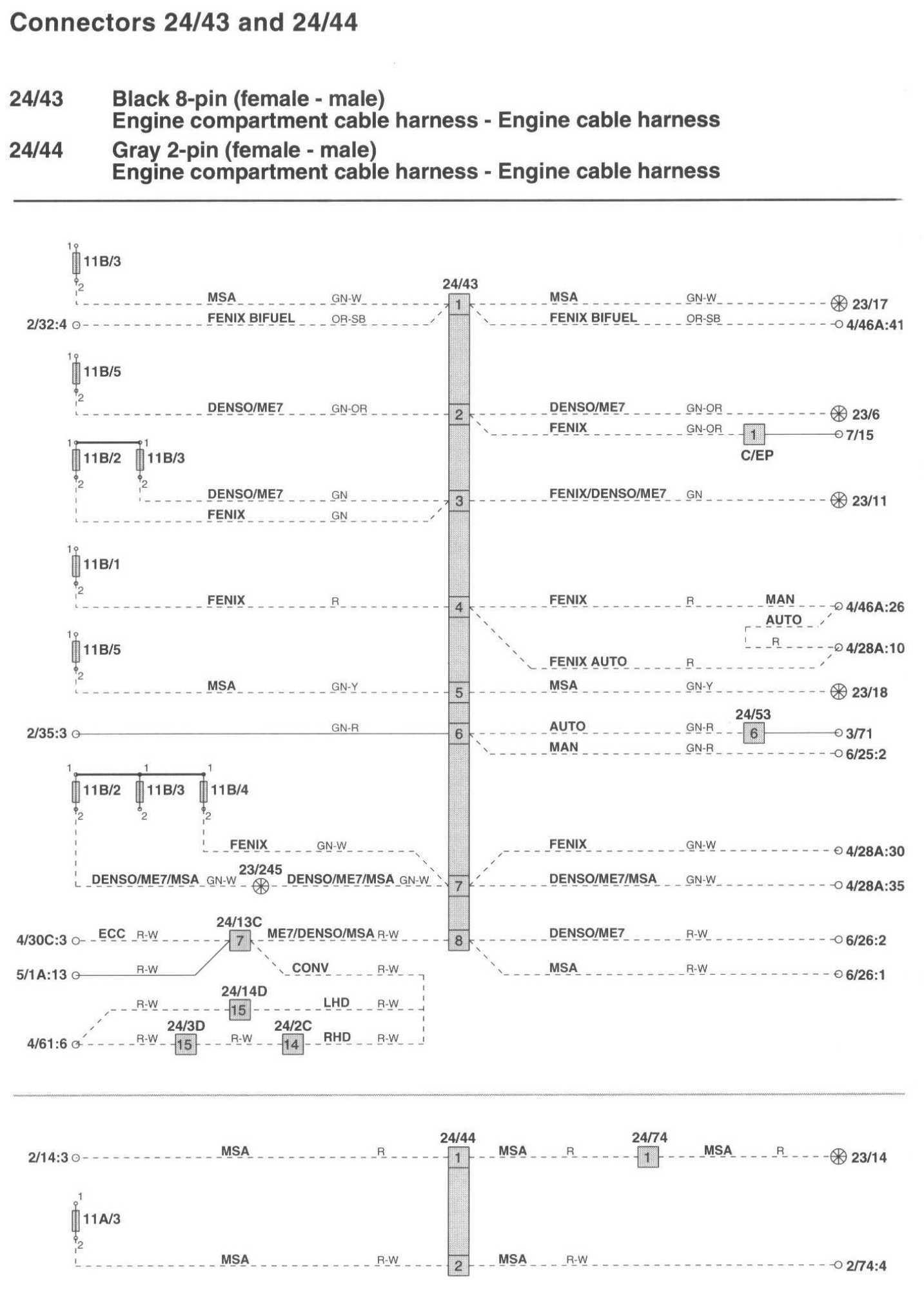

Connectors - 24/43 And 24/44:

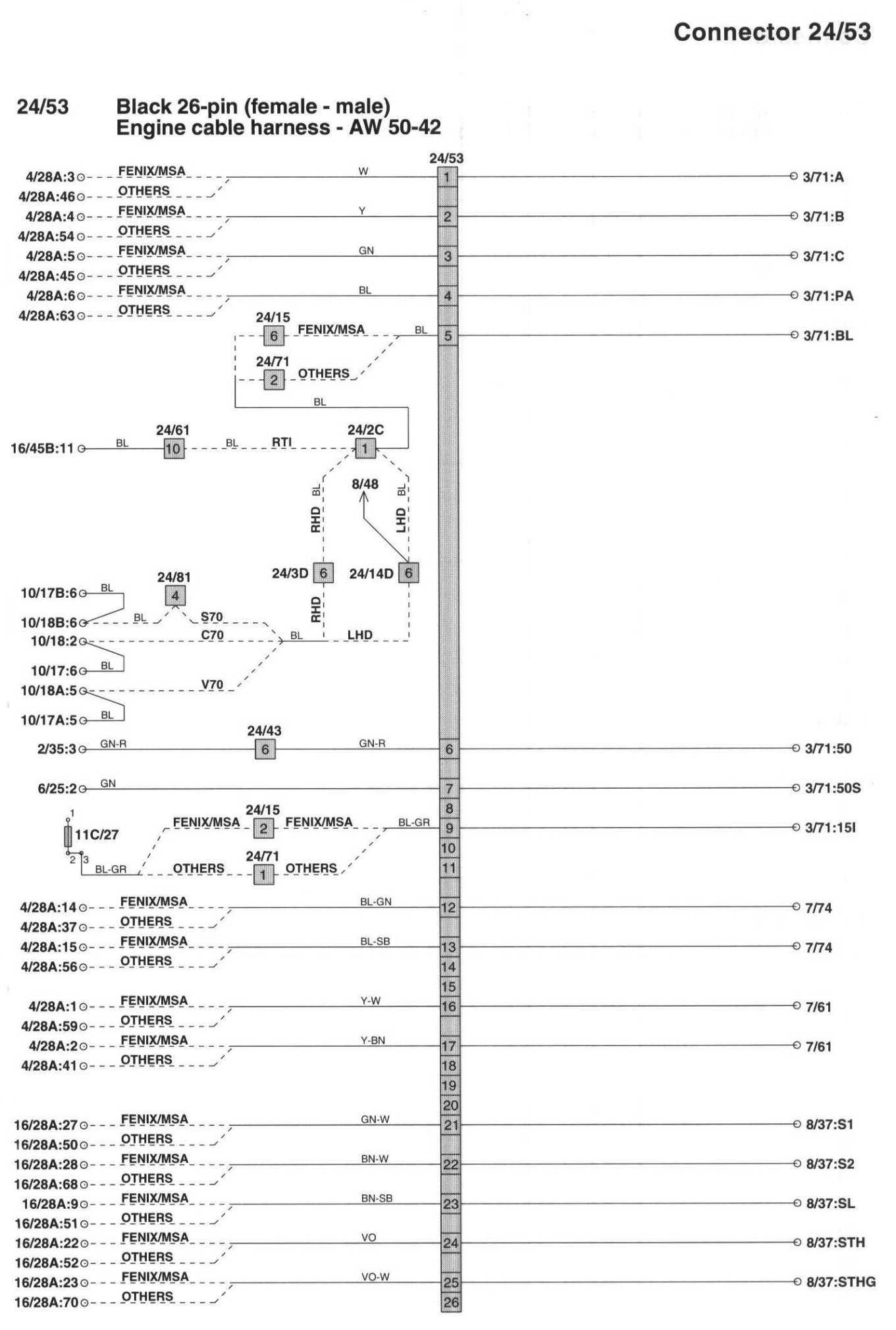

Connector - 24/53:

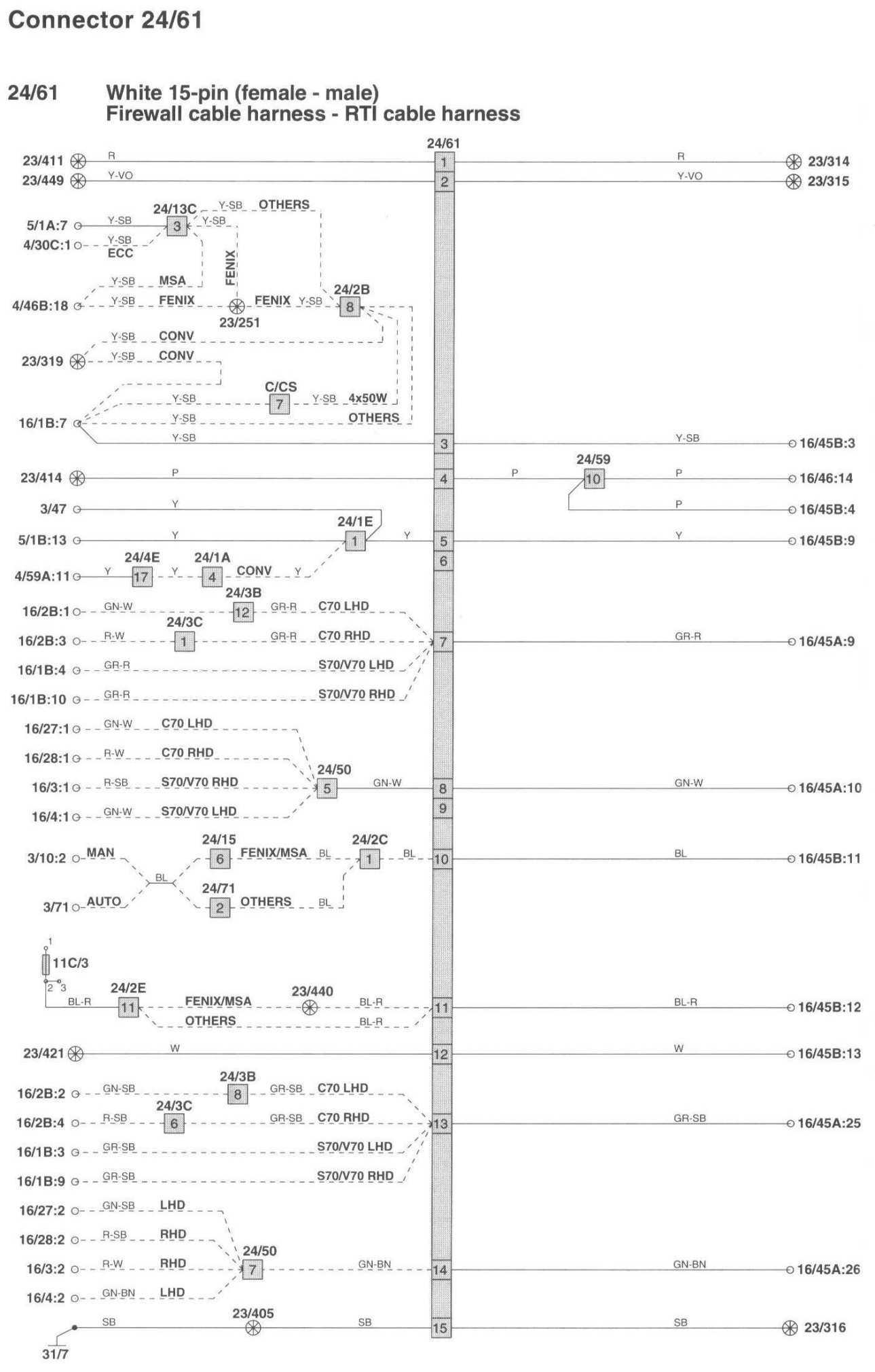

Connector - 24/61:

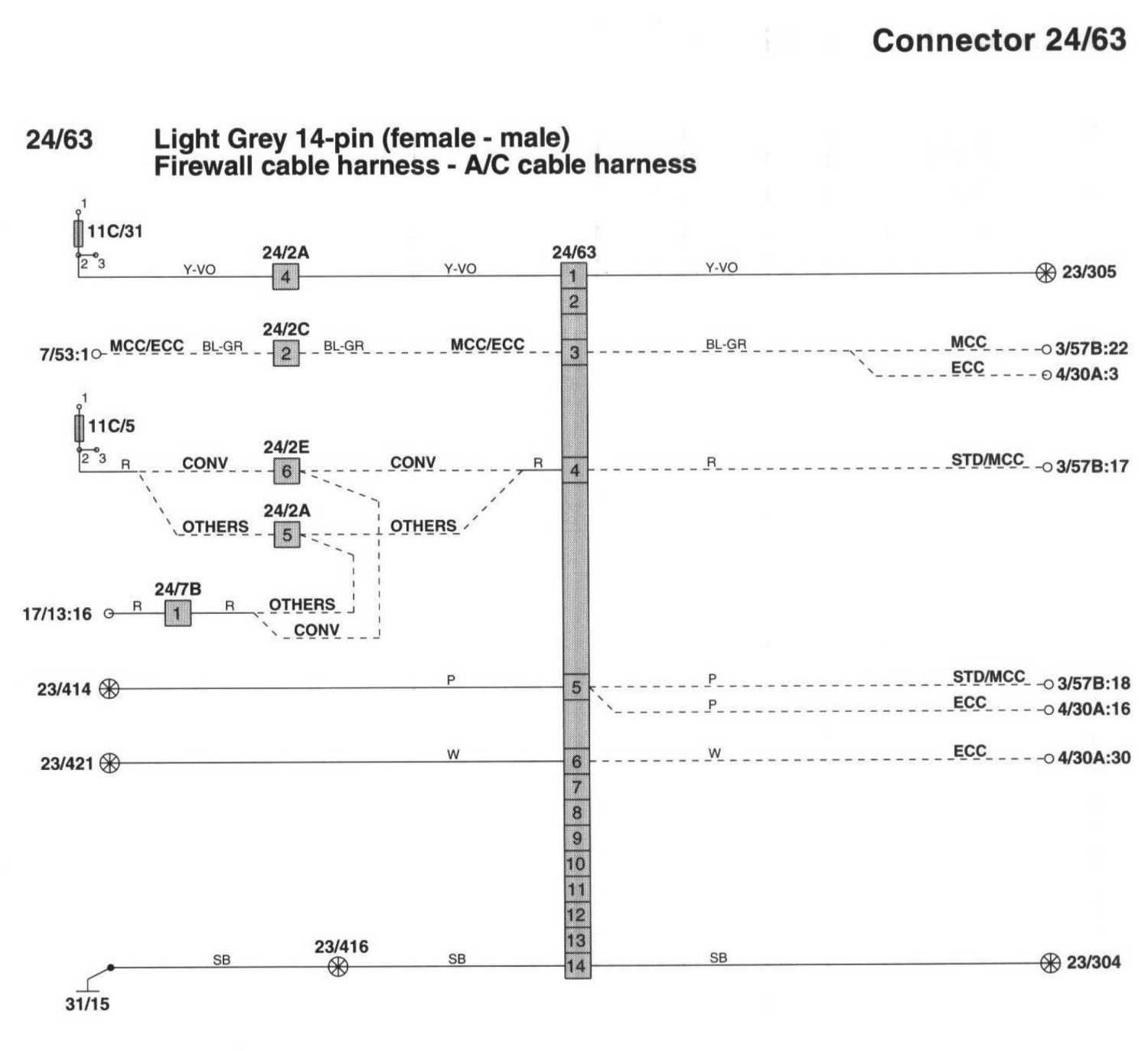

Connector - 24/63:

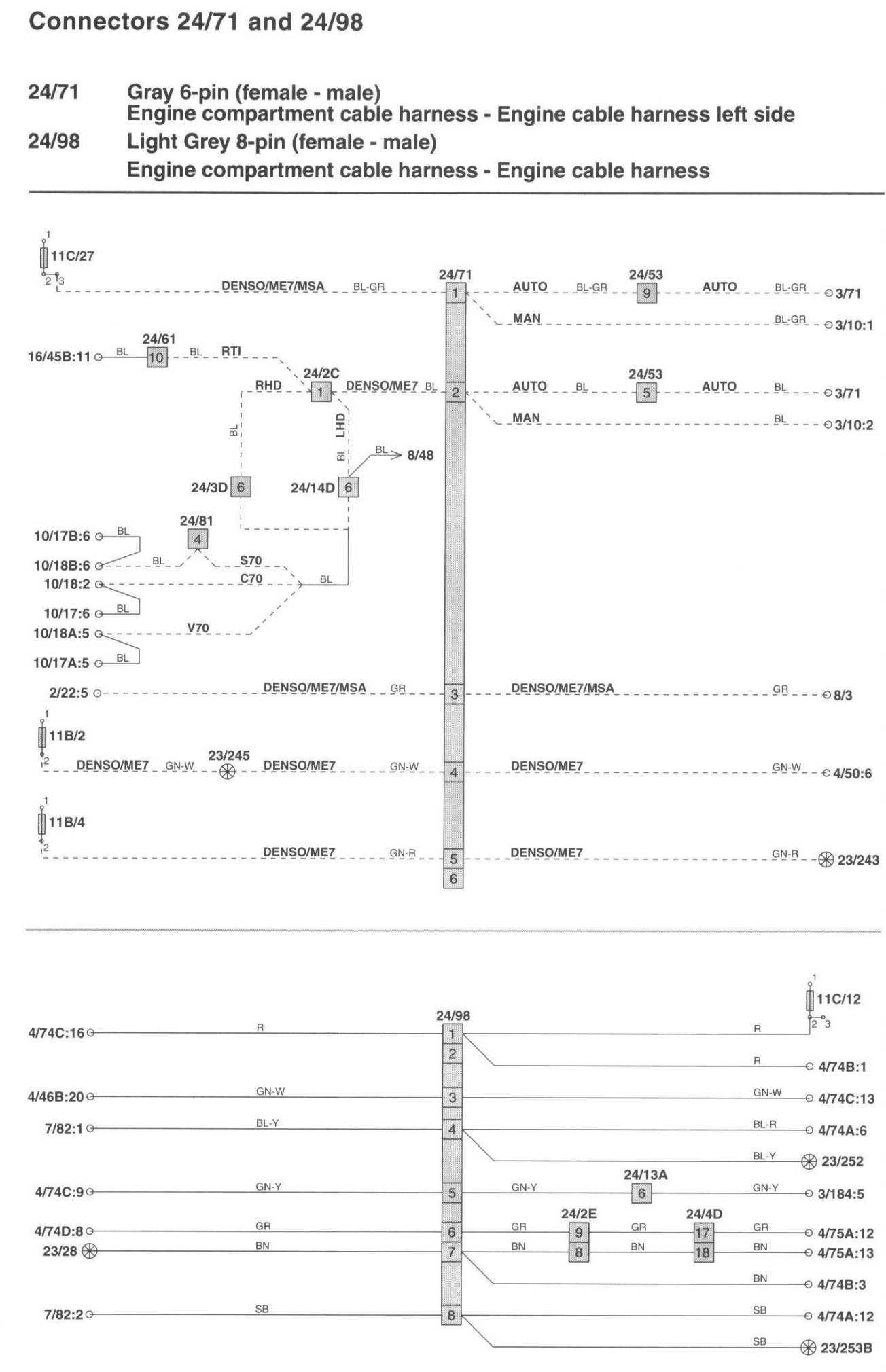

Connectors - 24/71 And 24/98:
