Intermittent Fault

Intermittent Fault







For left-hand drive cars:

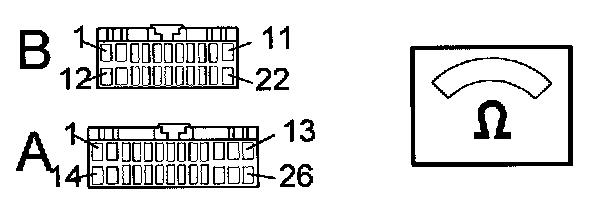

Check the cable between control module #A18 and the lock unit gray connector #B1 for an intermittent short-circuit to ground according to Checking wiring and terminals - Intermittent faults.

For right-hand drive cars:
Check the cable between control module #A18 and the lock unit gray connector #B4 for an intermittent short-circuit to ground according to Checking wiring and terminals - Intermittent faults.

Checking Wiring and Terminals - Intermittent Faults

Other information:
- For further information about signals and other values, see Control Module Pinout Values.
- To connect the breakout box, Reading and Clearing Diagnostic Trouble Codes
