Checking Potentiometer Resistance




Checking Potentiometer Resistance

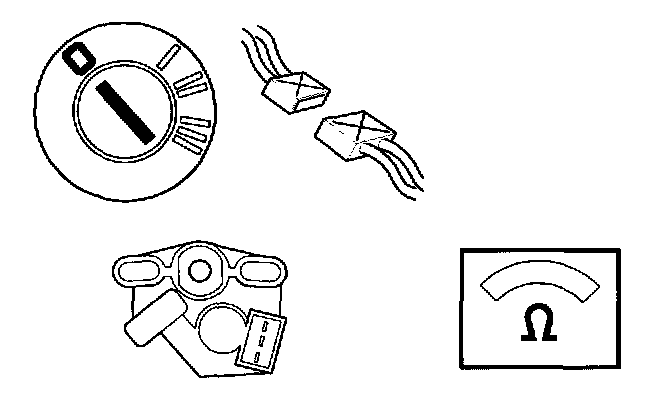

- Ignition off.
- Disconnect the black 14-pin connector C Remove potentiometer on motor 3.

Connect an ohmmeter between the two outer terminals on the potentiometer.

The ohmmeter should read approximately 2200 [ohm].

OK - Checking Potentiometer Ground Lead

Not OK - Replacing Component
