Checking For an Open-Circuit

Checking For An Open-Circuit

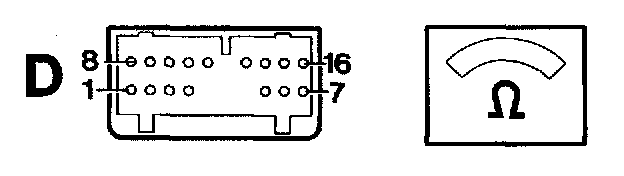

Check lead between controller and control module connection D:6 or D:7 for break as per Checking Wiring and Terminals

Signal Table for the break-out box connected to the 16-pin connector D, Signal Tables

After performing this procedure Checking Resistance to Control Buttons
