Signal Too Low - Intermittent Fault

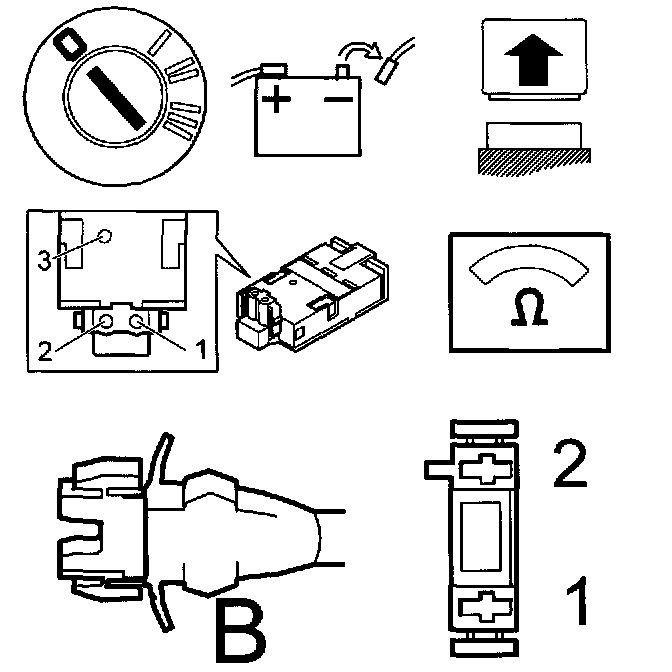

Checking Wiring







- Make a note of the anti-theft radio code.
- Ignition off.
- Disconnect the battery negative lead.
- Disconnect the connector from the driver's airbag.
- Disconnect the control module.


WARNING
Under no circumstances use an ohmmeter or other live measuring instrument to take readings on a disconnected, non-deployed airbag module. This could deploy the airbag!


Connect an ohmmeter between driver's airbag #1 and ground. Check for an intermittent short-circuit to ground according to Checking wiring and terminals - Intermittent faults.

Disconnect the connector from the contact reel. Connect an ohmmeter between contact reel #1 and ground. Check for an intermittent short-circuit to ground according to Checking wiring and terminals - Intermittent faults.
Checking Wiring and Terminals - Intermittent Faults

Remedy as necessary.
