Faulty Signal - Intermittent Fault

Intermittent fault







- Ignition off.
- Disconnect seat connector.
- Check connector for contact resistance and oxidation Checking Wiring and Terminals - Intermittent Faults
- Ignition on.

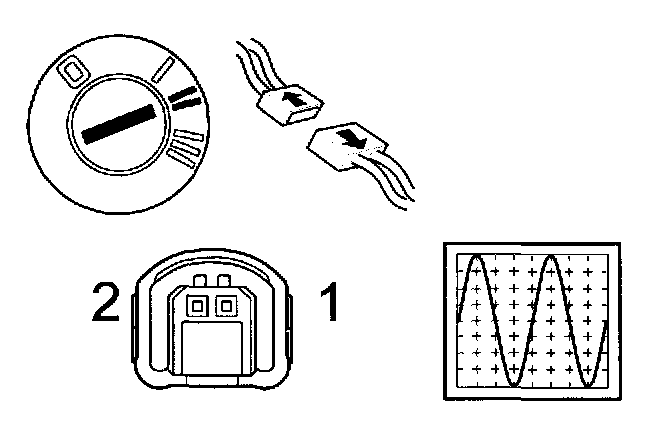

Connect an oscilloscope between left seat connector #1 and ground.

The oscilloscope should display a spiked pulse with an interval of 500 ms and an offset of approximately 2 V.

Now repeat the reading between SIPS bag connector #2 and ground. The oscilloscope should now read approximately 2 V

Remedy as necessary.
