Checking the Connectors

Checking The Connectors







- Expose fuel tank filler cover central locking motor.

- Check VGLA control module connector and fuel tank filler cover central locking motor connector for contact resistance and oxidation, Checking Wiring and Terminals - Permanent Faults

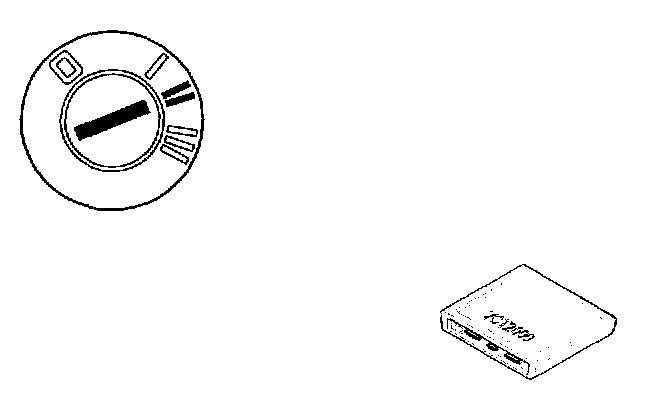

- Ignition on.

Activate the fuel tank filler cover central locking motor. The fuel tank filler cover should open.
If the fuel tank filler cover opens the cause of the fault was loose connections in the connectors.

Is the function OK?

Yes - Test complete

No - Checking Cables
