Fuel Door: Service and Repair

FA. Fuel Tank Filler Cover:





FA1. Replacing Fuel Tank Filler Cover:

Remove:

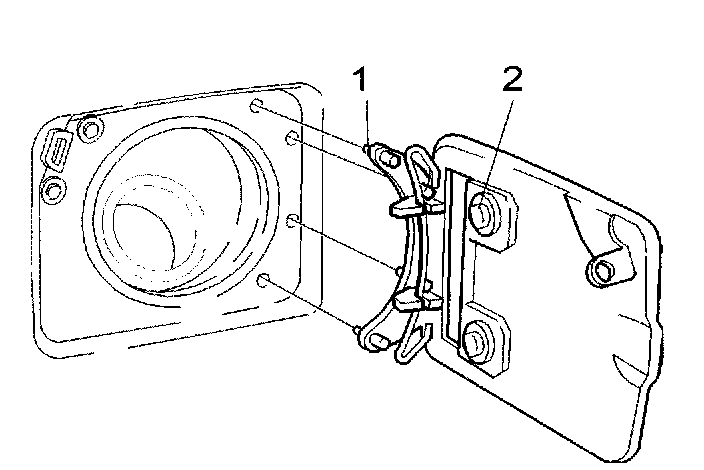

4 rivets (1) in the hinge. knock out using a drift.
Two screws (2) in the cover.

Install:
hinges on fuel tank filler cover.
Two screws (2) loosely.
fuel tank filler cover with hinges on the fender.
Knock in the four rivets (1) flush with the surface of the hinge.

Adjust the fuel tank filler cover leaving a gap of 4 mm (0.16 in.) around it. Tighten screws.
