With Heated Seat

Control module

Preparations

Set the seat height adjustment to its uppermost position.

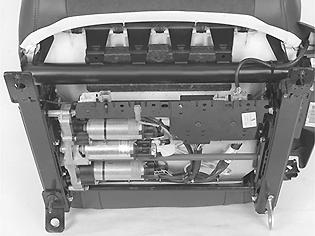

Remove:






- the battery negative lead
- two screws
- the four connectors.

Install:

In reverse order.

Programming memory functions

The new control module must be programmed with the positions for memory functions 1, 2 and 3. Otherwise diagnostic trouble codes (DTCs) PSL/PSR-323, PSL/PSR-322 or PSL/PSR-321 may be stored.
