SRS Connector

SRS connector

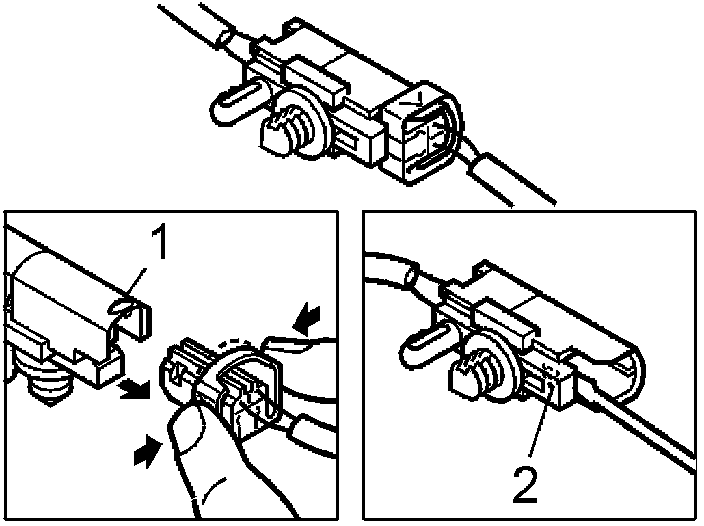

Removing the SIPS bag control module connector

Note! Take care when separating the connectors. If the connector breaks the whole cable harness must be replaced.

Note! Always replace the clip if it has been removed.






- Press on the side so that the bag goes over the edge (1).
- Separate the connector.
- Bend the clip at the front edge (2).
- Move the clip backwards.
- Remove clip.

Install:

In reverse order.
