Signal Specification, ABS Control Module

Signal specification, ABS control module

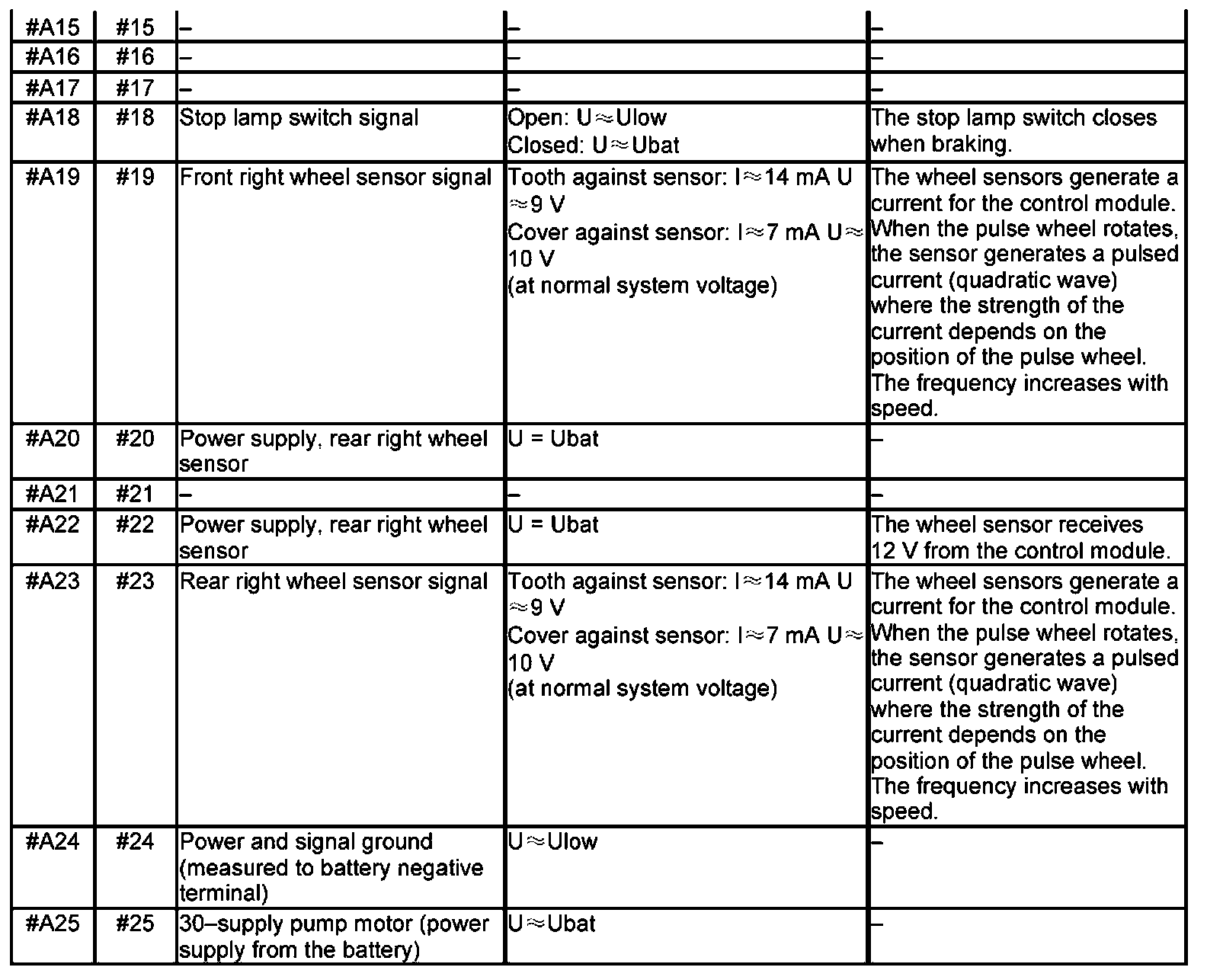

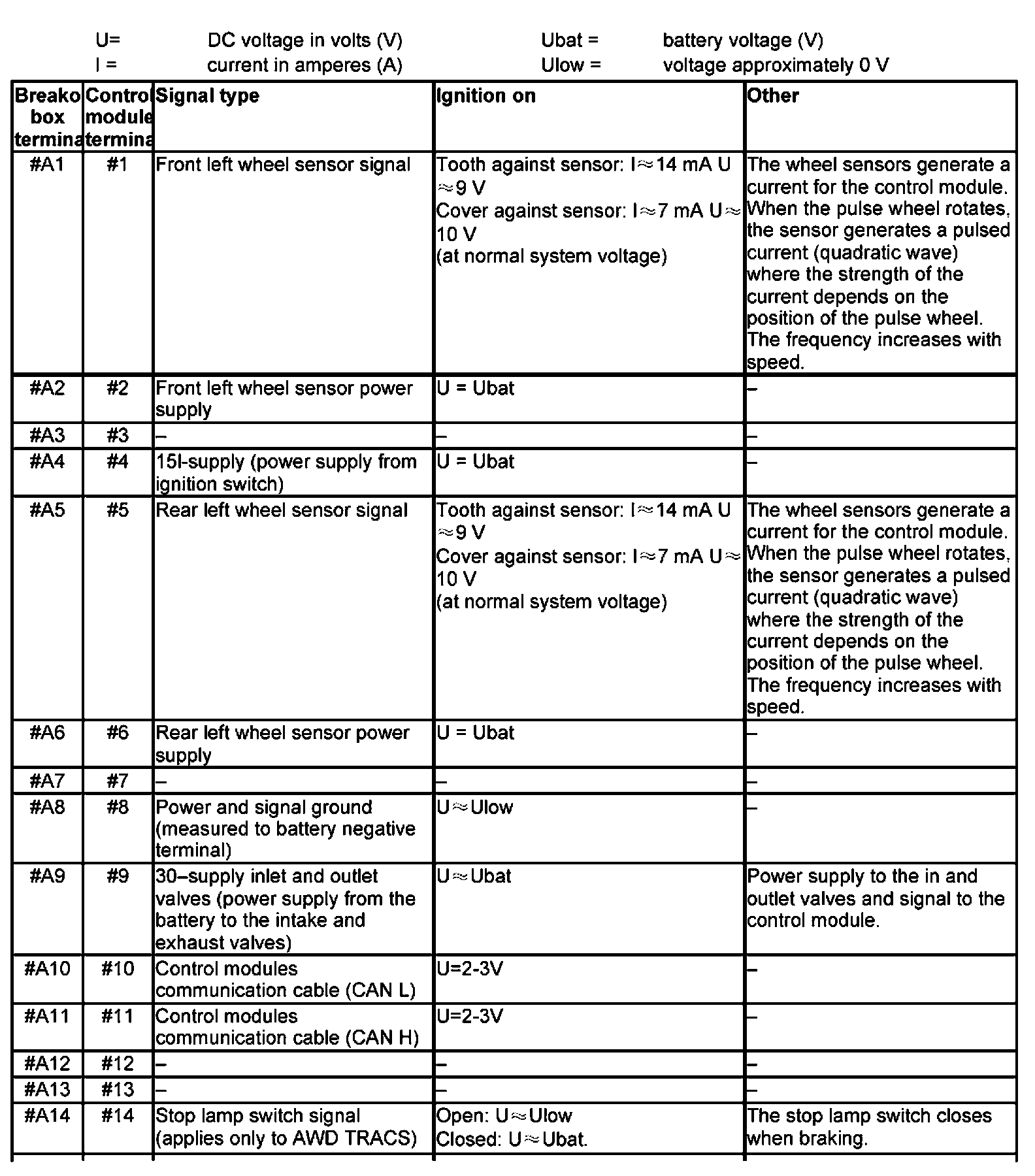

All values given are between the relevant terminal in column 1 and terminal #A8 or #A24 (ground), unless otherwise indicated in brackets.

Note! It is important that the breakout box is connected and that the ground terminals have been checked before readings are taken.
