Heating and Air Conditioning: Locations

Climate control ECC/MCC/STANDARD

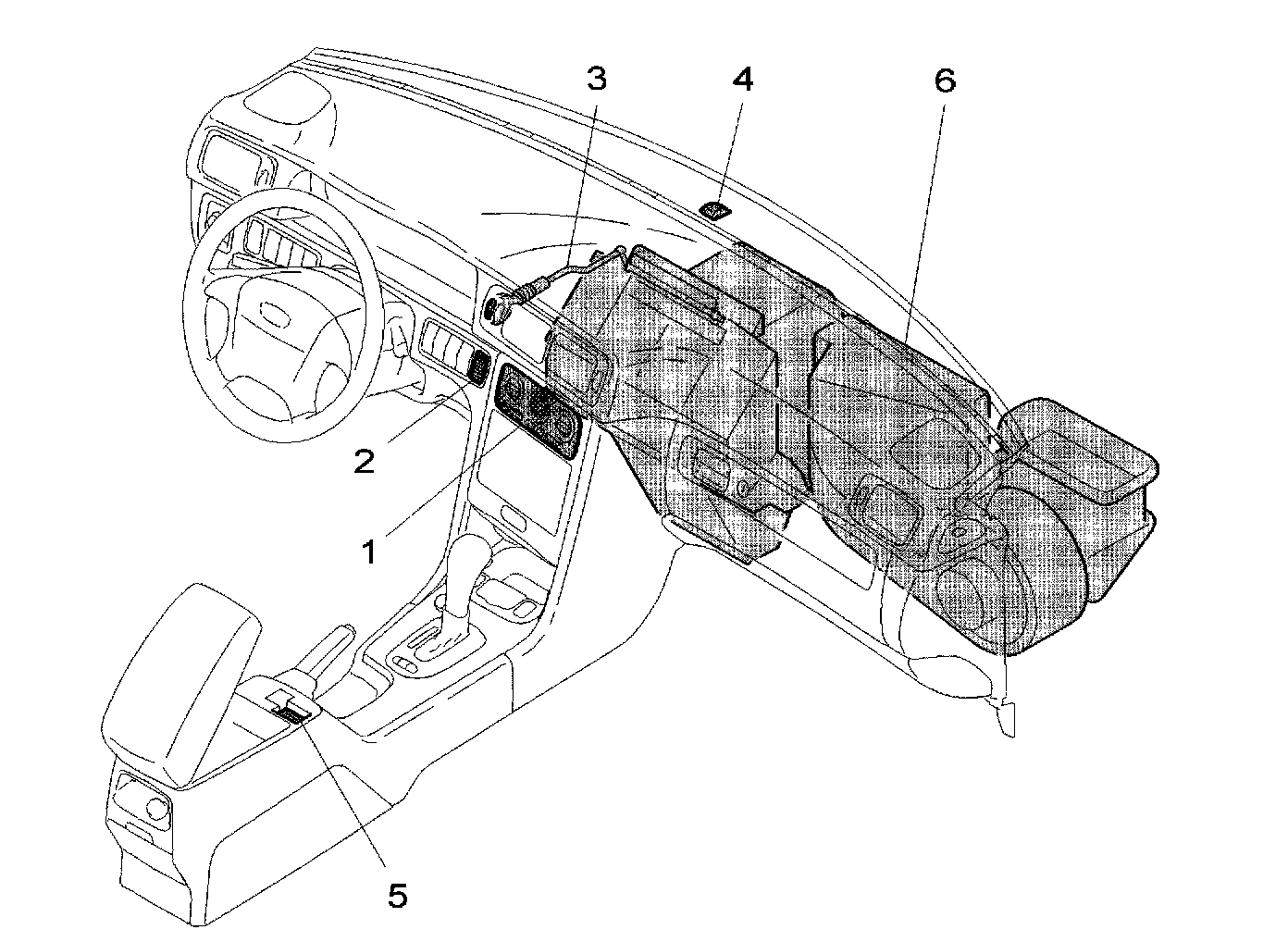

Passenger compartment

1. Climate control system.
2. Passenger compartment temperature sensor with built-in fan (ECC).
3. Airmix damper.
4. Sun sensor (ECC).
5. Data link connector (DLC).
6. Climate control unit/climate unit

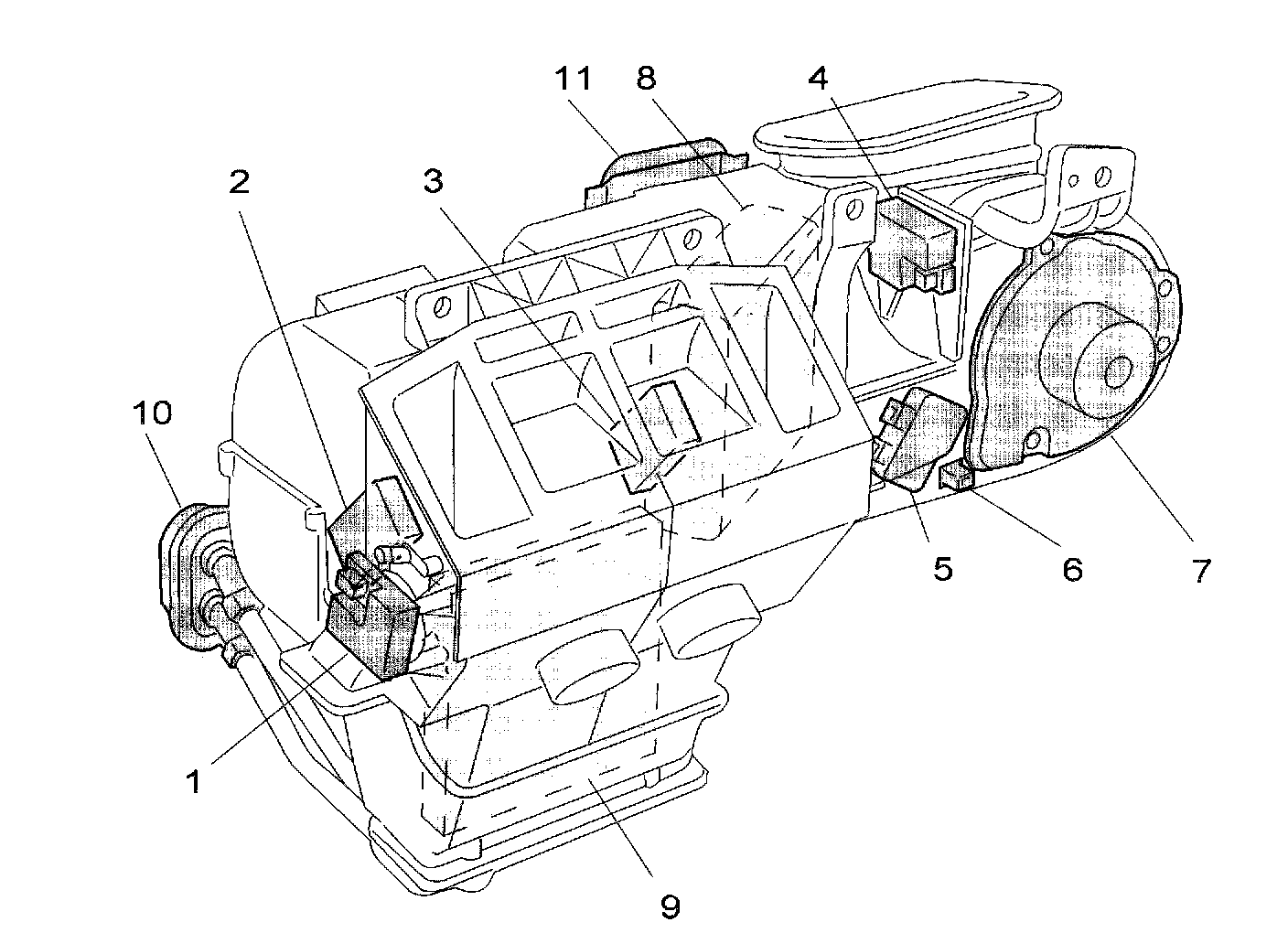

Climate unit

1. Damper motor air distribution.
2. Damper motor temperature left (ECC).
3. Damper motor temperature right (ECC).
4. Damper motor recirculation.
5. Power unit blower fan (ECC)/Blower fan resistor (MCC).
6. Outside temperature sensor
7. Blower fan.
8. Evaporator.
9. Heater unit.
10. Coolant pipe connection; to/from engine compartment.
11. Refrigerant pipe connection; to/from engine compartment.

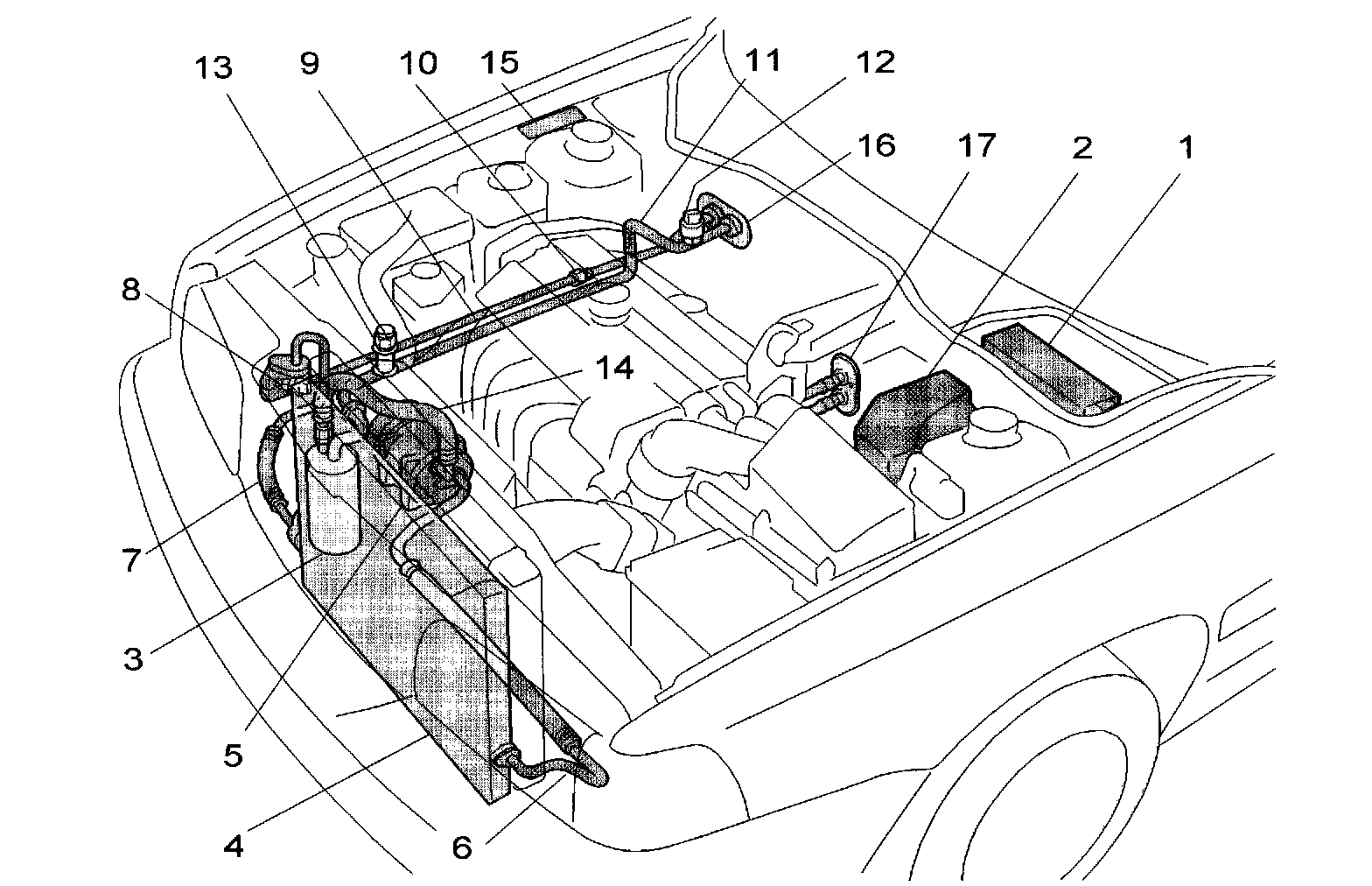

Engine compartment

1. Fusebox.
2. Main fuse box
3. Receiver/Drier.
4. Condenser/evaporator
5. Compressor.
6. Refrigerant pipe/hose; compressor - condenser.
7. Refrigerant pipe/hose; condenser - member
8. Pressure switch.
9. Refrigerant pipe: member - evaporator.
10. Expansion valve.
11. Refrigerant pipe; evaporator - Receiver/Drier
12. Pressure switch (Pressostat).
13. Service valve (draining/filling).
14. Refrigerant pipe/hose; Receiver/Drier - compressor
15. Specifications able.
16. Refrigerant pipe connection; to/from climate control unit.
17. Coolant pipe connection; to/from climate control unit.
