Check Central Locking System Cable For Short-Circuit to Ground

Check The Central Locking System Cable For A Short-circuit To Ground

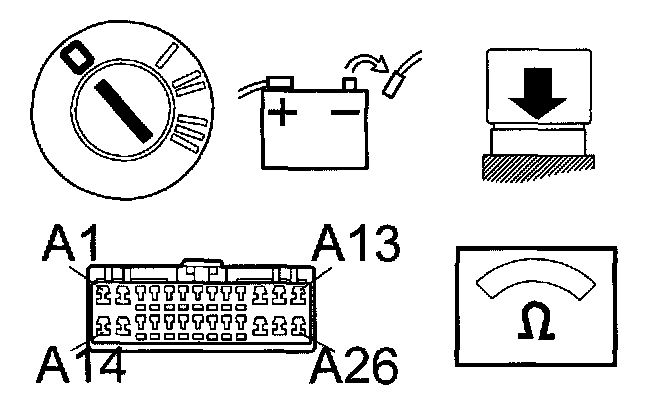

- Ignition off.
- Disconnect the battery negative lead.
- Connect the SRS control module connector.
- The connector for the central locking system control module must be disconnected.

Connect an ohmmeter between ground and central locking system connector #10A.

The ohmmeter should read approximately 1.2 M[ohm].

OK - Replacing the Component - VI

Not OK - Check Cable Between Central Locking System Ctrl and SRS Ctrl
