General
Each control module requires a number of software files in order to function. Most of these are downloaded via VIDA, but in certain cases they are already in the system.
The files are stored in the Volvo central database and can be ordered via the replacement parts catalogue.
The exceptions are individual configurations which are not in the replacement part catalogue. These must be ordered using an action code via the software manager in VIDA. The part numbers are given in the Technical Journal.

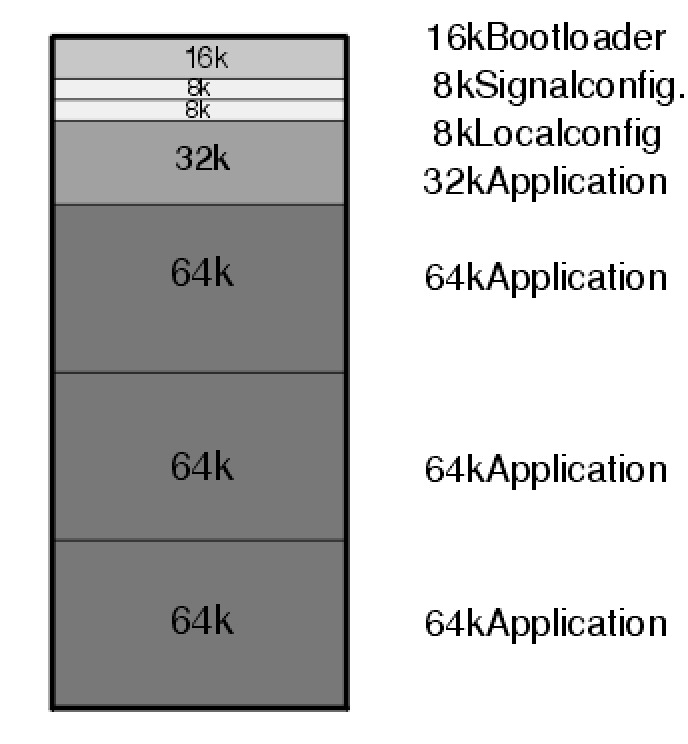

Extended information about files in the control modules
The following is a technical explanation of which files are in the control modules. The information is not necessary for a mechanic to be able to repair the car. The information is presented here for those who wish to have a greater understanding of how the system functions.
The following types of software files are included:
- Primary boot loader
- Secondary boot loader
- Application file
- Signal configuration file
- Market file (driver information module (DIM) only)
- Language file (driver information module (DIM) only)
- Car configuration file (central electronic module (CEM) only)
- Security configuration file (central electronic module (CEM) only)
- Local configuration file (central electronic module (CEM) and rear electronic module (REM) only).
Most of the control modules on the controller area network (CAN) can download software via VIDA. All control modules need an application file and a signal configuration file to function. Not all control modules receive these two files when downloading software using VIDA.
In addition most of the control modules require a secondary boot load file to download the software to the control module.
Primary boot loader
The aim of the primary boot loader is to allow the download of software to a control module.
Secondary boot loader
The secondary boot loading file is a collection of instructions which work together with the primary boot loader to download the software package into the control module. It then has no other function.
Application file
The application file is the software which contains the control module functions. If software is updated because of quality improvements for example, a new application file is required.
Signal configuration file
All the control modules on the controller area network (CAN) must have the correct signal configuration file downloaded to communicate with each other. The file specifies which signals should be transmitted, where and which signals should be read, and where they can be found. This file ensures that all the control modules speak the same language. This means that an application file need not be modified if the controller area network (CAN) environment in the car is modified.
An example is two S80 model cars. One car is structure week 0135, the other has a structure week after 0135. The application file for these cars is the same, however the signal configuration files are different.
Car configuration file and security configuration file
The car configuration file and the security configuration file are always downloaded to the car when downloading via VIDA. The first file to be downloaded is the car configuration file. This is download into the central electronic module (CEM). This is loaded to indicate to VIDA that downloading has started. This file loads twice. The file is downloaded first and last in the download sequence. The first file sets an error flag and the second file resets the error flag. If the download is interrupted before the whole package has been downloaded, a user message is posted indicating that the vehicle is only half loaded.
The car configuration file is also downloaded to the central electronic module (CEM) to store general information about the car. The file is also used so that the car can continue in different modes. The file is generated in the factory just before the car is completed and is delivered by the Volvo central database when the software is ordered. The file is unique. No two cars have the same car configuration file. This file contains the car's VIN number, structure week and variant information. This information is distributed to the other control modules via the controller area network (CAN).
An example of how the car configuration file functions can be illustrated through the seat belt warning function. There are two different market requirements for how the seat belt warning should function. The central electronic module (CEM) reads out instructions from the car configuration file about how the seatbelt warning should function. The software sets itself for this function. In this way the number of variants of the software has decreased by half. In total there are over 100 parameters stored in the car configuration file. Each parameter can assume at least two values.
The car configuration file can be read off using VIDA. The file can contain a lot of information about the car which is useful for the mechanic such as the VIN, structure week and the configuration of the car. Structure week and week of manufacture are not necessarily the same week. Week of manufacture is the week that the car was built in the factory. The contents of the car are guided by the structure week. A structure week can stretch over several weeks of manufacture. An example of this is the new upper electronic module (UEM), which was introduced for structure week 0031.
Market, language and local configuration files
The market, language and local configuration files are different types of data files which contain parameters which guide the software.
The language file contains information about how the different text messages should be displayed in the text display in the combined instrument panel. There is a language file for each language. This file downloads to the driver information module (DIM).
The market file contains information about when the service reminder indicator (SRI) should light and all the other market specific settings, such as units in the trip computer and temperature gauges. A number of market parameters, such as trip computers and service reminder indicator (SRI), can also be modified to the customer's requirements. This is carried out via VIDA vehicle communication.
Other market settings, such as fog lamps, cannot be reset because of legal requirements.
NOTE: Customer parameters are only programmed locally in one control module. Certain parameters have already been reprogrammed at the factory.
