Inspect Terminals Visually

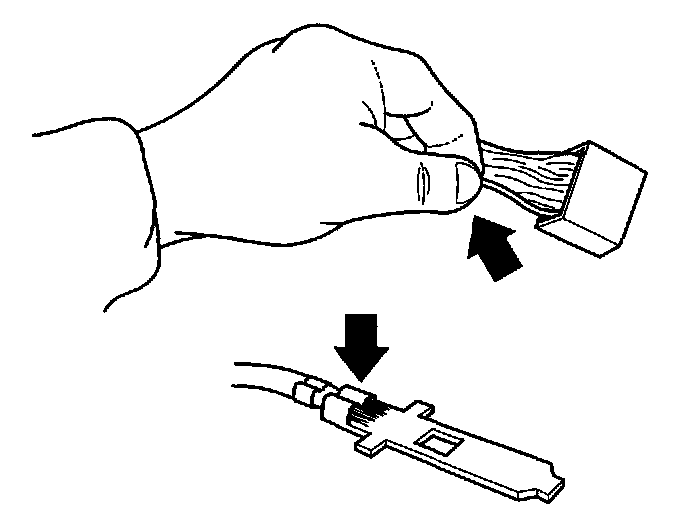

Checking female socket terminals and male pin terminals
Greasing female terminals

Inspect terminals visually







NOTE: When checking the engine control module (ECM), do not remove the control module from the car before the main relay has interrupted the power supply. This may take up to 4 minutes after the ignition has been switched off and the engine cooling fan (FC) has stopped running.


Inspect the terminals visually when checking, or taking readings from, opened connectors.

Repair wiring and cable terminals as required, using appropriate procedures.

Checks:
- Check for oxidation. This can cause poor connections in the terminals
- Check for damage to pins and terminals. Check that they are properly inserted into the connector. Check that the cable is properly connected to the pin or terminal. Check pins and terminals particularly carefully
- Using a loose male connector, test to see if the female connector provides a good contact and that the pin remains in place when the male connector is pulled lightly
- Shake the cable lightly and pull on connectors during measurement to locate damage.
