Information Bus

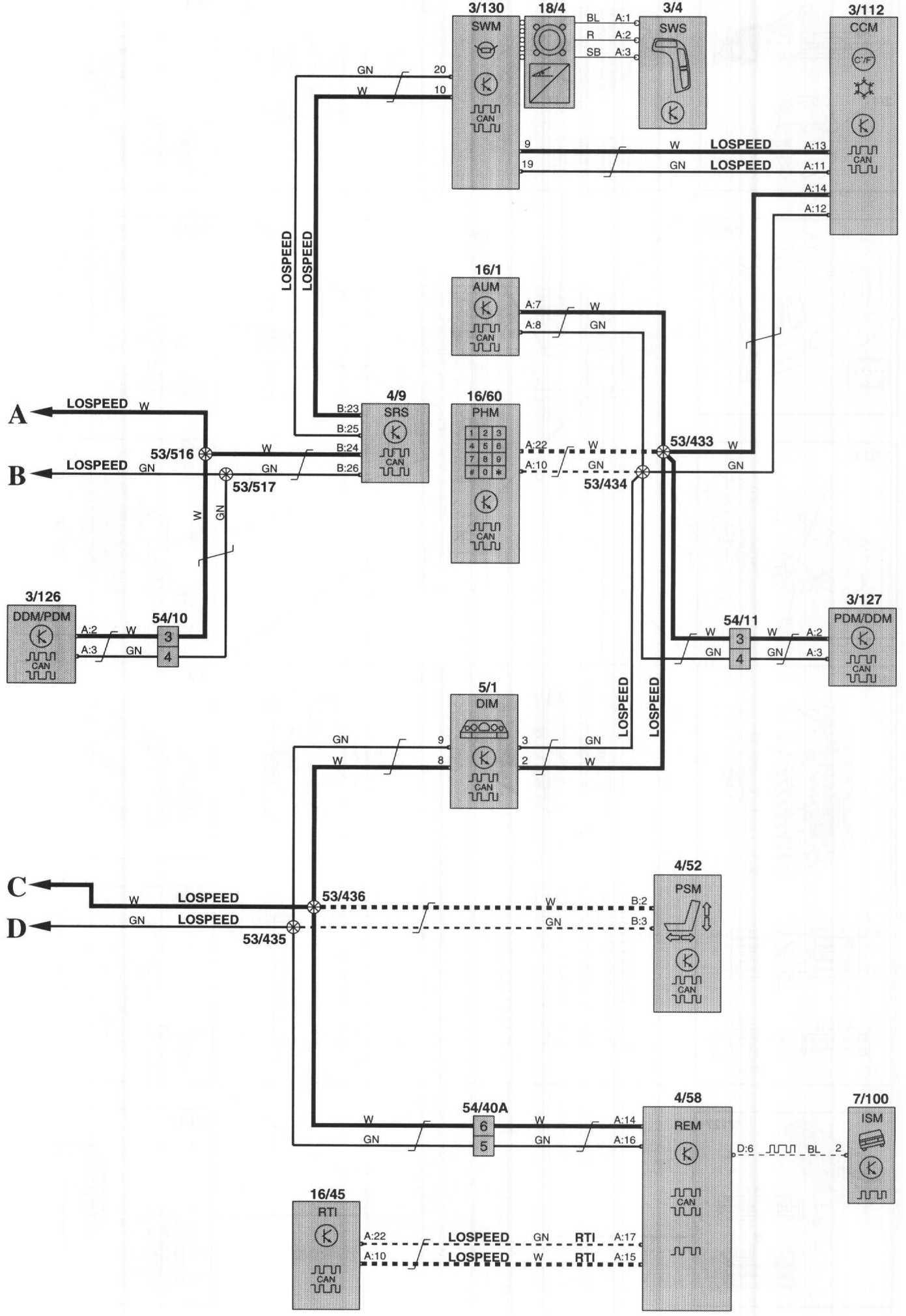

Wiring Diagram Fig. 1:

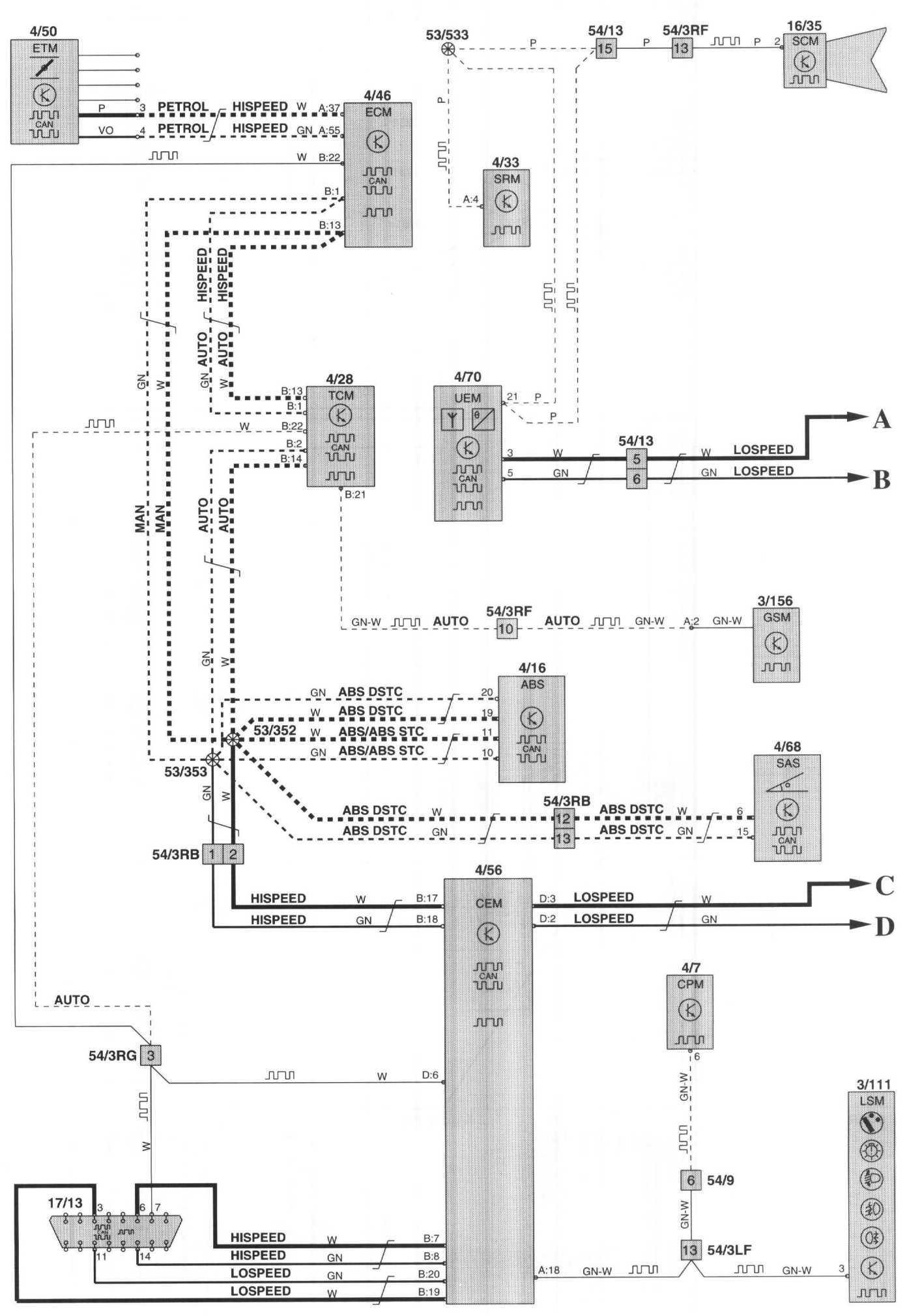

Wiring Diagram Fig. 2:

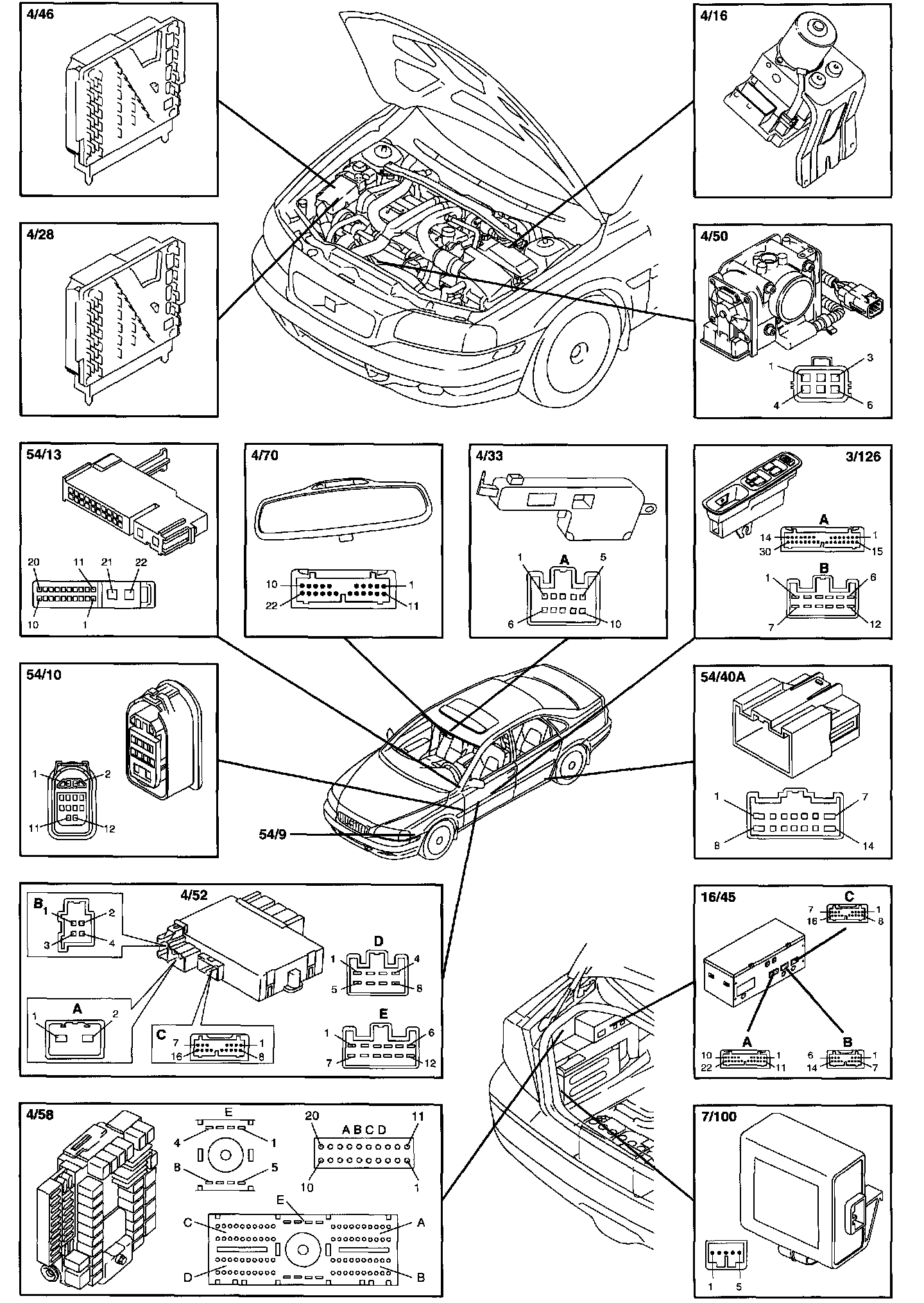

Component Location Fig. 1:

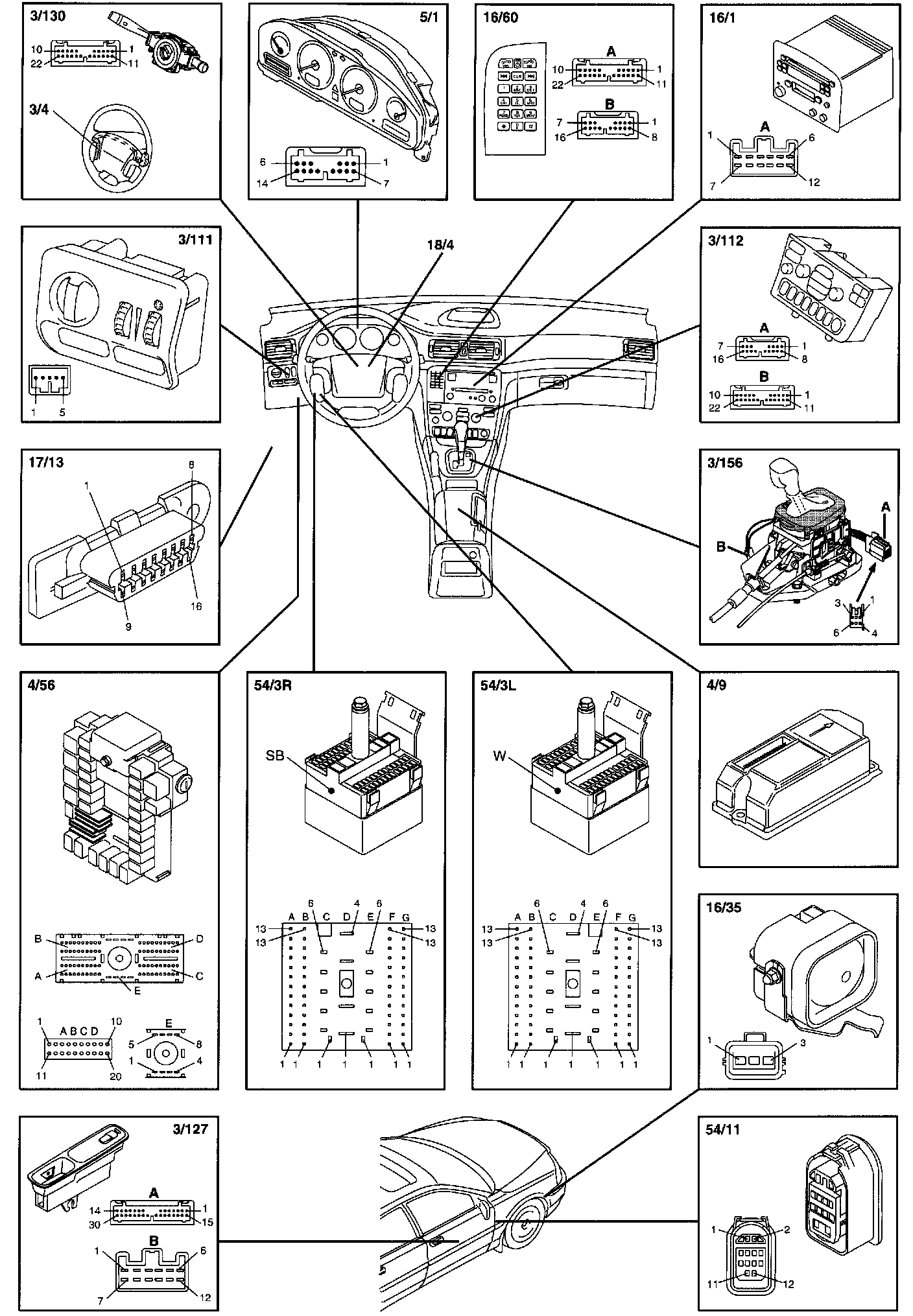

Component Location Fig. 2:
