Signal Too Low
Signal too low
Checking for permanent or intermittent faults
Open door and check that door warning lamp comes on.
Does door warning lamp come on?
Yes - Intermittent fault
No - Checking the connectors
-------------------------------------------------
Checking the connectors
- Ignition off.
- Check door warning lamp connector for contact resistance and oxidation as described in Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault. Check especially for damage.
- Connect the connectors, install the components, etc.
- Ignition on.
Open door and check that door warning lamp comes on.
Additional information:
- To access door warning lamp, see Bulb, warning lamp, side door, replacing Service and Repair.
Does door warning lamp come on?
Yes - Verification
No - Checking for a short circuit
-------------------------------------------------
Checking for a short circuit

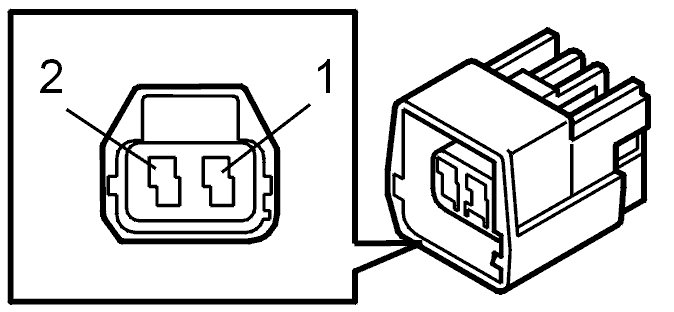

Check the wire between door control unit 7A and door warning lamp 1 for a short circuit to ground as described in Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
If a fault is found, replace the wire.
Additional information:
- To connect the test box, see Connecting the breakout box Connecting the Breakout Box
- For information on signals and additional values, see Signal specification Signal Specification, Driver Door Module (DDM) / Passenger Door Module (PDM).
Is there a fault?
Yes - Verification
No - Replacing the component
-------------------------------------------------
Replacing the component
Check bulb socket for a short circuit.
Do the necessary corrective action.
If no fault is found, replace door warning lamp as described in Bulb, warning lamp, side door, replacing Service and Repair.
Continue - Verification
-------------------------------------------------
Intermittent fault
Check control unit and door warning lamp connectors for contact resistance and oxidation as described in Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults , and for a loose contact as described in Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Check the wire between control unit 7A and door warning lamp 1 for an intermittent short circuit to ground as described in Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults , and for an intermittent open circuit as described in Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Additional information:
- To connect the test box, see Connecting the breakout box Connecting the Breakout Box
- For information on signals and additional values, see Signal specification Signal Specification, Driver Door Module (DDM) / Passenger Door Module (PDM)
- To access the door control unit, see Driver's door module / passenger door module (DDM/PDM), replacing Driver's Door Module/Passenger Door Module (DDM/PDM), Replacing
- To access/replace door warning lamp, see Bulb, warning lamp, side door, replacing Service and Repair.
Continue - Trouble-shooting information
-------------------------------------------------
Verification
Verification
Hint: After the repair it is necessary to check that the fault has been rectified.
- Ignition off.
- Connect the connectors, install the components, etc.
Open door and check that door warning lamp comes on.
Does the lamp come on?
Yes - Verification completed
No - Trouble-shooting information
-------------------------------------------------
Trouble-shooting information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit Fault-Tracing
No - Attempt New Test
------------------------
Attempt New Test - Checking for permanent or intermittent faults
-------------------------------------------------
Trouble-shooting information
Information
Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
It is possible to view the information again, or leave fault-tracing for this diagnostic trouble code (DTC).
Do you want to view the information again?
Yes - Attempt New Test
No - Exit fault-tracing
------------------------
Attempt New Test - Checking for permanent or intermittent faults
-------------------------------------------------
