Fog/Driving Lamp Switch

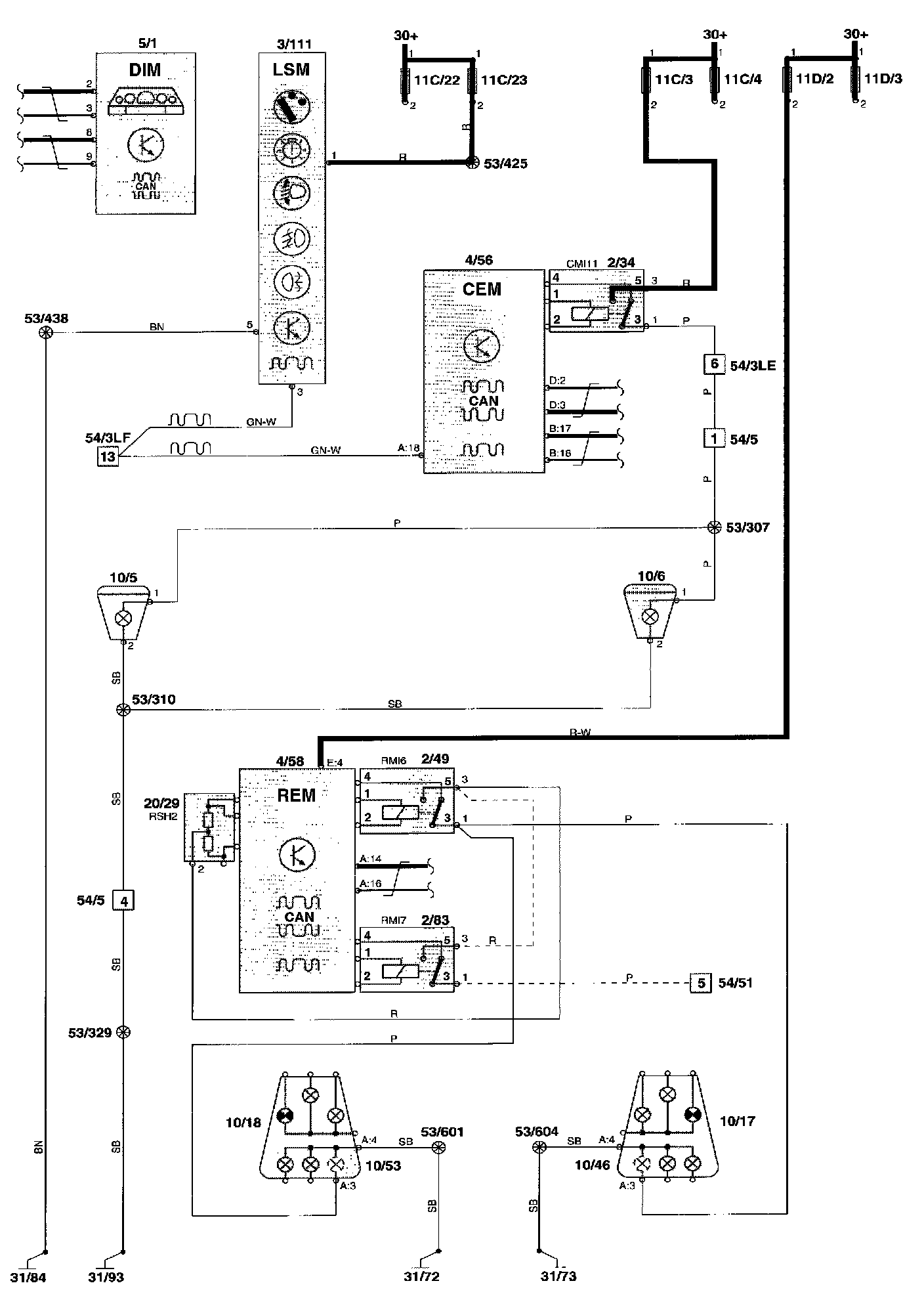

Wiring Diagram:

Wiring Diagram

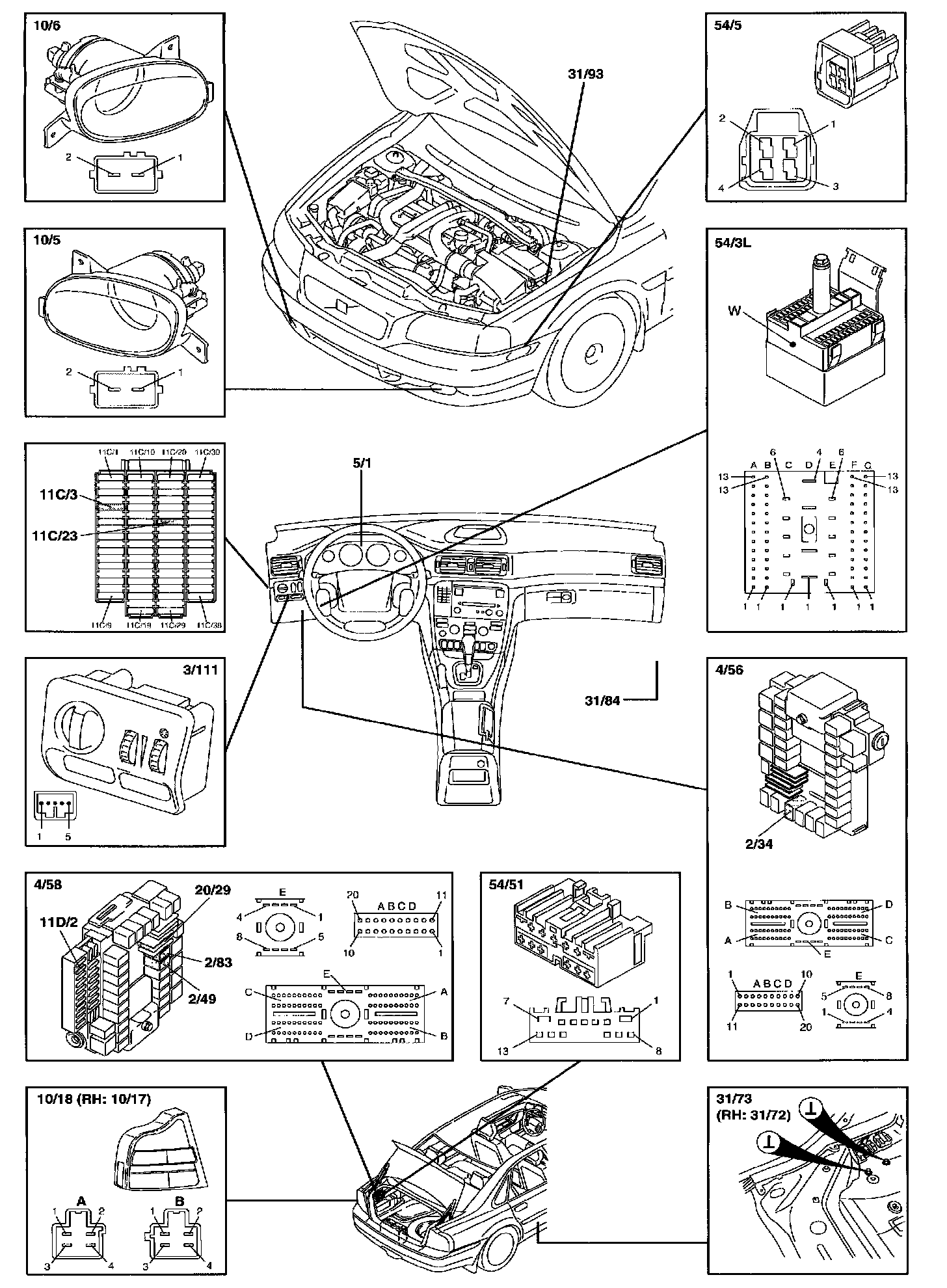

Component Locations:

Component Location

Component I.D. List
2/34 Relay, Front Fog Light
2/49 Relay, Fog Tail Lamp
2/83 Relay Fog Lamp Trailer
3/111 Electrical Switch Module Lights (LSM)
4/56 Central Electronic Module (CEM)
4/58 Rear Electronic Module (REM)
5/1 Combined Instrument Panel (DIM)
10/5 Left Front Fog Lamp
10/6 Right Front Tog Lamp
10/17 Right Tail Light
10/18 Left Tail Light
11C/1-38 Fuses In Fusebox Passenger Compartment
11D1-18 Fuses In The Relay/fusebox Cargo Compartment
20/29 Shunt Tog Lamp REM
31/72 Ground Terminal Rear Seat Support Left Side 2
31/73 Ground Terminal Rear Seat Support Right Side 2
31/84 Ground Terminal Right-hand Side A Post
31/93 Ground Terminal Left Wheel Arch
54/3L Multi-connector In-car Harness - Engine Compartment Harness
54/5 Connector, 4-pin Engine Compartment Harness - Soft Front Harness
54/51 Connector, 13-pin Cargo Compartment Harness - Tow Hitch
