Home >> Volvo >> 2000 >> S80 T6 L6-2.8L Turbo VIN 90 B6284T >> Repair and Diagnosis >> Heating and Air Conditioning >> Auxiliary Cabin Heater >> Specifications >> Electronic. Auxiliary Heater

Electronic. Auxiliary Heater

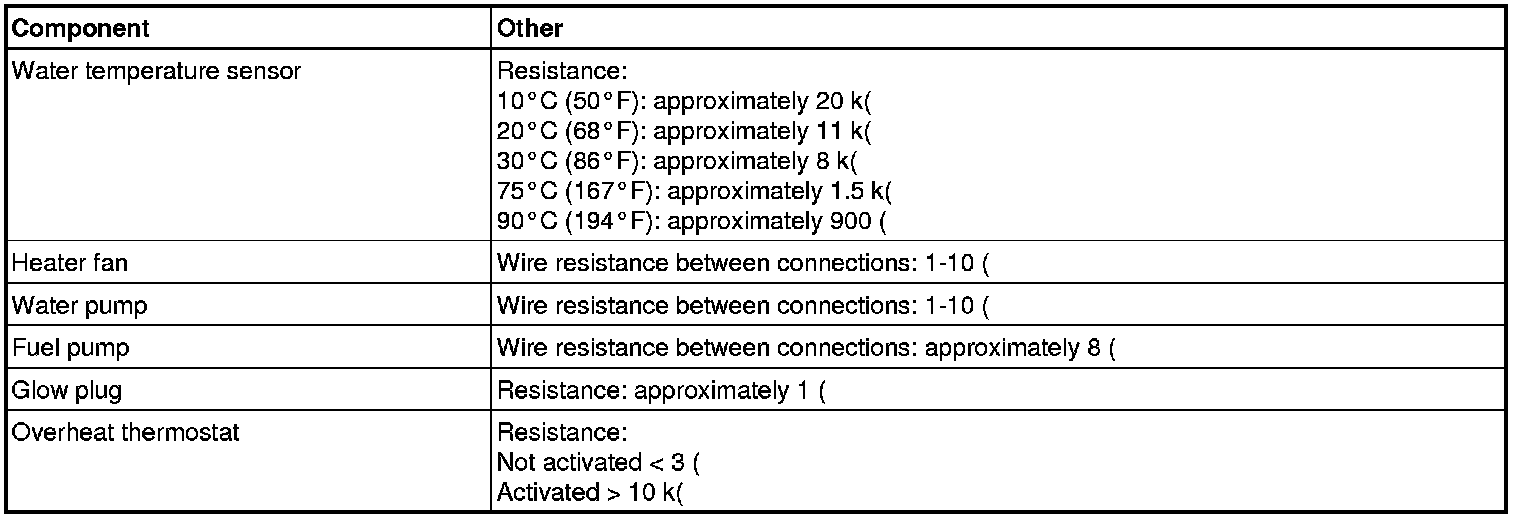

Components resistance values
Resistance values are given at +20°C (+68°F) unless otherwise stated.
