Central Electrical Unit, Engine Compartment, Replacing



Central Electrical Unit, Engine Compartment, Replacing

Removal

Remove:







- battery lead.
- central electrical unit fresh air intake.

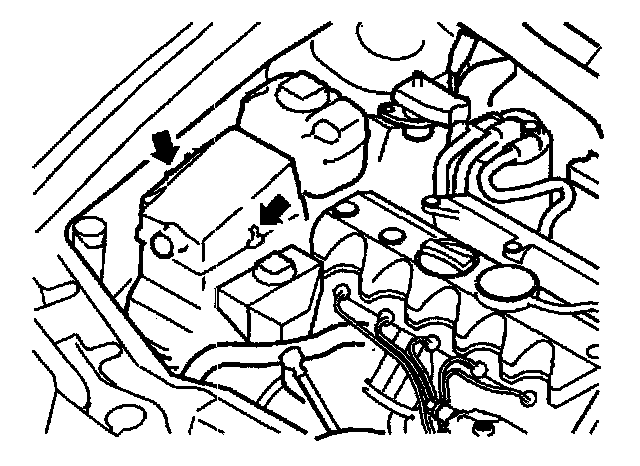

Cover

Remove:







- the 2 clips using a screwdriver and remove the cover
- the engine control module (ECM) and the transmission control module (TCM).

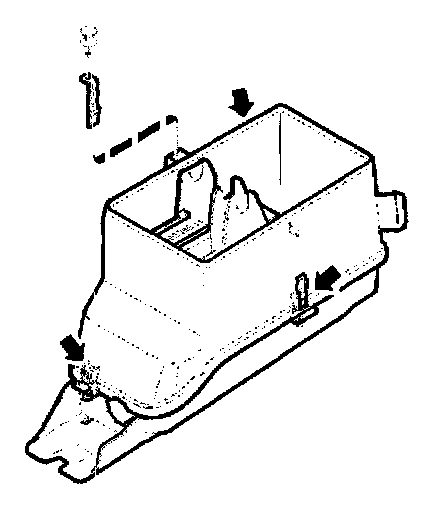

Intermediate section

Remove:







- the clips for the support and remove the clips and the support
- the three clips using a screwdriver and remove the intermediate section.

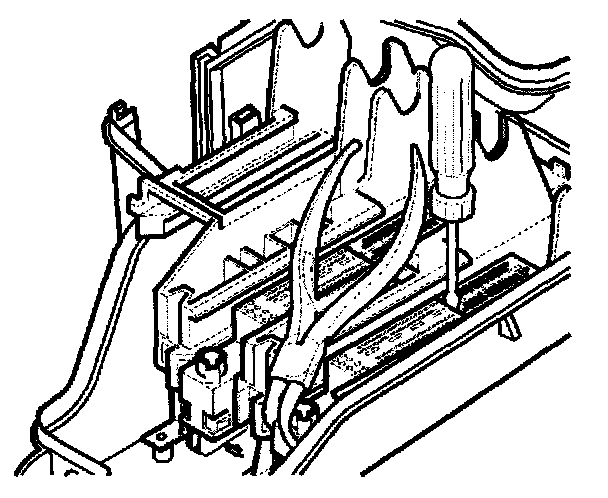

The connector with cable and cable protector







- Remove the retaining clip from the connector using a screwdriver
- Disconnect the connector by releasing the catches at the front edge using pliers. Pry out the connector using a screwdriver

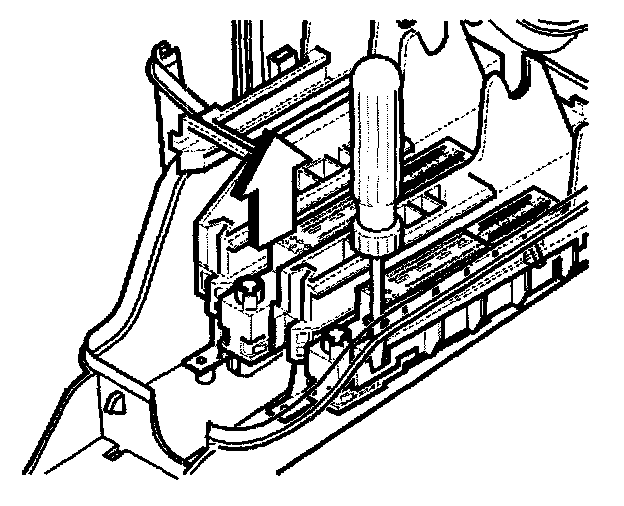

- Lift out the connector with the protection underneath and put it to one side.

Holder for the connector

Remove:







- the screws on the front edge
- the holder from the base section using a screwdriver
- holder with the cable lead in from the base section and push to one side.

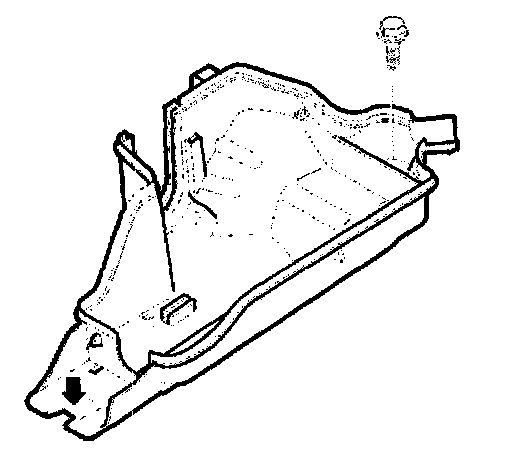

Base section

Remove:







- the screw from the rear edge
- front edge from the hook on the member and remove the base section.

Installation
- Install in reverse order.
