Control Assembly: Description and Operation

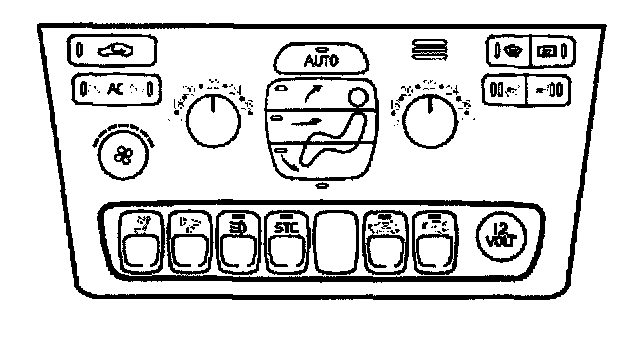

Switches, dashboard environment panel, (lower section)







Across the lower section of the dashboard environment panel there is a 12V socket and space for a maximum of seven switches.

Each switch has its own identity. This is unique for the relevant function. The switches can therefore be positioned in any location on the dashboard environment panel, as long as they are installed in the off position. They do not have to be in any particular order. However, the identity of the installed switches must correspond with the car configuration file so that they can be activated.

For further information regarding the car configuration file, see Design and Function, Downloading Software.

There are diagnostics for the switches.
